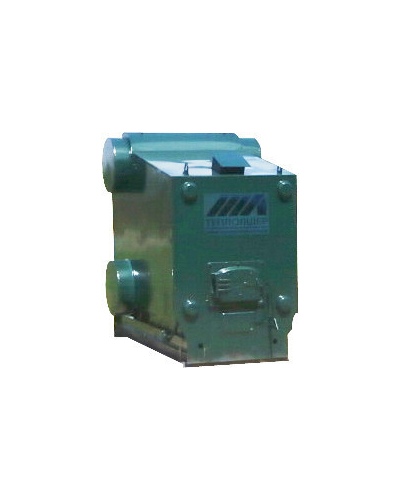

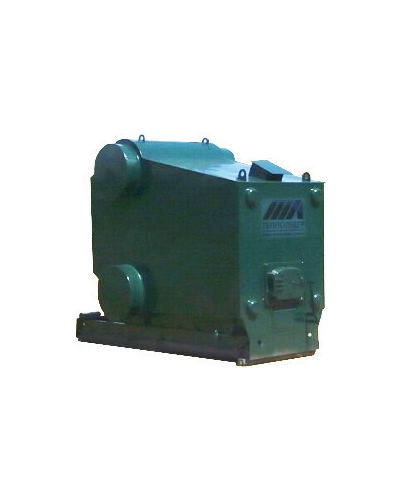

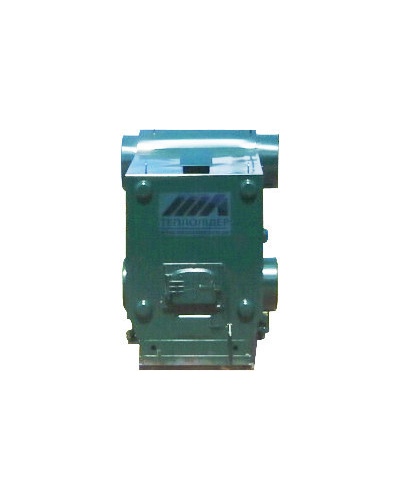

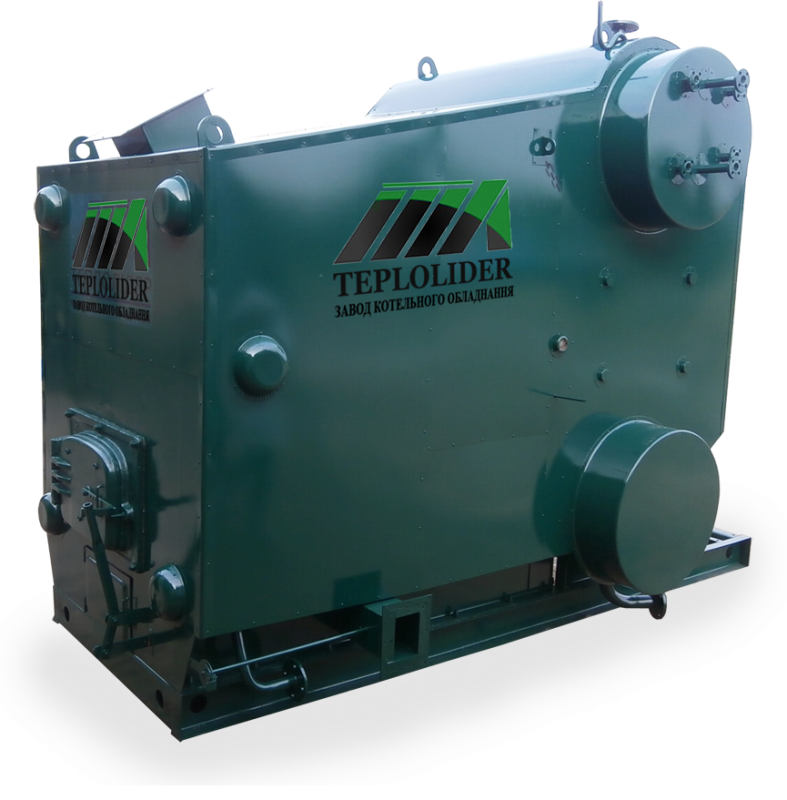

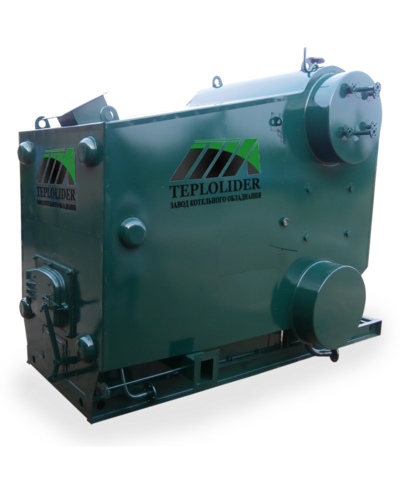

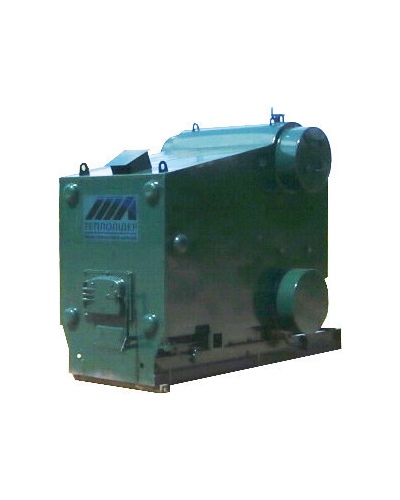

Steam boiler E-1.0-0.9 G-Z

Similar Products:
Article: 000019960

50000грн

In Stock

Order
in one click

Type of steam boiler: Industrial Nominal power: 1.0 (MW) Types of gas fuel: Liquefied, Natural Country of manufacture: Ukraine Width: 2350.0 (mm) Height: 2900.0 (mm) Current frequency: 50 (Hz) Weight: 4300 t Maximum temperature of the heat carrier: 175.0 (deg.) Steam output capacity: 1.0 (t/h) Length: 4200.0 (mm) Mains voltage: 220~240 V Warranty period: 24 (months) Minimum operating pressure: 1.0 (bar) Maximum operating pressure: 10.0 (bar) Minimum ambient temperature: 5.0 (deg.) Efficiency ratio: 94.0 (%) Maximum ambient temperature: 50.0 (deg.) Type of industrial boiler by structural features: Water tube Type of industrial boiler by fuel type: Gas Type of heat carrier: Superheated steam Type of industrial boiler by type of heat carrier: Steam

Reviews: 0
Warranty:specify
Warranty Terms
Why Kotel-Prom?

  • All products are certified

  • Quality first

  • Return within 14 days

  • Warranty on all products

Delivery options:

  • Self-pickup(map)

  • Courier delivery in Kharkiv

  • Delivery across Ukraine

Payment methods

  • Cash on delivery

  • Non-cash payment

  • Bank transfer to card

  • Bank transfer to current account

The E-1.0-0.9 G-Z steam boiler is used by enterprises to generate steam above saturated steam. This boiler model operates on gas. The boiler is equipped with a burner that heats the heat exchanger when the gas is burned.

The E-1.0-0.9 G-Z steam boiler has two drums located at the top and bottom of the boiler. These drums are connected by a tube bundle. The pressure difference between the drums allows natural water circulation within the boiler. Steam is generated in the upper drum and is diverted for consumption. Direct combustion of the fuel occurs in the firebox, which is located at the front of the boiler. An afterburner chamber is located behind the firebox to maximize thermal energy transfer to the heat exchanger, increasing boiler efficiency. To further enhance efficiency, an economizer is used, which heats the feedwater using exhaust gases.

The steam boiler E-1.0-0.9 G-Z is supplied as a single block in casing and with a complete set.

The name is still
Key words: Steam boiler E-1, 0-0, 9 G-3, steam boiler, steam boilers, boiler e, e 1/9, steam e, steam solid fuel boiler, E 1 - 9, industrial boilers, Industrial boilers, Heating and water heating
Country of origin: Ukraine
Weight: 4300 t
Height: 2900.0 (mm)
Width: 2350.0 (mm)
Warranty period: 24 (months)
Mains voltage: 220~240 V
Nominal power: 1.0 (MW)
Efficiency: 94.0 (%)
Maximum working pressure: 10.0 (bar)
Maximum ambient temperature: 50.0 (deg.)
Current frequency: 50 (Hz)
Minimum ambient temperature: 5.0 (deg.)
Length: 4200.0 (mm)
Minimum working pressure: 1.0 (bar)
Industrial boiler type by fuel type: Gas
Type of industrial boiler by type of coolant: Steam
Type of industrial boiler by design features: Water-tube
Type of coolant: Superheated steam
Steam boiler type: Industrial
Steam capacity: 1.0 (t/h)
Maximum coolant temperature: 175.0 (deg.)
Types of gas fuel: Liquefied, Natural
