Transportable steam boiler unit TKU-2.8

The TKU-2.8 transportable boiler house operates in steam mode and has a steam capacity of 3.2 tons per hour. The TKU-2.8 boiler house can simultaneously generate steam and hot water for heating.

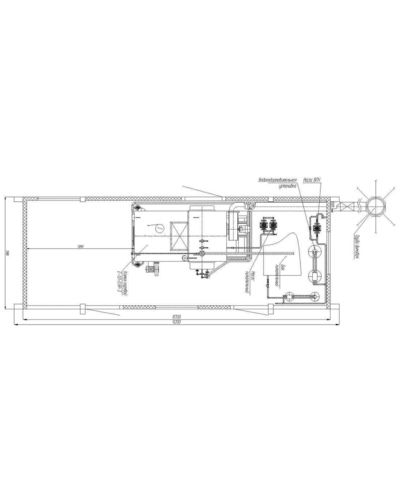

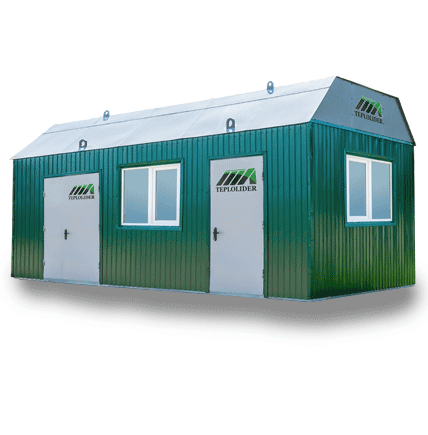

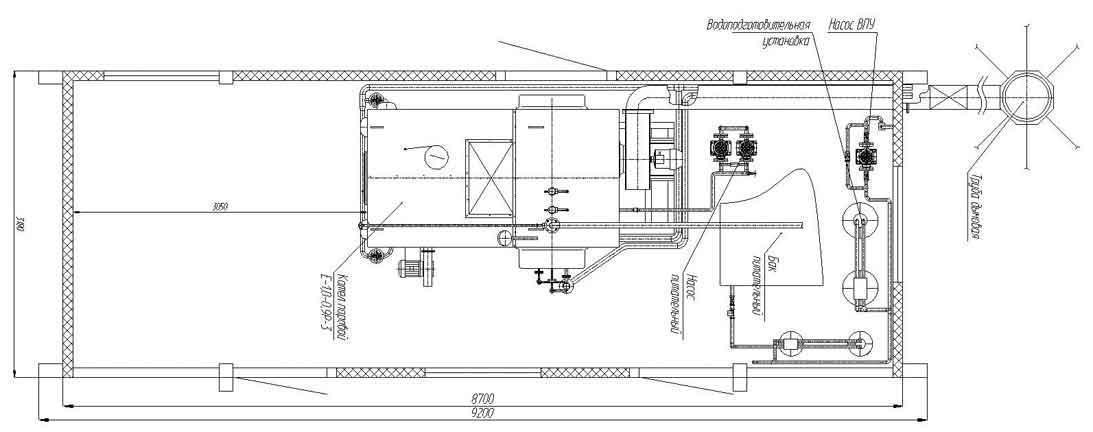

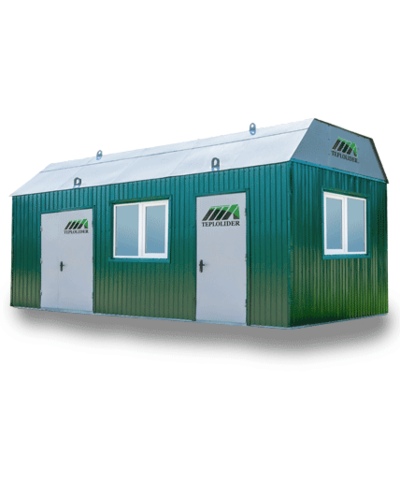

The TKU-2.8 transportable boiler house is a thermally insulated box housing two E-1.6-0.9 boilers, a water treatment system, pumps, automation system, and instrumentation. A flue gas stack and ash collector are located outside. The box is made of sheet steel with a removable roof for easy maintenance or replacement of boiler equipment. All windows open inward, and the doors open outward.

Transportable boiler houses operate on liquid or gaseous fuel, depending on the model of the installed boilers.

Technical characteristics of the transportable steam boiler

Key words: Steam transportable boiler plant TKU-2, 8, Transportable boiler plant, transportable boiler plant, boiler plant, steam boiler plant, steam boiler plant, block-
Country of origin: Ukraine
Height: 3450.0 (mm)
Width: 3700.0 (mm)
Warranty period: 24 (months)
Efficiency: 94.0 (%)
Maximum working pressure: 8.0 bar
Current frequency: 50 Hz
Length: 9200.0 (mm)
Types of liquid fuel: Fuel oil, waste oil, diesel, heating oil
Industrial boiler type by fuel type: Solid fuel
Type of industrial boiler by type of coolant: Steam
Type of coolant: Superheated steam
Type of industrial boiler by design features: Water-tube
Steam capacity: 3.2
Steam boiler type: Industrial
Maximum coolant temperature: 175.0 degrees.
Types of gas fuel: Petroleum, Liquefied, Natural, Other non-aggressive gases

Name	TKU-2.8
Number of boilers, pcs.	2
