Steam boiler KP-300 on solid fuel

The KP-300 solid fuel boiler has a steam output of up to 300 kilograms per hour. Coal, wood, straw, and waste from wood processing and agricultural enterprises can be used as fuel.

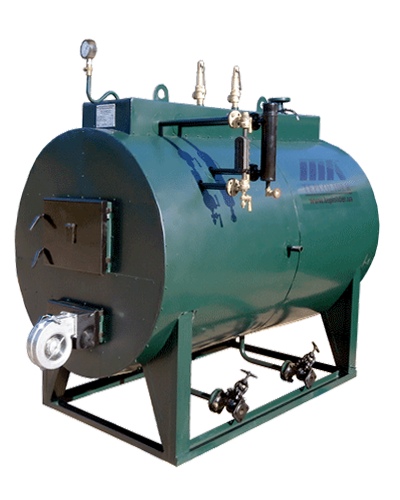

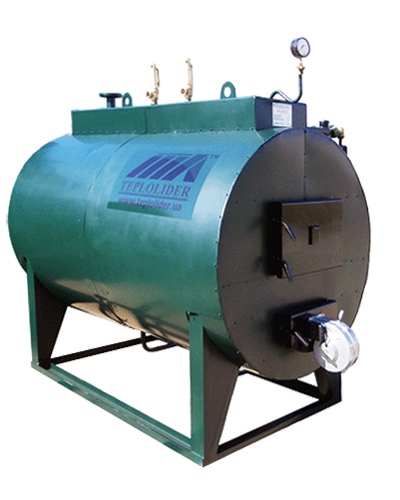

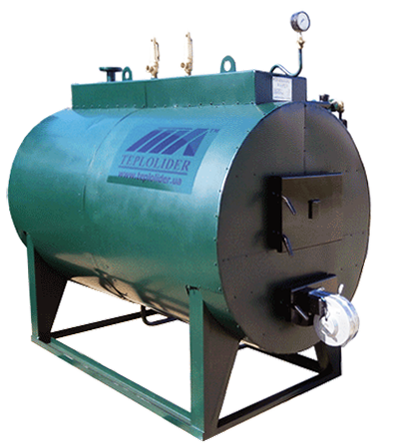

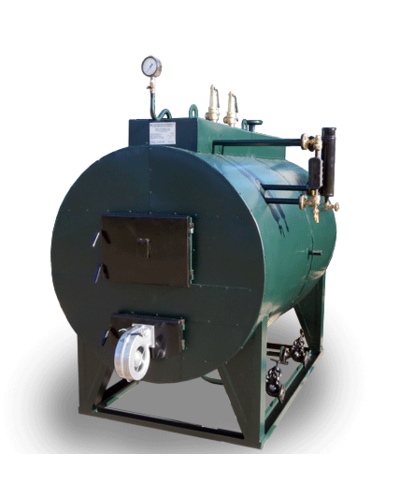

The KP-300 steam boiler is a horizontal cylindrical unit with a large firebox surrounded by a water jacket, a convection tube bundle behind the firebox, an ash collector at the bottom, and a steam collector at the top. A solid fuel loading hatch with a blower fan is located at the front of the boiler. To improve heat transfer, a combustion chamber for combustible gases is located behind the firebox. During combustion, all thermal energy is transferred to the convection tube bundle, which forms an additional jacket. This quickly heats the water and generates steam in the boiler's steam collector. Steam at a pressure of up to 0.07 MPa is discharged from the boiler through steam outlet pipes. Flue gases are discharged through a chimney at the rear of the boiler.

The KP-300 steam boiler is produced together with boiler automation, which controls the weight
Key words: Steam boiler KP-300 on solid fuel, steam boiler, solid fuel boiler, KP 300, steam boiler KP, solid fuel boiler, solid fuel boiler KP, Steam solid fuel boiler, steam boiler
Country of origin: Ukraine
Weight: 1100 t
Height: 1960.0 (mm)
Width: 1450.0 (mm)
Warranty period: 24 (months)
Mains voltage: 220~240 V
Nominal power: 300.0 (MW)
Efficiency: 85.0 (%)
Maximum working pressure: 7.0 (bar)
Power consumption: 1000.0 (W)
Current frequency: 50 (Hz)
Length: 2750.0 (mm)
Types of solid fuel: Brown coal, Pellets, Bark, Anthracite, Oil shale, Sawdust, Coal, Straw, Husks, Sunflower husks, Peat, Coke, Firewood, Briquettes, Wood chips, Buckwheat husks
Industrial boiler type by fuel type: Solid fuel
Type of industrial boiler by type of coolant: Steam
Type of industrial boiler by design features: Water-tube
Type of coolant: Superheated steam
Steam boiler type: Industrial
Steam capacity: 0.3 (t/h)
Maximum coolant temperature: 115.0 (deg.)
