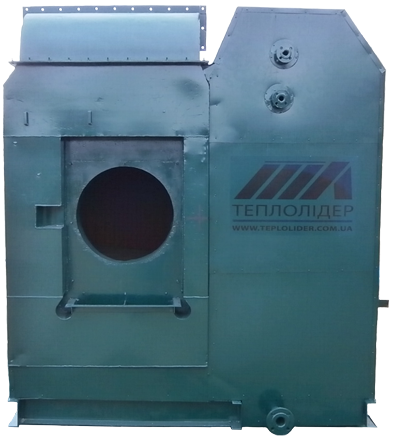

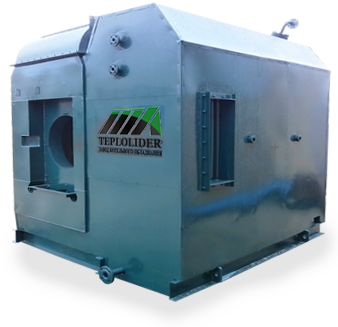

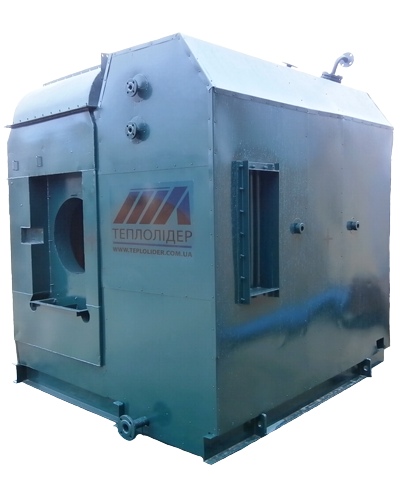

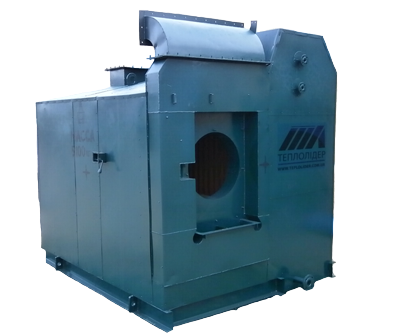

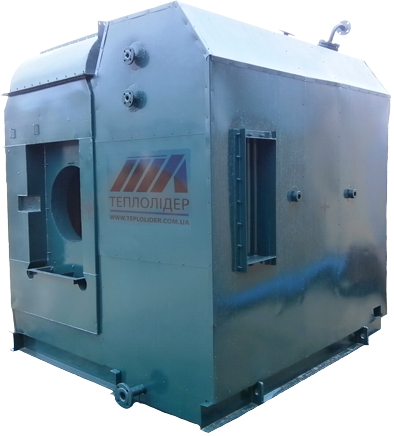

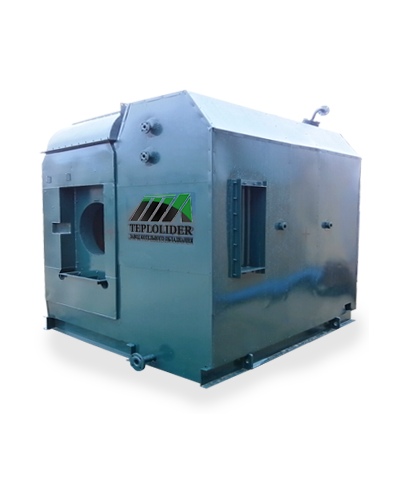

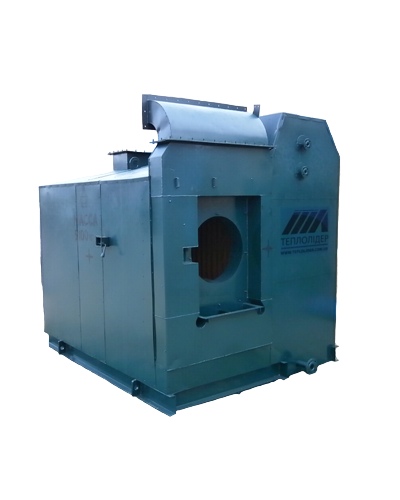

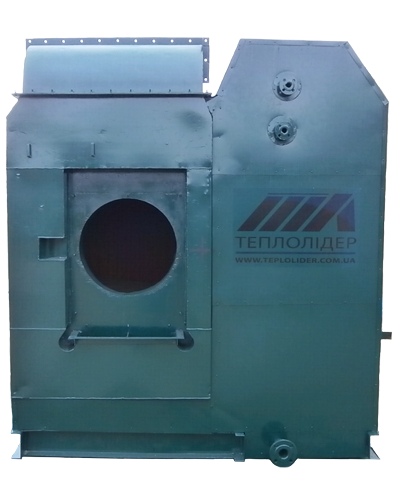

Steam boiler E-1.6-0.9 on gas

The E-1.6-0.9 GMN steam boiler is used by enterprises to generate steam above saturated steam. The boiler's operating steam pressure is 0.8 MPa with a temperature of 174.5 ^° C, and its nominal steam capacity is at least 1.6 tons of steam per hour. This boiler model operates on liquid fuel or gas. The steam boiler is equipped with a gas burner, which heats the heat exchanger during fuel combustion.

The E-1.6-0.9 GMN steam boiler has two drums located at the top and bottom of the boiler. These drums are connected by a tube bundle. The pressure difference between the drums allows for natural water circulation within the boiler. Steam is generated in the upper drum and is diverted for consumption. Direct fuel combustion occurs in the furnace, which is located at the front of the boiler. An afterburner chamber is located behind the furnace to maximize thermal energy transfer to the heat exchanger, increasing boiler efficiency. To further enhance efficiency, an economizer is used, which heats the feedwater using exhaust gases.
Key words: Steam boiler E-1, 6-0, 9 on gas, steam boiler, boiler, boilers, steam boilers, boiler E 1 6, boiler E 1/6, boiler E 1-6, steam boiler e, boiler e 1, industrial boilers, Industrial boilers, Heating and
Country of origin: Ukraine
Weight: 5100 t
Height: 2900.0 (mm)
Width: 2450.0 (mm)
Warranty period: 24 (months)
Mains voltage: 220~240 V
Nominal power: 1.6 (MW)
Efficiency: 94.0 (%)
Maximum working pressure: 8.0 (bar)
Power consumption: 7.5 (W)
Current frequency: 50 (Hz)
Length: 4200.0 (mm)
Types of liquid fuel: Fuel oil, Waste oil
Industrial boiler type by fuel type: Dual-fuel
Type of industrial boiler by type of coolant: Steam
Type of industrial boiler by design features: Water-tube
Type of coolant: Superheated steam
Steam boiler type: Industrial
Steam capacity: 1.6 (t/h)
Maximum coolant temperature: 175.0 (deg.)
Types of gas fuel: Liquefied, Natural
