Wilo Star RS 25/6-180mm gray circulation pump

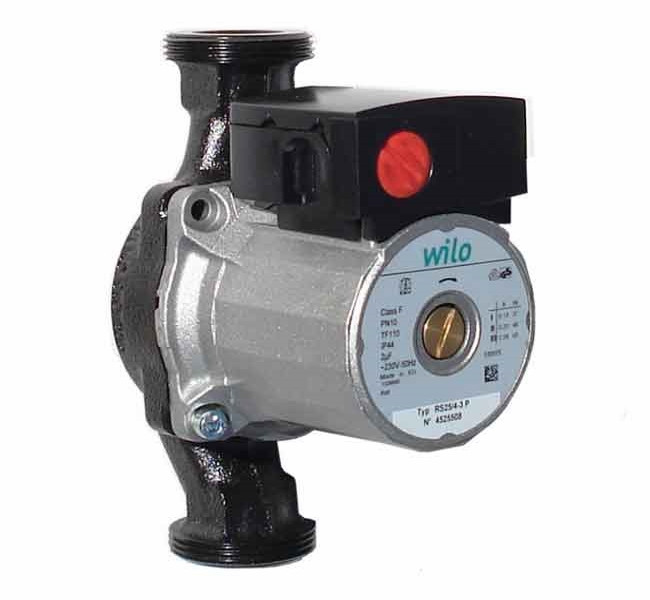

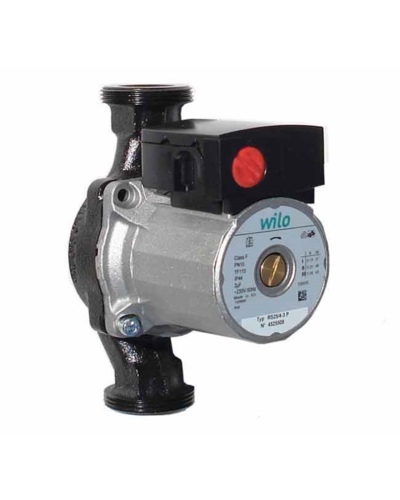

Wilo Star-RS 25/6-180 circulation pump

The Wilo Star-RS 25/6-180 circulation pump is equipped with a wet rotor. This pump is used in hot water heating systems. The Wilo Star-RS 25/6-180 pump is suitable for industrial and residential applications. Its special design and rated power significantly reduce energy costs (up to 70%).

To accurately and precisely regulate the power of the Wilo circulation pump, several speed levels are available. This allows for more precise water pumping. A special button on the Wilo Star-RS 25/6-180 pump serves as an emergency stop.

Nominal operating temperature of the Wilo Star-RS 25/6-180 pump
Keywords: Wilo Star RS 25/6-180mm grey circulation pump, Wilo pumping equipment, Wilo circulation pumps, Pumping equipment, Circulation pumps, household pumps, submersible borehole pumps, b
Brand: Wilo
Maximum pressure: 6 m
Connection type: 1”
Maximum working pressure: 10 bar
Maximum ambient temperature: 40°C
Water quality: Clean
Material: Cast iron
Voltage: 230V/50Hz
Pump installation: Horizontal
Purpose: Heating
Protection class: IP44
Performance: 67 l/min
Pump location: Surface
Motor power: 84 W
Rotation speed: 2480 / 2750 / 2840 rpm
Minimum water temperature: 1 °C
Maximum water temperature: 110°C
Current consumption: 0.20 / 0.28 / 0.36 A
Installation type: Vertical

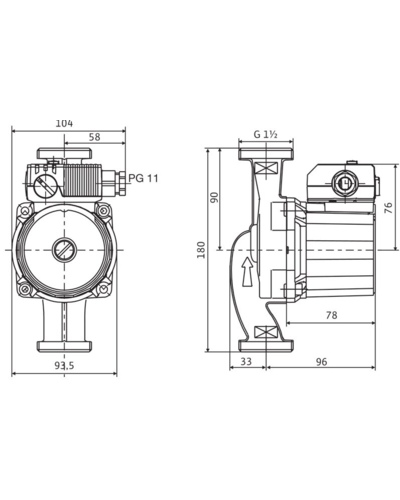

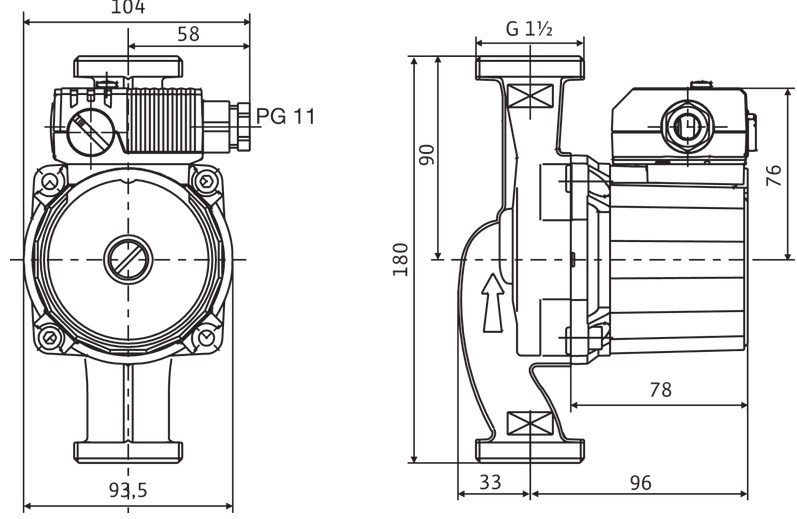

Installation length: 180 mm
Maximum capacity: 4.4 m3/hour
