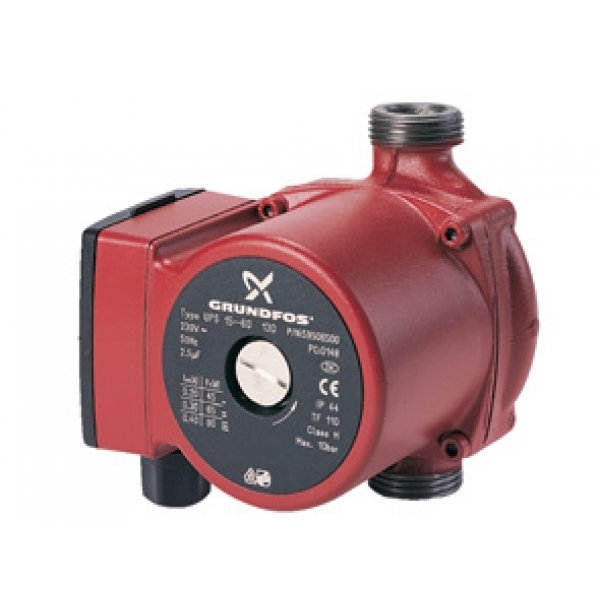

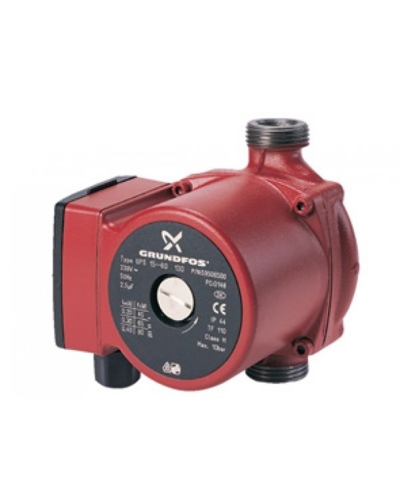

GRUNDFOS UPS 25-40 130

GRUNDFOS UPS 25-40 130

The GRUNDFOS UPS 25-40 130 pump is designed for pumping working fluids in single- and two-pipe open and closed heating systems in single-story homes, with a total working fluid volume of up to 1 m³. The permissible glycol content in the working fluid is up to 50%. The GRUNDFOS UPS 25-40 130 circulation pump has three power modes for maximum heating system efficiency. The GRUNDFOS UPS 25-40 130 has a short 130 mm base, ensuring trouble-free installation, especially if the pump is purchased for installation inside a boiler.

GRUNDFOS UPS 25-40 13 0 circulation pump motors
Asynchronous with squirrel-cage "wet" rotor.
Speed 2850 rpm.
Single-phase voltage 1x220V - 50Hz.
Design of GRUNDFOS UPS 25-40 130 circulation pumps
The body of the GRUNDFOS UPS 25-40 130 circulation pump is made of cast iron.
The shaft is made of metal ceramics.
