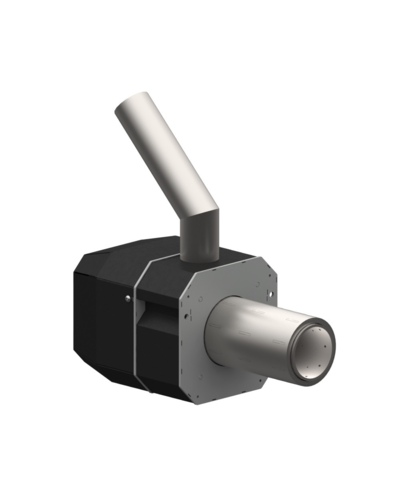

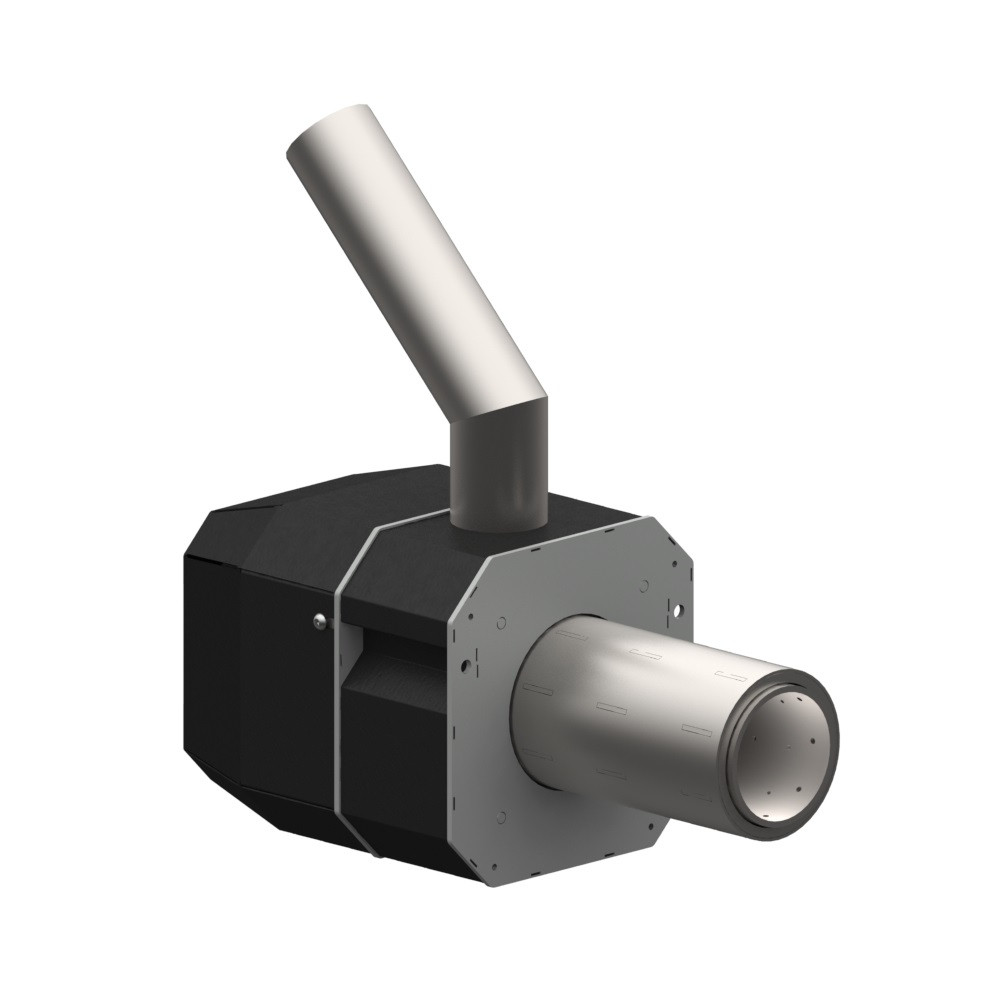

Pellet burner KIPI 26 kW

Automatic burner KIPI 26 kW

A burner with automatic fuel feed is a highly efficient device designed for burning fuels such as pellets (6-8 mm), sunflower shells, and fine-grained coal.

This burner utilizes innovative technologies that enable it to self-clean from various sludge and ash. This solution ensures trouble-free operation and extends its service life.

Advantages of the KIPI automatic burner

• operation without burner maintenance
• the possibility of burning low-quality pellets
• guarantee of operation at the specified burner power
• combustion without constant point loading of the grate
• convenience (the burner does not require cleaning)

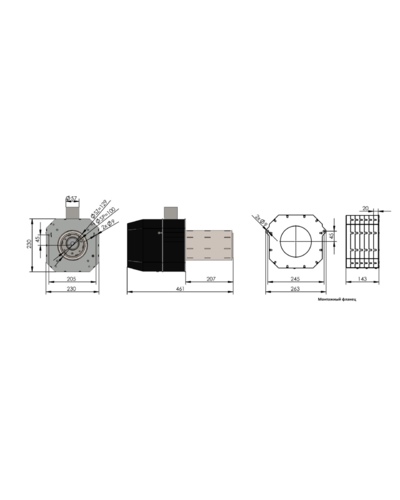

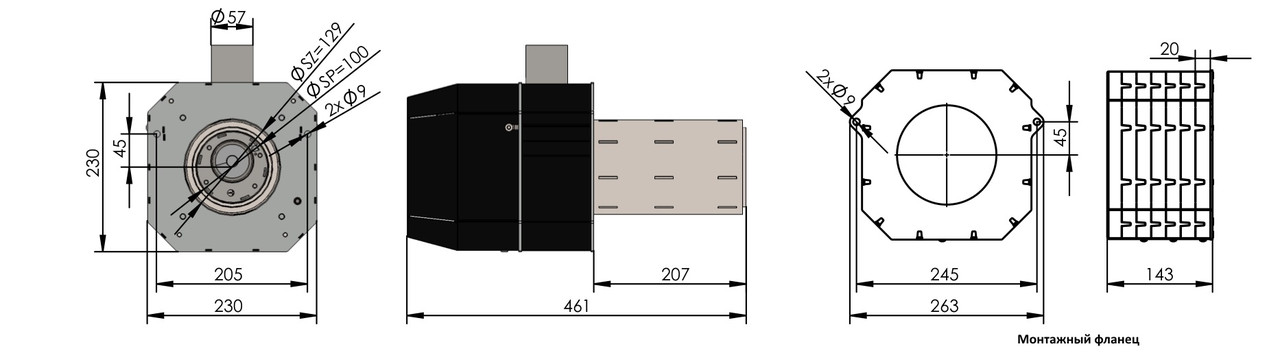

Design of the KIPI pellet burner
Keywords: KIPI 26 kW pellet burner, KIPI pellet boilers, KIPI pellet burners, Pellet boilers, Pellet burners, components for heating equipment, spare parts for heating equipment,
Brand: KIPI
Voltage: 230 V AC / 50 Hz (6 A)
DHW pump control: Yes
Power range: 6-26 kW
Main type of fuel: pellets 6-8 mm, granules 5-10 mm
Average power consumption: 25 W
Ignition power consumption: 150 W
Burner power adjustment: (5 – 100%)
Weather controller control: Yes (optional)
Control: Yes, controller (PLUM)
Pipe: Yes, Ø 60 x 750 mm
Pellet feeder: Yes, Ø 60 x 1850 mm
Control with room thermostat: Yes
Central heating pump control: Yes
Combustion chamber length: 207 mm
Mounting diameter: 135 mm
Outer chamber diameter: 129 mm
Firebox diameter: 100 mm
