Pellet burner Pancerpol 25 kW TRIO

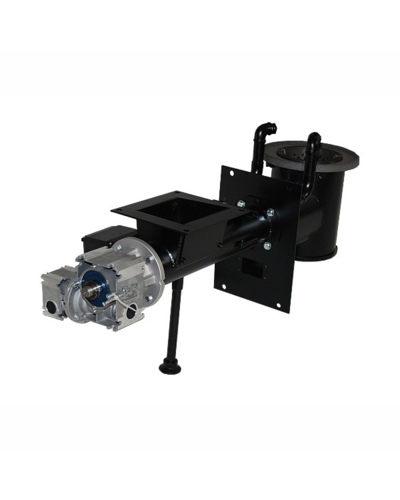

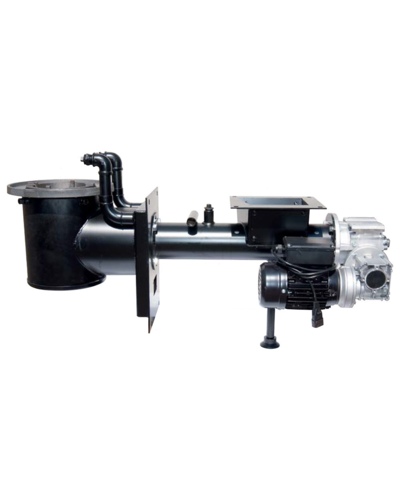

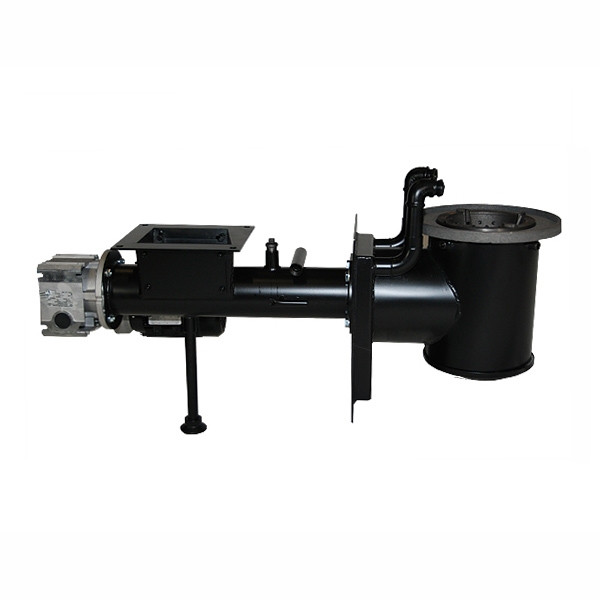

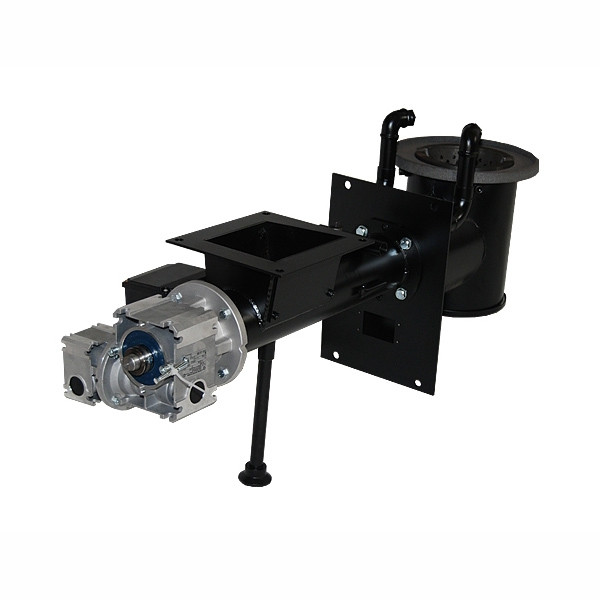

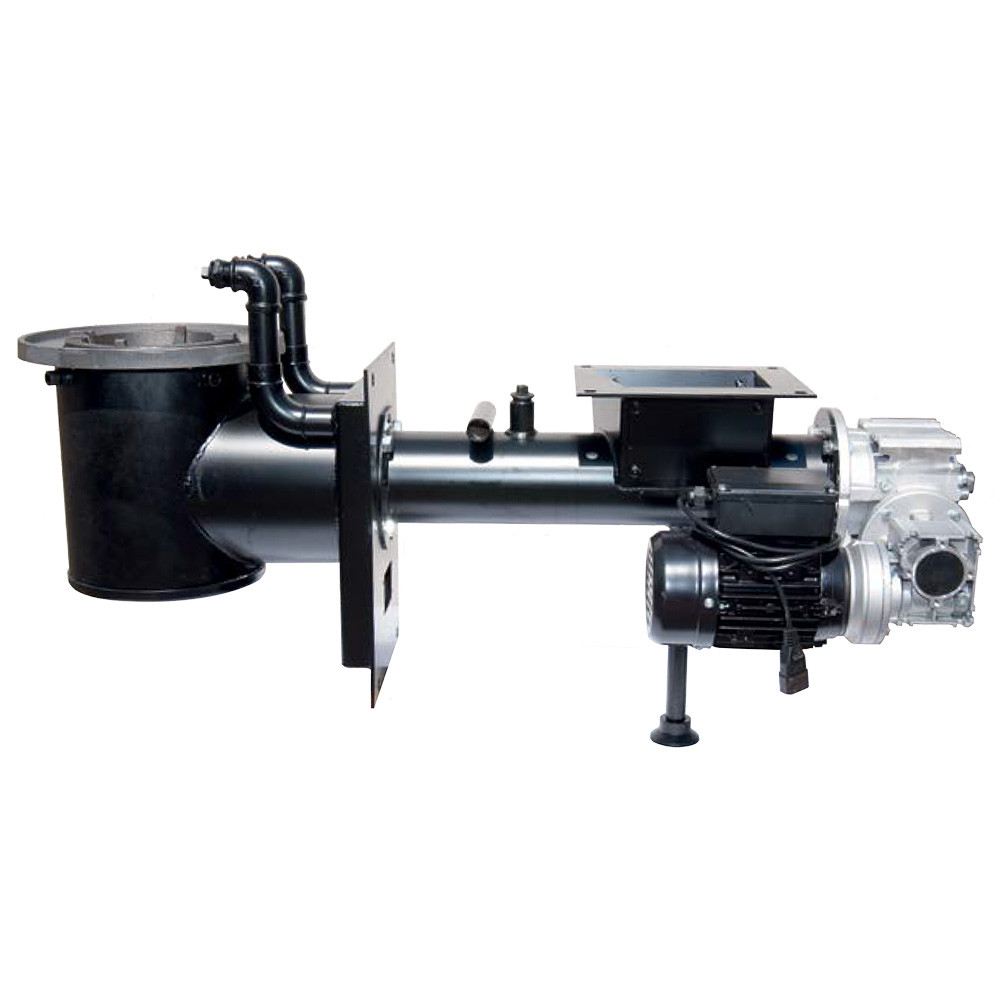

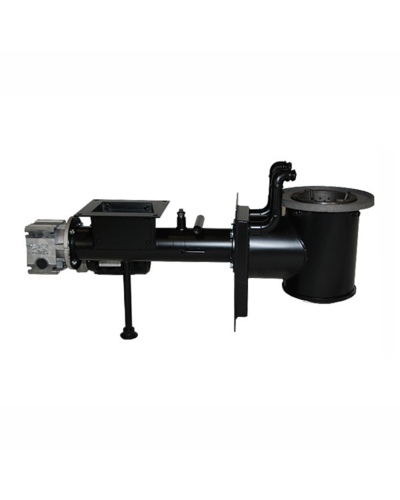

Automatic burner Pancerpol TRIO 25 kW

The TRIO burner with automatic solid fuel feed and a power of 25 kW is designed to burn two main types of fuel (fractional coal 5-35 mm, coal dust), and can also burn biomass such as pellets while maintaining high combustion efficiency.

Primary air is supplied from the air chamber through openings in the crown, and secondary air is supplied during pellet combustion through nozzles that are part of the air chamber.

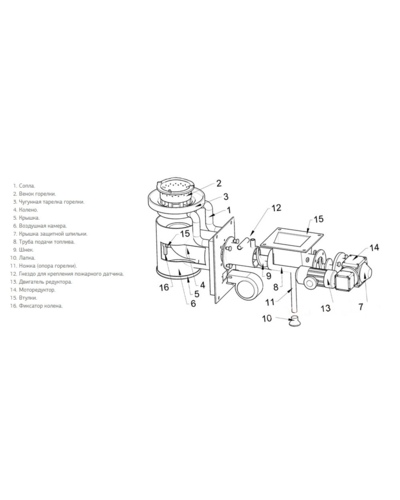

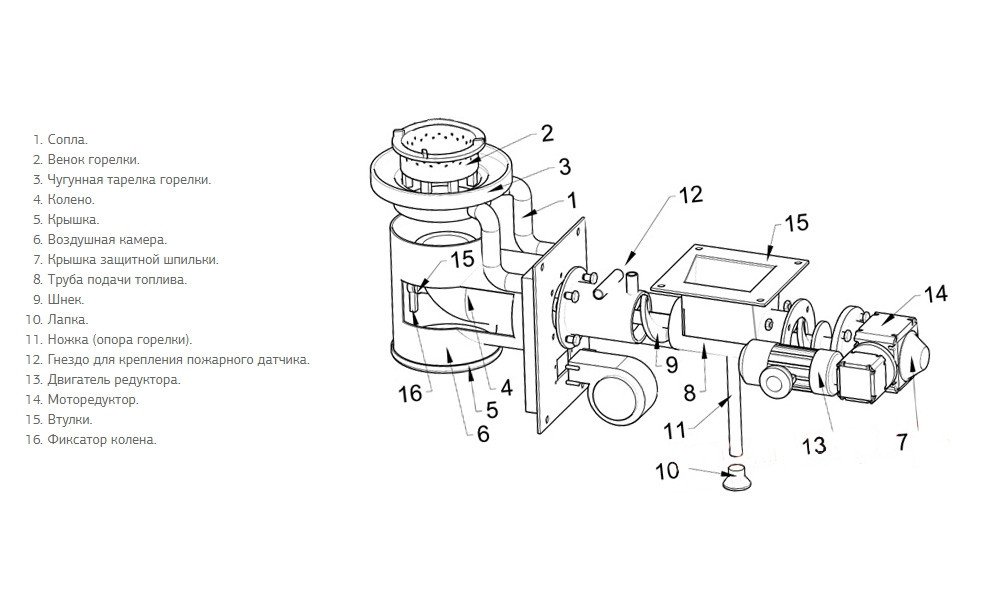

Design of the automatic burner type "TRIO"

1. Deflector
2. Firebox plate
3. Firebox wreath
4. Knee
5. Lid
6. Air chamber

Keywords: Pellet burner Pancerpol 25 kW TRIO, Pellet boilers Pancerpol, Pellet burners Pancerpol, Pellet boilers, Pellet burners, components for heating equipment, spare parts for heaters
Weight: 105 kg
Brand: Pancerpol
Voltage: 230 V AC / 50 Hz
Power: 25 kW
Power range: 25 kW
Main type of fuel: coal, pellets, fines
Material of crowns, bowls and knees: cast iron
Maximum coal fraction size: up to 30 mm
Ash melting point (pour point): not less than 1250C
Ash content: up to 15%
Maximum fuel moisture: up to 10%
Maximum amount of fines in coal: up to 20%
