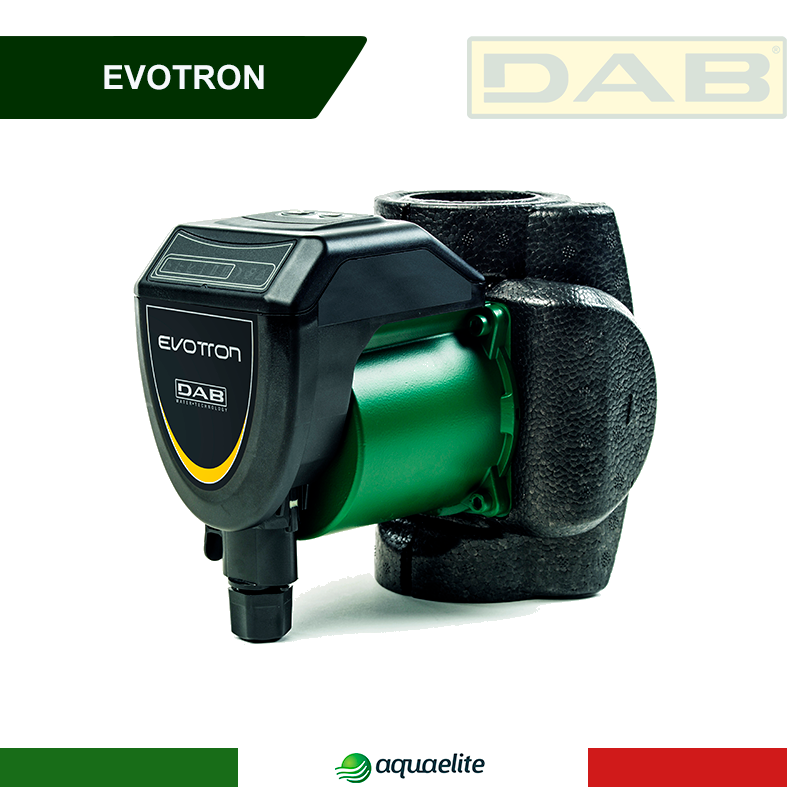

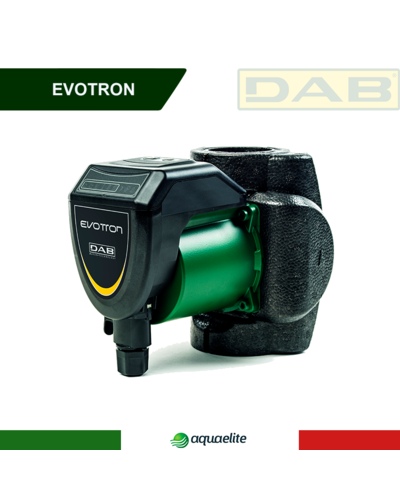

DAB Evotron 80/180 Heating System Pump

Designed specifically for individual heating systems.

Hydraulic body - cast iron, impeller - technopolymer, rotor - ceramic, seal - EPDM.

The pump is equipped with a highly efficient, permanent-magnet synchronous motor with electronic control. A "night mode" for low-power operation is supported. Single pumps are supplied with thermal insulation for the pump housing, and all pumps are equipped with electrical connections.

• Performance - from 0.4 to 8.2 cubic meters/hour, pressure - up to 6.5 m.v.s.
• Maximum working pressure: 10 bar
• Pumped liquid: Composition: clean, free of solids and mineral oils, non-viscous, chemically neutral, with properties similar to water. Temperature: -10 to +110°C.
• Standard power supply: 1x230V
• Protection class: IP 44
• Insulation class: F

&n
Keywords: Heating pump, heating pumps, heating circulation pump, circulation pumps for heating systems, heating pump, heating system pump, VA circulation pump, pump
Country of origin: Italy
8 months
24: cubic meters/hour
220~240V: W
