GRUNDFOS UPA 15-90 160

GRUNDFOS UPA 15-90 160

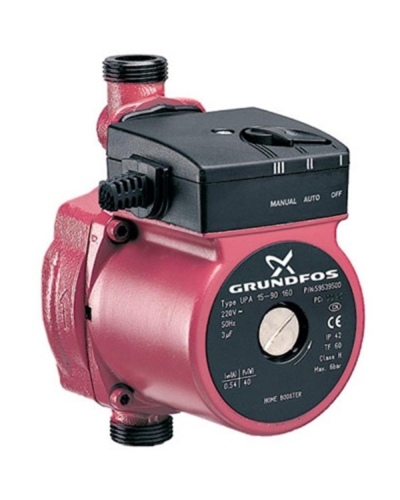

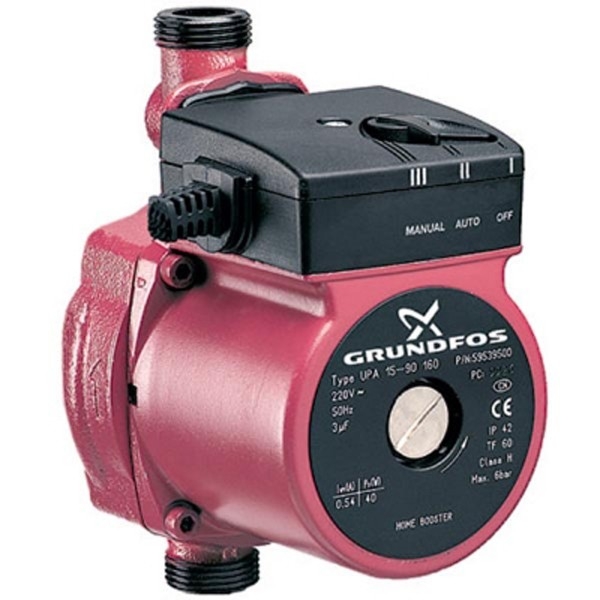

The Grundfos UPS 15-90 circulation pump is a compact booster pump with a cast iron housing and an internal anti-corrosion coating. The wet-rotor motor is separated from the stator by a stainless steel protective sleeve. The pump's operating mode is selected using a switch on the terminal box.

Technical specifications:
Electrical power 118 W
Maximum capacity 1.5 m3/hour
Connection 230V / 50Hz / 1 phase
Current 0.54 A
Connection G 3/4"
Max. pressure 8 m
Noise level < 35 dB

Distinctive features:
wet rotor
manual/automatic mode
low noise level
built-in flow relay
compactness
convenient installation
long service life

Advantages:
In automatic mode, the sealless pump switches on and off automatically (when opening
