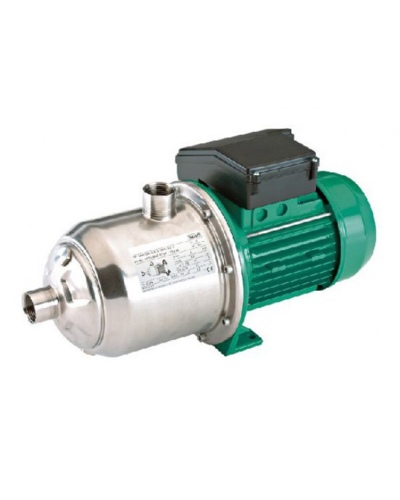

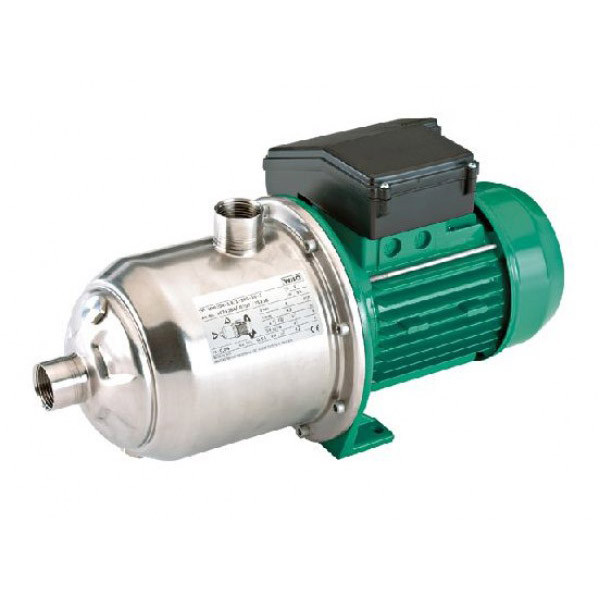

Wilo Economy MHI 804-1/E/3-400-50-2 Pressure Booster Pump

Wilo Economy MHI 804-1/E/3-400-50-2 Pressure Booster Pump

Multistage, normal-suction, horizontal, high-pressure, centrifugal pump, block-type with a horizontal suction and vertical discharge port. All parts in contact with the pumped medium, such as the pump sections, impellers, drive wheels, and pot-shaped casing, are made of stainless steel.

Technical characteristics of Wilo Economy pressure booster pumps

The pump is equipped with a compact design and has a through pump shaft of the electric motor, which is independent
Keywords: Wilo Economy MHI 804-1/E/3-400-50-2 pressure booster pump, Wilo pumping equipment, Wilo surface pumps, Pumping equipment, Surface pumps, household pumps, submersible borehole pumps
Brand: Wilo
Maximum head: 48 m
Maximum working pressure: 10 bar
Maximum ambient temperature: 40°C
Water quality: Clean
Material: stainless steel
Purpose: Heating, drinking, industrial water
Connection: Rp 1
Protection class: IP X4
Pump location: Surface
Rotation speed: 2900 rpm
Minimum water temperature: -15 °C
Maximum water temperature: 110°C
Current consumption: 6.4 A / 3.7 A
Pump weight: 19.1 kg
Maximum flow: 12 m3/hour
Motor power: 1.5 kW
