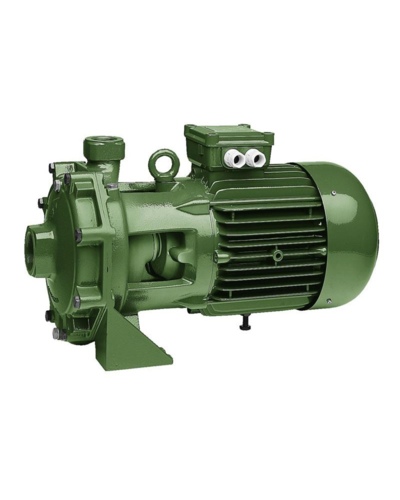

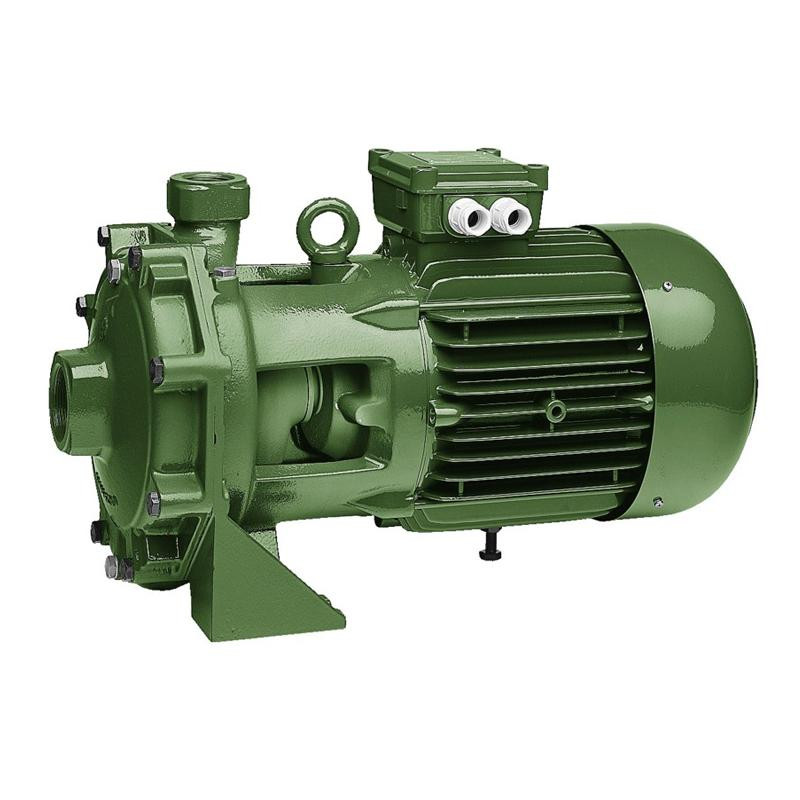

Block pump DAB K14/400M (Italy)

Block pump DAB K14/400M (Italy)

Purpose: DAB K single impeller centrifugal pumps are designed specifically for domestic, public, industrial and agricultural installations and irrigation systems.

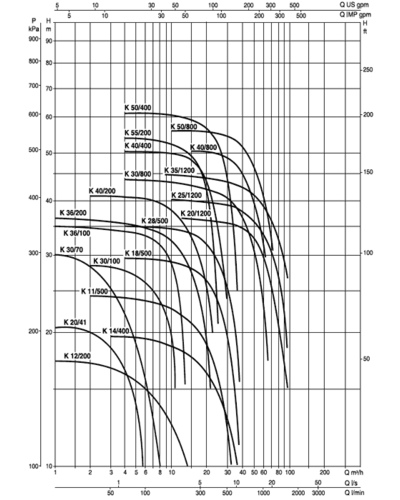

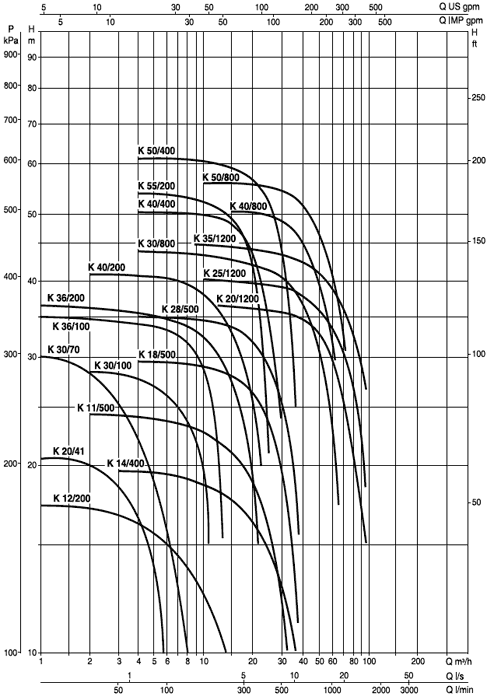

Operating range: capacity - from 0.3 to 96 m3/h, pressure - up to 62 m of water column.

Maximum working pressure: for K 20/41, K 30/70, K 30/100, K 36/100, K 12/200, K 14/400 - 6 bar, for K 36/200, K 40/200, K55/200, K11/500, K 18/500, K 28/500 - 8 bar, for K 40/400, K 50/400, K 30/800, K 40/800, K 50/800, K 20/1200, K 25/1200, K 35/1200 - 10 bar.

Pumped liquid. Composition: clean, free of solid inclusions and mineral oils, non-viscous, chemically neutral, similar in characteristics to water. Temperature: for K 20/41, K 30/70, K 30/100, K36/100, K12/200, K 36/200, K 40/200 - from -10°C to +50°C, for the rest - from -15°C to +110°C.


Keywords: DAB K14/400M block pump (Italy), pump, DAB pump, DAB K pump, centrifugal cantilever pump, industrial pumps, pumps for heating and water supply, pumps for heating, K14/400M, K 14/400 M
Brand: DAB
Country of origin: Italy
Maximum head: 19.0 m
Capacity: 36.0 cubic meters/hour
Mains voltage: 220~240 V
Power consumption W: 2.1 kW
Current frequency: 50 Hz
Pumped media: Clean water
Pump installation: Horizontal
Minimum working fluid temperature: -15.0 degrees.
Maximum working fluid temperature: 110.0 degrees.
Maximum ambient temperature: 40.0 degrees.
Number of speeds: 1.0 pcs.
Body material: Cast iron
Rotor type: "Dry"
Connection type: Coupling
Weight: 24.5 kg
