Solar collector Hewalex VARISOL HP90 20

Solar collector Hewalex VARISOL HP90 20

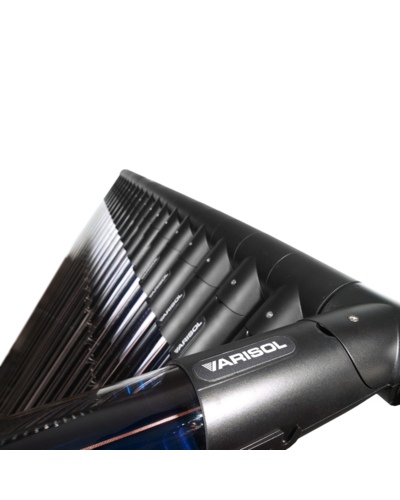

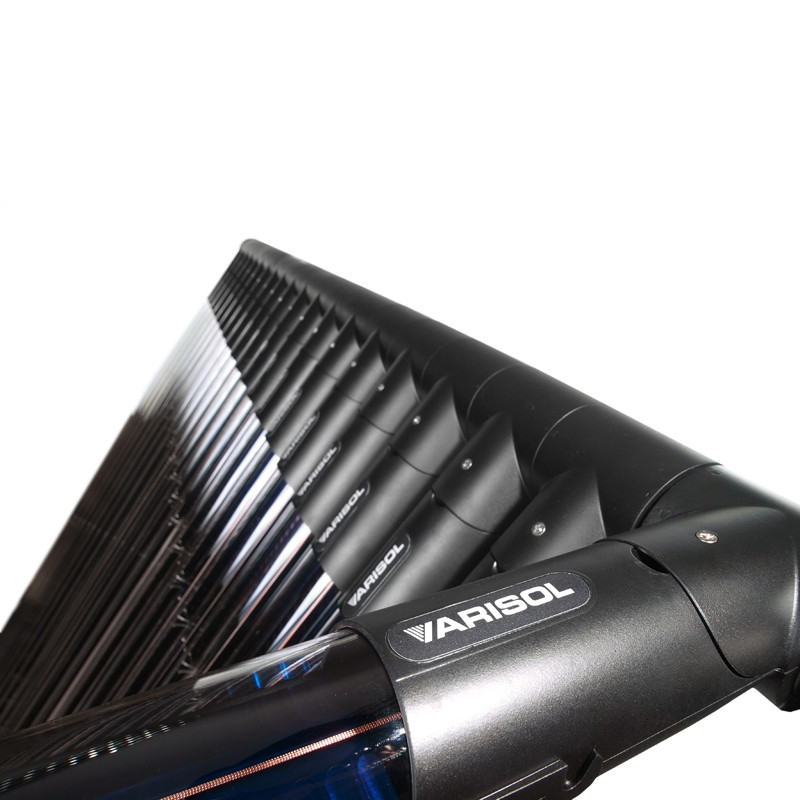

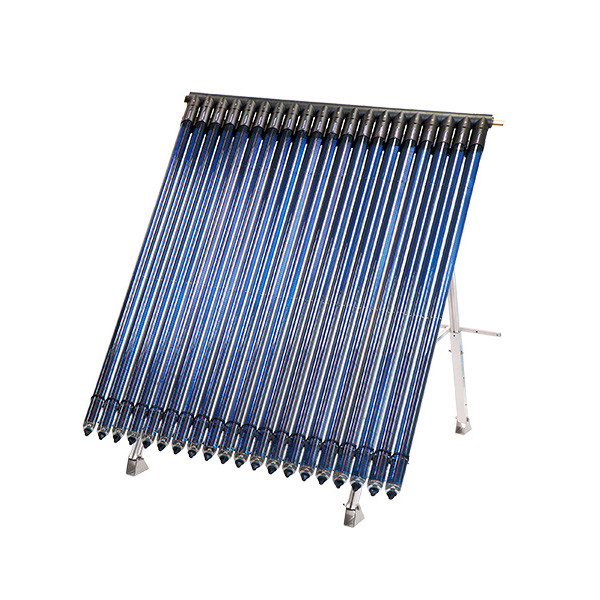

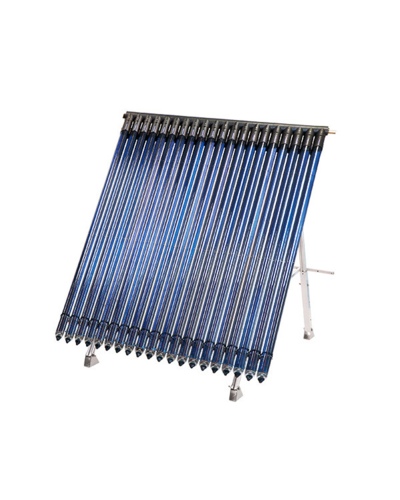

Varisol HP90 20 evacuated tube solar collectors represent the premium segment of solar collectors, being among the most powerful units of this type on the market. The use of single-wall Heat Pipe evacuated tubes manufactured by Kingspan Environmental Ltd. ensures particularly high collector efficiency. A distinctive feature of the collector is its modular design.

Applications of the Varisol HP90 20 vacuum solar collector

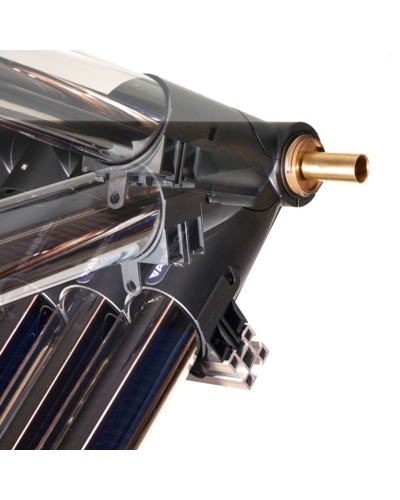

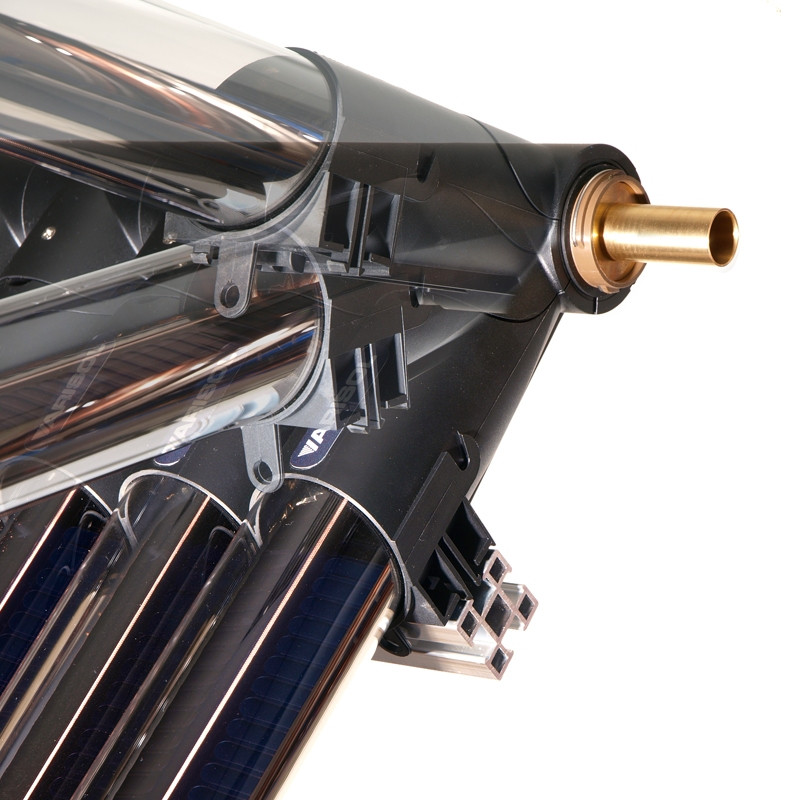

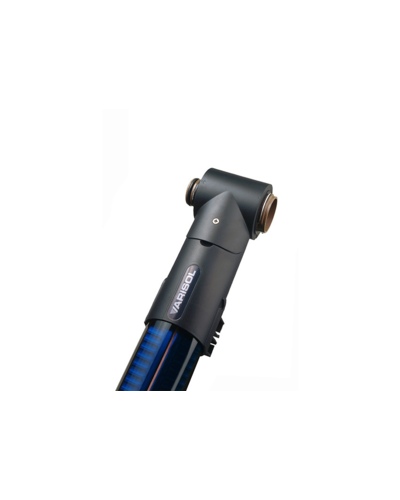

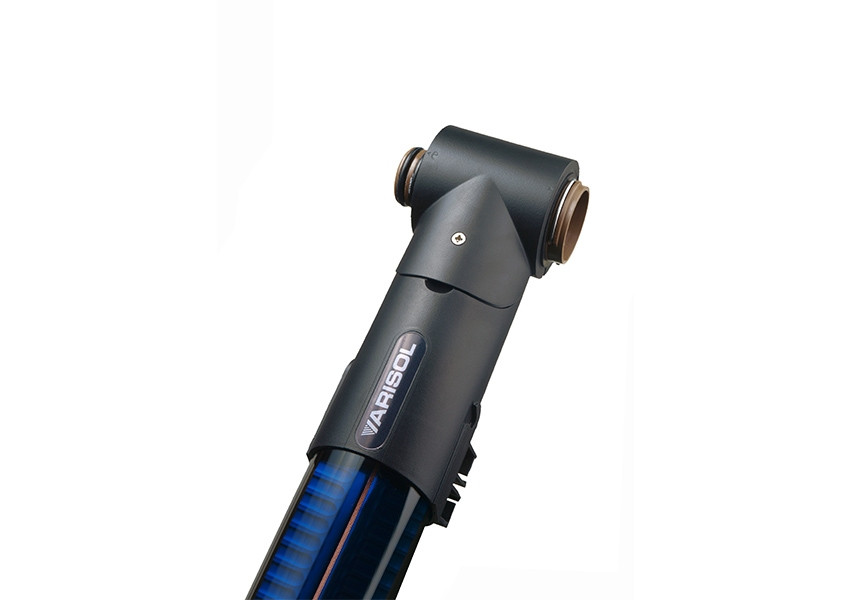

Varisol HP90 20 vacuum collectors are equipped with 20 65mm diameter vacuum tubes. The heating element, which is water, receives heat indirectly from the absorbers (heat pipes). Each vacuum tube acts as an independent hydraulic element of the collector, transferring heat through a condenser to the ethylene. The collectors are designed for use in both small and large solar systems. High
Keywords: Solar collector Hewalex VARISOL HP90 20, Solar collectors Hewalex, Solar panels Hewalex, Vacuum panels Hewalex, Solar collectors, Solar panels, Vacuum panels, solar collectors
Brand: Hewalex
Heat loss coefficient a2: 0.0080 W/m²K²
Heat loss coefficient a1: 1.62 W/m²K
Optical efficiency: 76%
Collector length: 1965 mm
Collector height: 80 mm
Collector weight: 43 kg
Volume of liquid in the collector: 1.0 l
Net collector area: 2,130 m²
Collector area: 2,790 m²
Collector width: 1420 mm
