Heliosystem: Solar vacuum collector SC-LH2-15

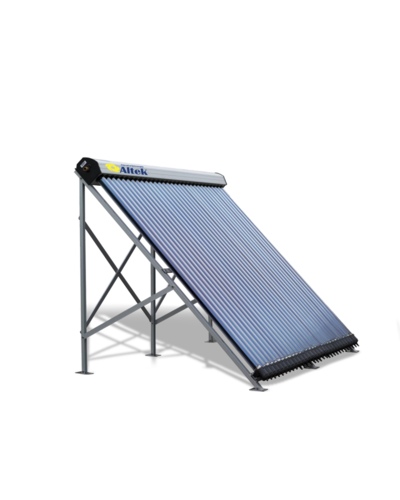

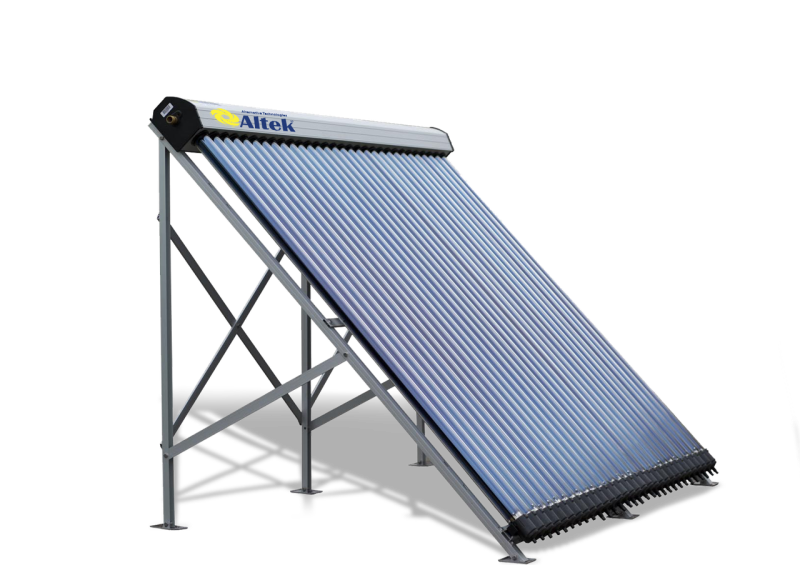

SC-LH2-15 solar vacuum collector with a frame for a flat roof, a 14mm Heat Pipe condenser

A selective coating on the inner surface of the evacuated tubes facilitates the conversion of solar energy into thermal energy, followed by heat transfer to the heat-conducting rods through aluminum fins. The liquid inside the heat-conducting rods is converted into vapor, which rises to the condenser. The heat is then passed through a heat exchanger, where the vapor is converted into liquid, returning to the bottom (base) of the heat-conducting rod.

Heat is transferred to the coolant (antifreeze) through a copper heat-conducting rod. This heat transfer to the fluid ensures continuous circulation as the solar collector is heated by the sun's rays.

The Altek® vacuum collector performs excellent on cloudy days because the tubes are capable of
Keywords: Heliosystem: Solar vacuum collector SC-LH2-15, Solar systems, Alternative energy sources, Heliosystem: Solar vacuum collector SC-LH2-15, solar collector, all-season solar
Country of origin: China
Collector type: Vacuum
Tube dimensions, mm: ?58.1800
Number of tubes: 15
Recommended tank capacity, l: 105-150
Condenser diameter, mm: ?14
