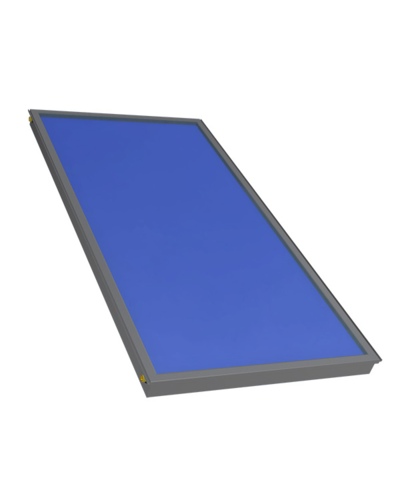

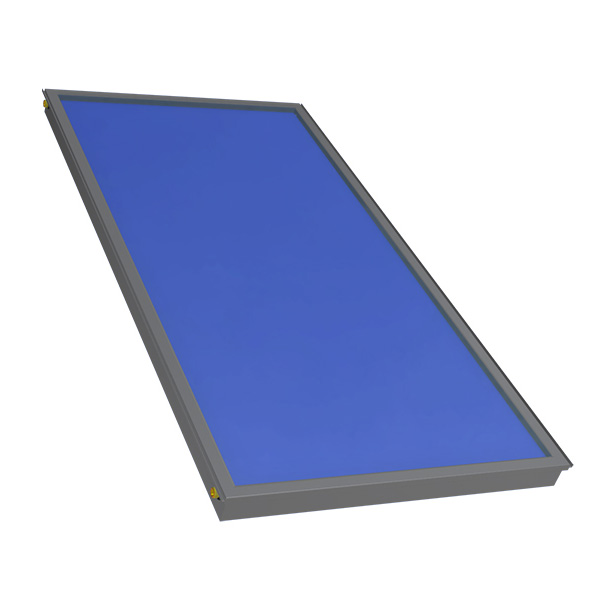

Hewalex KS2100 TLP AC solar collector

Solar collector KS2100 TLP AC

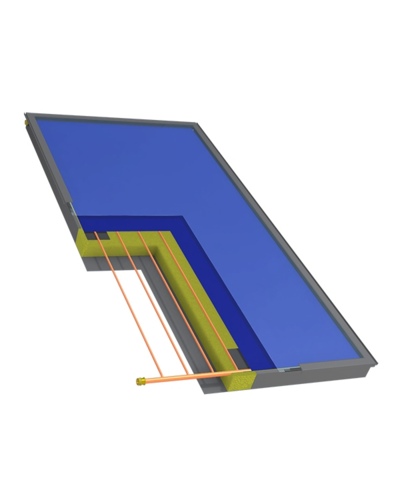

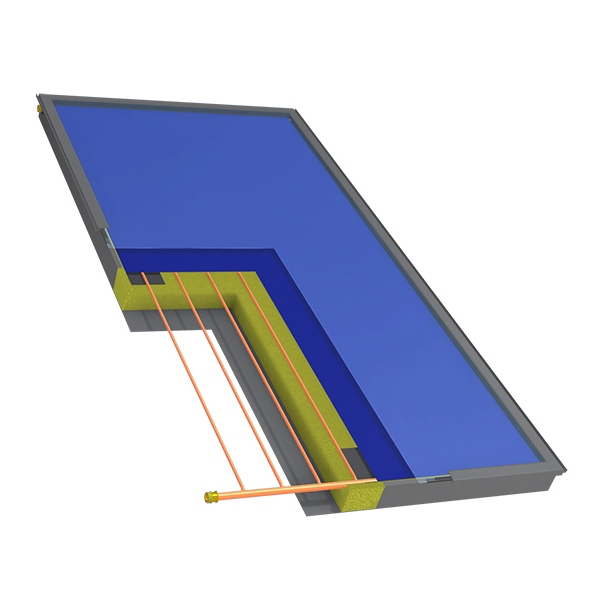

The Hewalex KS2100 TLP AC solar panel is a cost-effective solution in terms of design and parameters, among flat-plate collectors. The absorber is made of high-quality aluminum and copper (Al-Cu) materials and manufactured using laser welding technology. High efficiency is achieved through a highly selective (PVD) absorber coating. The glass has a high solar transmittance rating (U1) and is fully thermally insulated.

Application possibilities

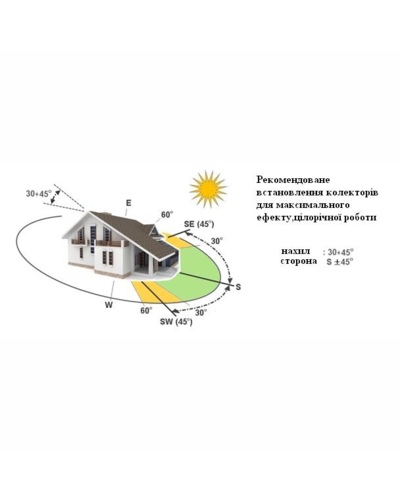

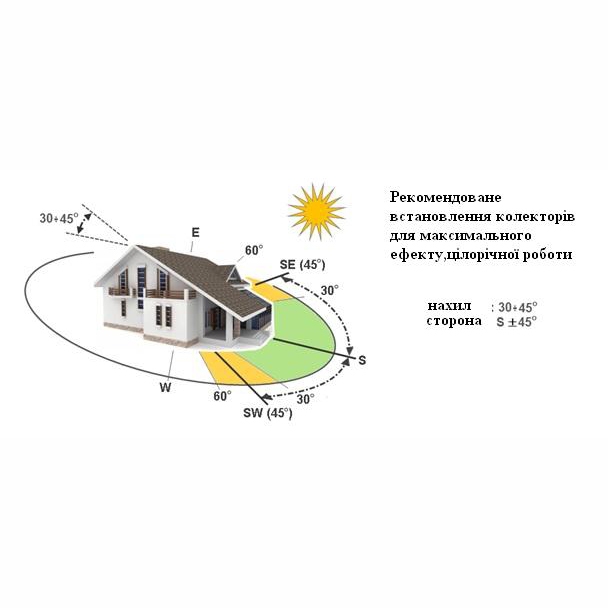

The KS2100 TLP AC solar collectors are designed for use in both small and large systems. They are used, in particular, in hot water heating systems in buildings, including single-family homes, multi-family buildings, and commercial industrial and other applications. They can also be used for pool heating and building heating support. The recommended tilt angle
Keywords: Hewalex KS2100 TLP AC solar collector, Hewalex solar collectors, Hewalex solar panels, Hewalex flat panels, Solar collectors, Solar panels, Flat panels, solar collectors,
Brand: Hewalex
Heat loss coefficient a2: 0.02 W/m²K²
Heat loss coefficient a1: 3.334 W/m²K
Optical efficiency: 80.8%
Collector weight: 34.4 kg
Volume of liquid in the collector: 0.85 l
Net collector area: 1,820 m²
Collector area: 2,090 m²
Collector height: 89 mm
Collector width: 1037 mm
Collector length: 2018 mm
