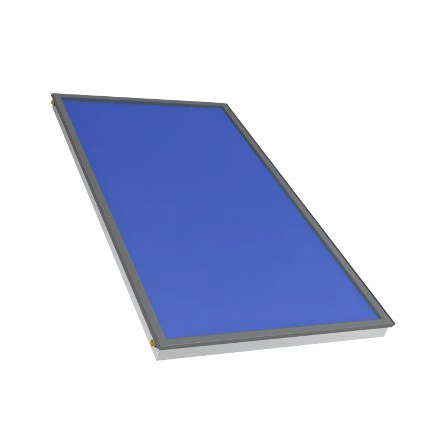

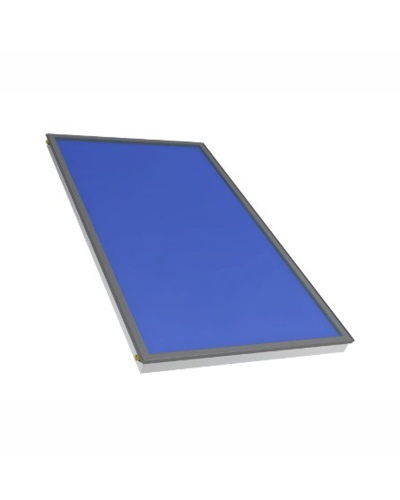

Solar collector Hewalex KS2400 TP AC

Solar collector KS2400 TP AC

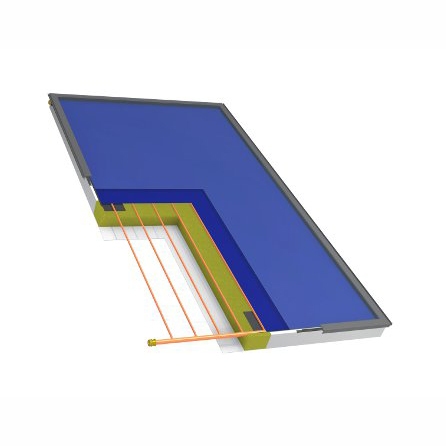

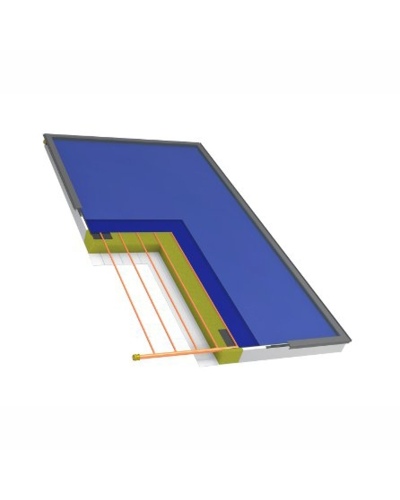

The Hewalex KS2400 TP AC solar panel is a cost-effective solution in terms of design and parameters for flat-plate collectors. The absorber is made of high-quality aluminum and copper (Al-Cu) and manufactured using laser welding technology. High efficiency is achieved through a highly selective (PVD) absorber coating. The glass has a high solar transmittance rating (U1) and the housing is fully insulated. Unlike the KS2400 TLP AC collector, the KS2400 TP AC collector features an unpainted lower housing. The special aluminum composition ensures complete protection of the housing from external corrosion.

Application possibilities

The KS2400 TP AC solar collectors are designed for use in both small and large systems. They are particularly suitable for heating systems.
Keywords: Hewalex KS2400 TP AC solar collector, Hewalex solar collectors, Hewalex solar panels, Hewalex flat panels, Solar collectors, Solar panels, Flat panels, solar collectors,
Brand: Hewalex
Heat loss coefficient a2: 0.02 W/m²K²
Heat loss coefficient a1: 3.334 W/m²K
Optical efficiency: 80.8%
Collector weight: 40 kg
Volume of liquid in the collector: 1.00 l
Net collector area: 2.19 m²
Collector area: 2.46 m²
Collector height: 89 mm
Collector width: 1221 mm
Collector length: 2018 mm
