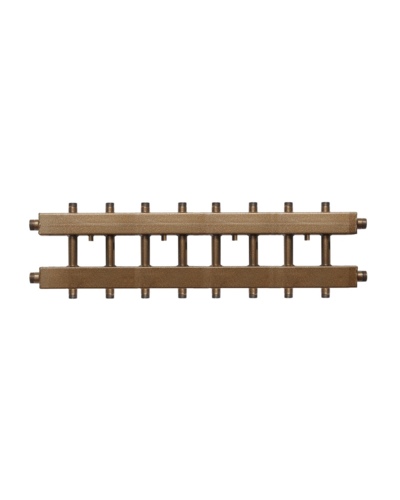

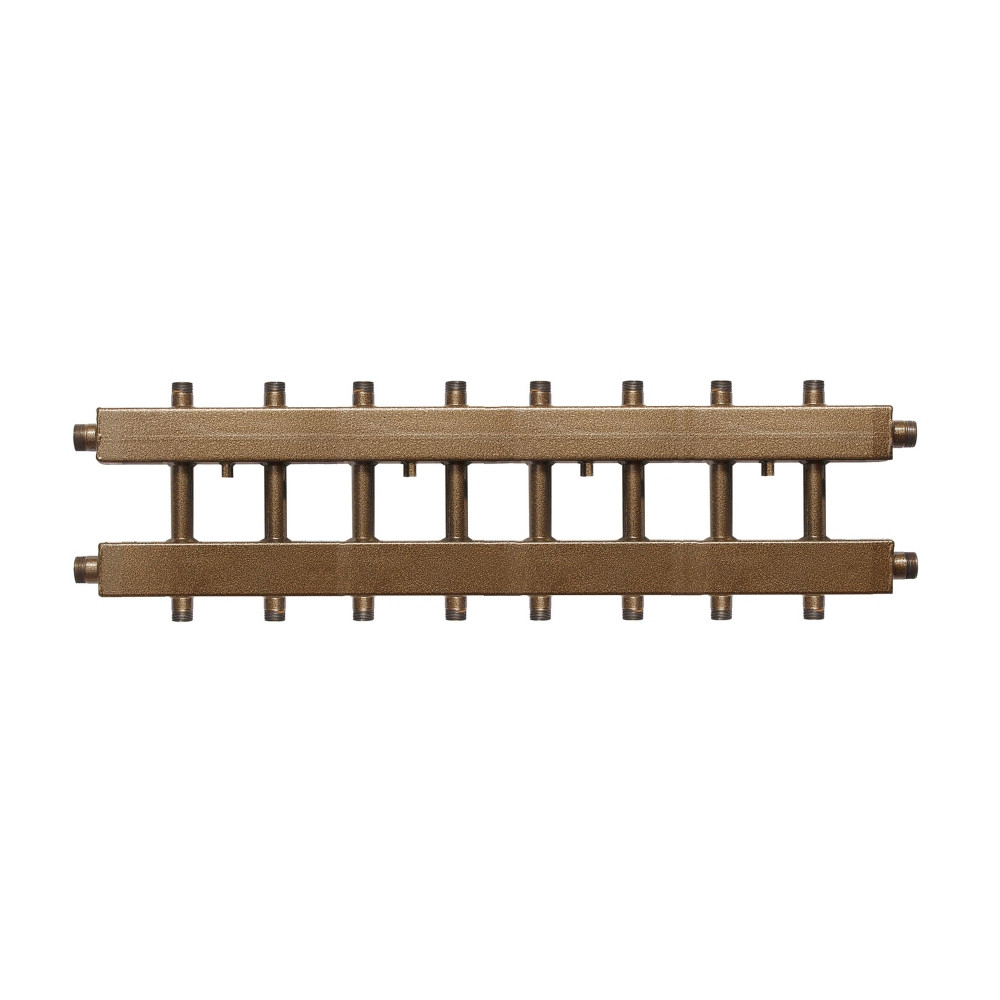

Heating manifold SK-472.125

Combined manifold for heating SK-472.125

Manifold systems are used to distribute heat transfer fluid in any type of heating system. The heat transfer fluid can be any liquid, but water is most commonly used. Manifolds are made of steel, hydraulically tested to 10 bar, and powder-coated, with an antique copper finish and lacquer finish.

Heating manifold equipment SK-472.125

• upper exits - 4
• lower outputs - 4
• side exit - 1
• boiler outlet - 1

Distribution combined manifold with top and bottom outlets

When the boiler manifold for heating is correctly selected, then to start the entire combined heating system it is only necessary to provide a correctly selected manifold cabinet, as well as
Keywords: Heating manifold SK-472.125, Termojet quick installation groups, Termojet heating manifolds, quick installation groups, heating manifolds, manifolds, manifold with valve, distribution groups
Brand: Termojet
Material: steel
Temperature range: up to 95ºC
Boiler inlet: 1 ¼"
Drain and air vent outlets: 1/2"
Top outlet: 1"
Side outlet: 1 ¼"
Max pressure: 12 bar
Number of contours: 8+1
