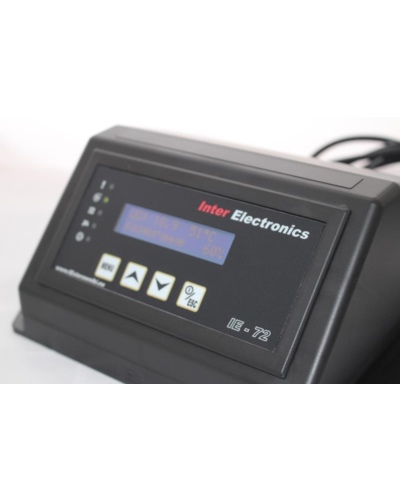

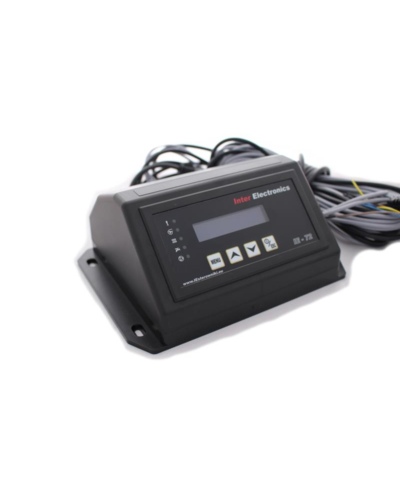

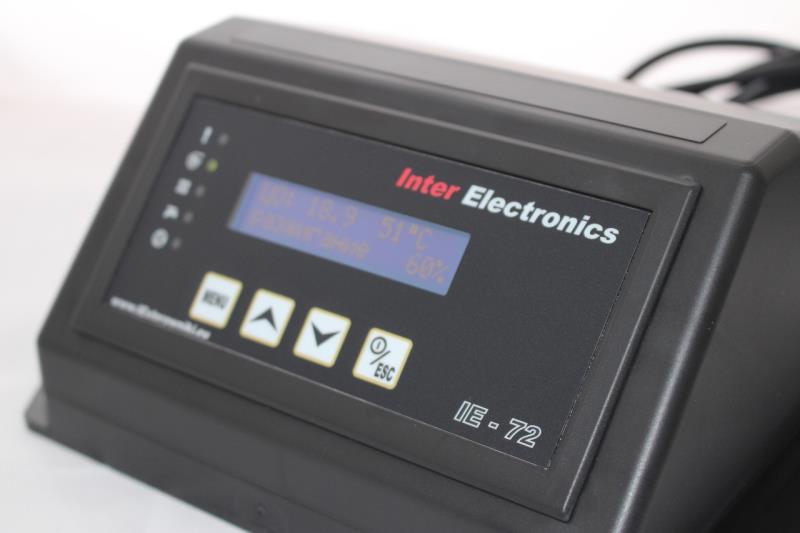

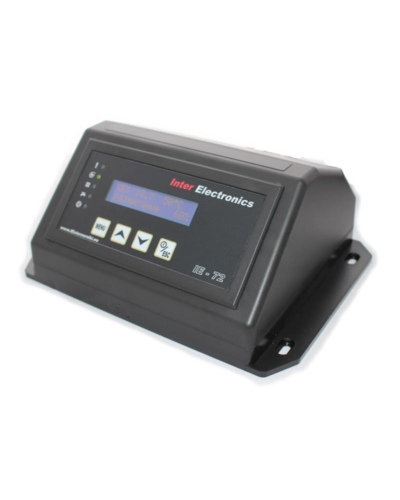

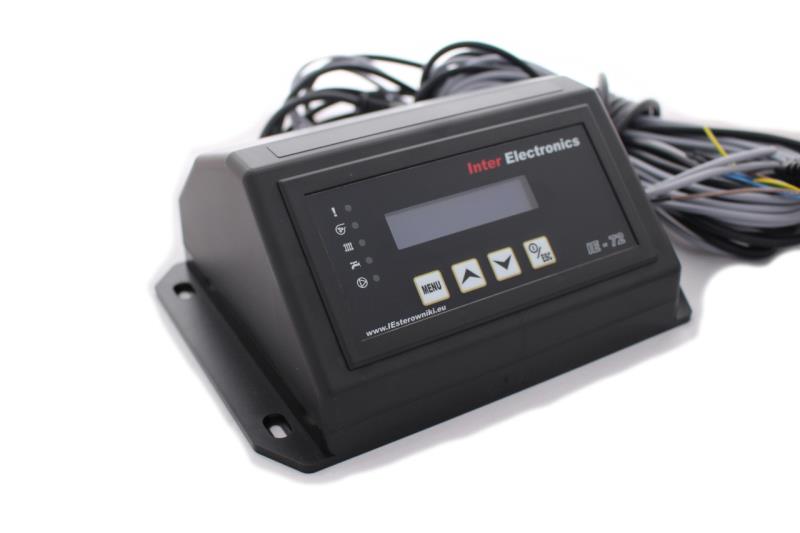

IE-72v4 PiD Automatic control for a solid fuel boiler with hot water and an additional pump (three pumps)

IE-72v4 PiD: Advanced automation for your boiler and heating system. Russian interface. 2-year warranty.

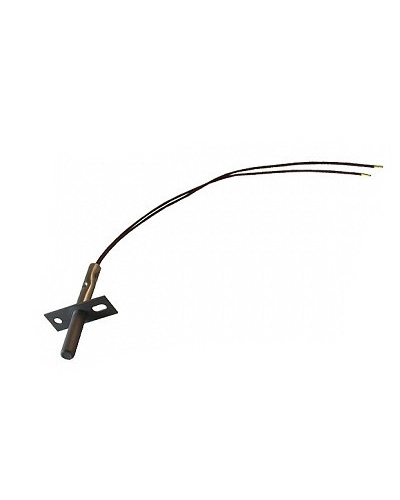

The optional Pt1000 flue gas temperature sensor not only monitors temperature but also adjusts fan operation based on its value and trend. Two flue gas temperature parameters can be set: operating mode and ignition mode.

The program with PID algorithm provides control of the boiler operation by smooth regulation of the fan speed based on the measurement of the temperature of the boiler coolant (water) as well as the temperature of the exhaust gases measured at the outlet of the boiler by an additional Pt1000 sensor, which provides significant fuel savings, increases the efficiency of the boiler, reduces and sometimes even completely
Key words: automation, controller, programmer, thermostat, thermostatic controller, for boiler, fan, turbine, snail, for boilers, boiler, solid fuel boiler, IE-72v4 PiD Automation for solid fuel boiler with G.
Country of origin: Poland
Condition: New
Warranty period: 24 months
Part number: IE-72v4 PiD
