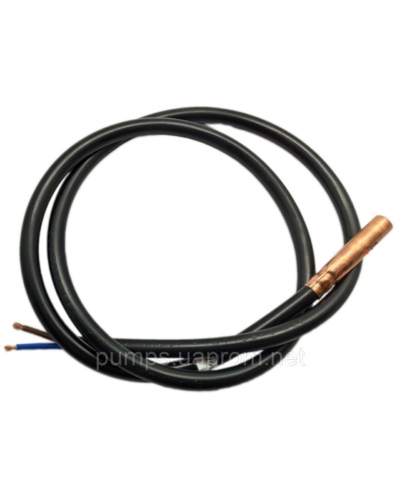

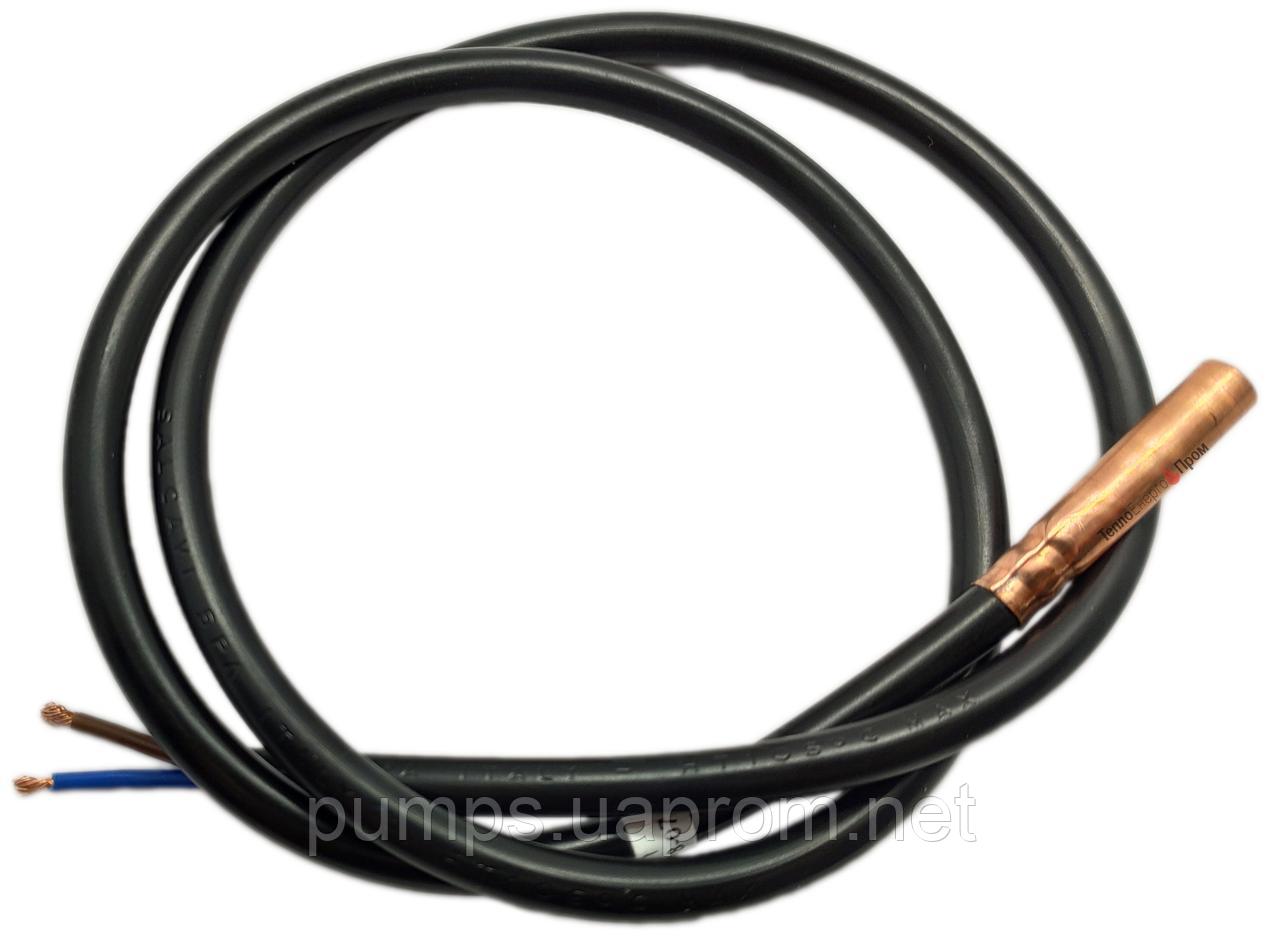

Thermal sensor NTC Brahma ST07 code 18200321. Kolvi 50/100

Temperature sensor

Brahma ST07 CM70

for boilers Kolvi 50 CE, Kolvi 100 CE

The BRAHMA ST07 temperature sensor is used as a room and external sensor in room temperature control systems, in heating systems and for domestic use:

• in floor-standing boilers
• in wall-mounted boilers with a hot water tank
• in storage water heaters
• in convectors

Parameters:

• Temperature range from -40°C to +105°C

• Type NTC. R 25°C = 10kΩ ± 1% Coefficiente β 3435ºK ±1%

• The length of the wire is 70 cm

• Brahma code 18200321

• Made in Italy
