Afriso BSS safety group (bar), size 3/4"

Afriso BSS Security Group

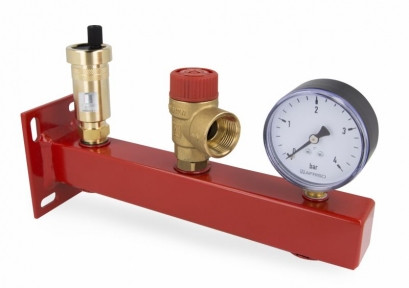

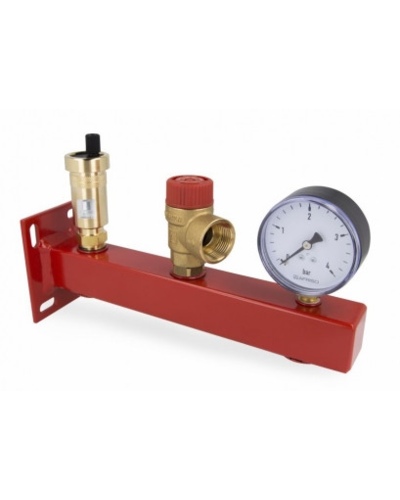

The Afriso BSS boiler safety assembly consists of a steel beam with a threaded end for the expansion tank . A pressure gauge, safety valve , and automatic air vent are attached to the beam. The Afriso BSS safety assembly allows for removal of the valves without draining the system. The Afriso BSS safety assembly is a mounting element with holes for bolts, used for wall mounting.

The Afriso MS diaphragm safety valve is installed in the safety group and has a CE certificate, which confirms compliance with PED 97/23/EC, as well as a test certificate issued by the technical supervision body.

Pressure gauge: 0 ÷ 4 bar, ø63, G⅜"
Air vent automatic mode: 12 bar
Safety valve: 3 bar, ½" x ¾"
