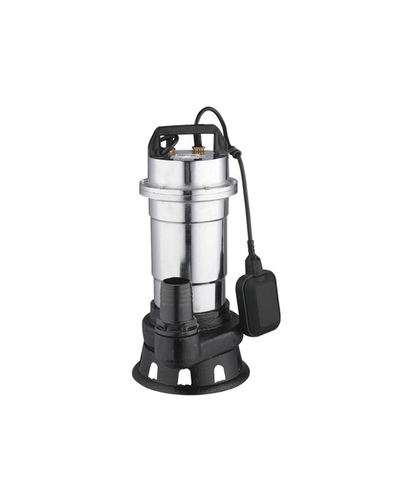

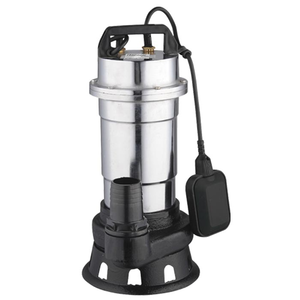

VS Pumps Plus Equipment VS750F

electric pumps for drainage and feces

24 MONTH WARRANTY

Limitation

• Working area: congested water or other areas similar to water in thickness and chemical activity
• pH indicator 4–10
• Replacement of mechanical houses, no more than 5 g/m ³
• The maximum size of the parts is no more than 15 mm
• Maximum temperature: + 35 °C
• Minimum well diameter: 500 mm

Design characteristics

• Monoblock vertical enclosures
• Removal of the pressure pipe
• the electric motor housing and the pump chamber housing are made from chavun
• The engine body and cover are coated with anti-corrosion chrome
• The working wheel is centered, closed type, made from chavun
• Shaft made of stainless steel AISI 304
• Reinforced end section – graphite / ceramics / NBR / AISI 304 installed in the oil chamber
•
  Key words: Drainage and fecal electric pumps, VS
  Maximum tightness: 950
  Maximum pressure: 12.5
  Maximum productivity: 19.5
  Minimum heating temperature: 1
  Maximum temperature when heated: 35
  Optimal pressure: 8.1
  Outlet diameter: G2-B
  Optimal productivity: 12
  Maximum size of patches: 15
  Minimum drill diameter: 500
  Maximum water depth: 5
  Minimum drying rate: 320
