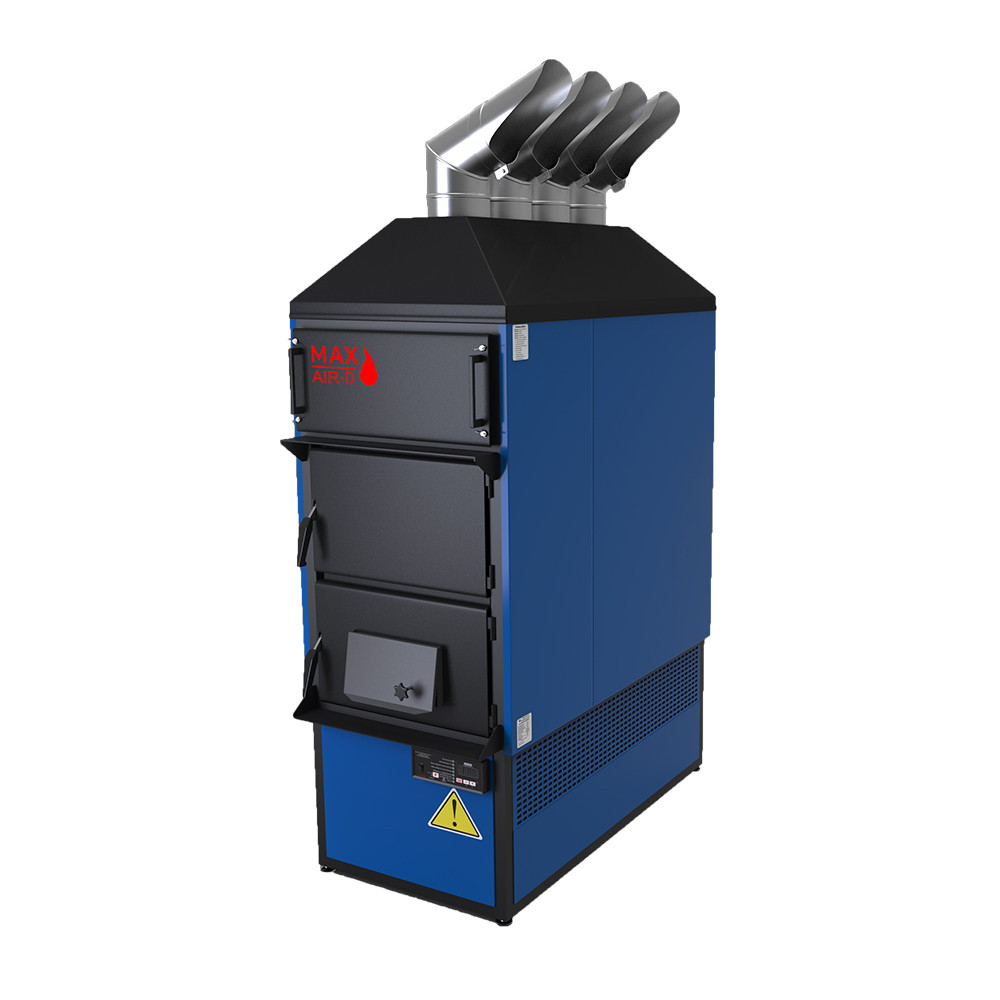

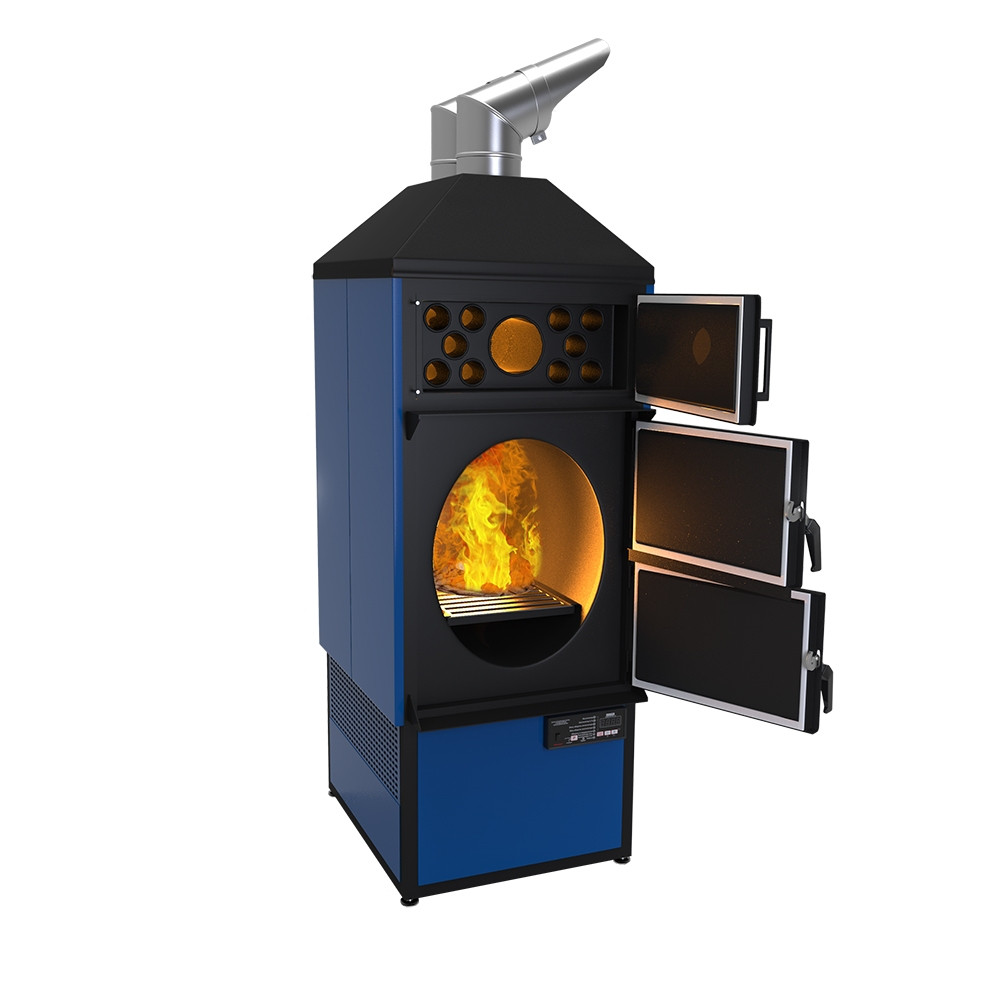

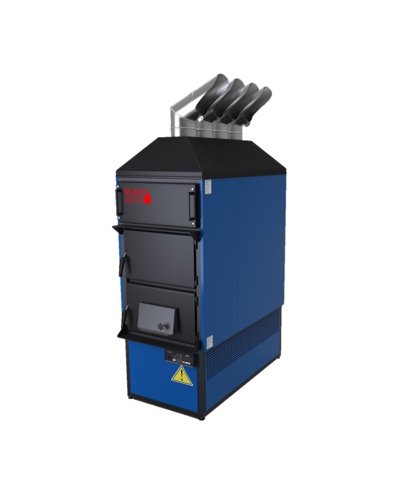

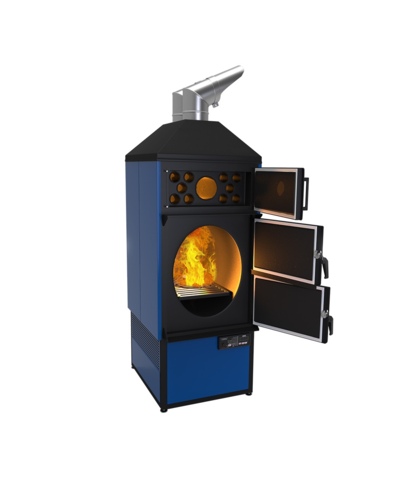

Airmax D 390 kW air heater

Airmax D 390 air boiler

The Airmax D390 boiler from the manufacturer is an air-fired boiler with a capacity of 390 kilowatts, which is designed for heating auto repair shops, industrial premises, car washes, warehouses, and other industrial facilities.

The Airmax D heat generator is simple and easy to maintain. The Airmax air boiler is a highly efficient, high-quality, and powerful unit that guarantees fast and even heating of the room using a variety of dry firewood.

The Airmax air boiler is mainly designed for the following fuels:

Advantages of the Airmax D air boiler

• low cost of a heat generator
• low installation costs
• low exp
  Keywords: Air heat generator Airmax D 390 kW, Air heating Maxus, Heat generator for wood Airmax D Maxus, Air heating, Heat generator for wood Airmax D, liquid fuel boilers, liquid fuel
  Brand: Maxus
  Height: 2700 mm
  Width: 1220 mm
  Depth: 2700 mm
  Voltage: ~400V, 15Ax3F or 8Ax1F
  Air flow: 25,500 m³/year
  Fan power: 4.5 kW
  Fan static pressure: 120 Pa
  Combustion chamber height: 900 mm
  Combustion chamber width: 900 mm
  Combustion chamber depth: 1900 mm
  Chimney Ø: 250 mm
  Firewood consumption (humidity up to 20%): 125 kg/year
