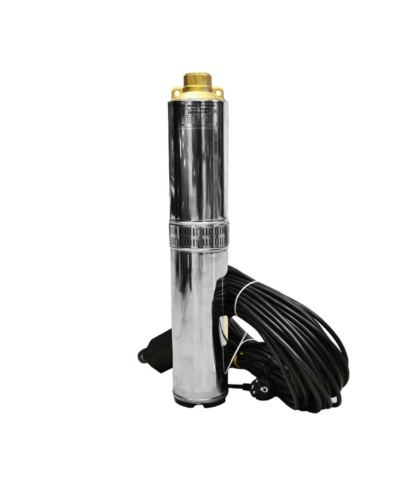

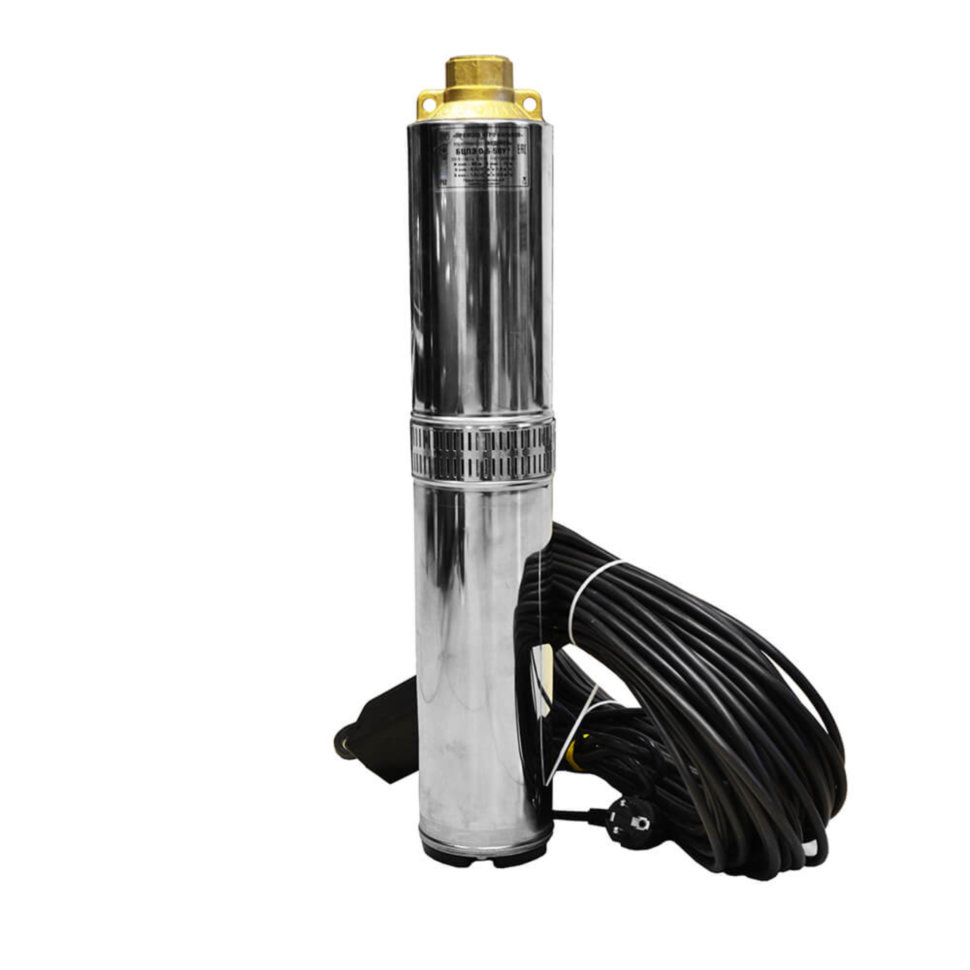

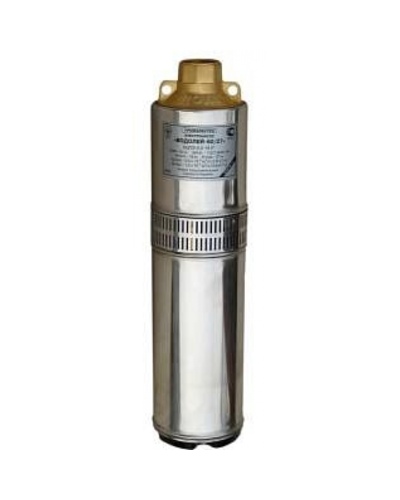

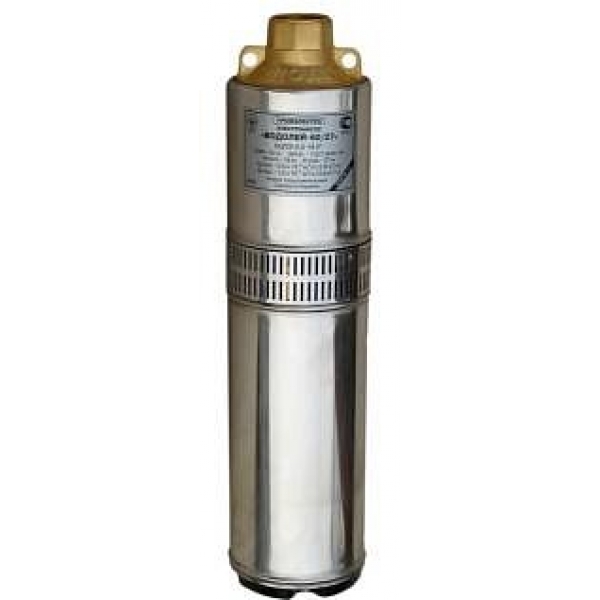

Vodolay BCPEU 0.5-40U (narrow)

Vodolay BCPEU 0.5-40U (narrow) (BCPEU 0.5-40, BCPeU 0.5-40 U)

Submersible household pumps of this type are primarily used for pumping water from various sources (minimum diameter 100 mm). This pumping equipment is used in private water supply, gardening, and farming. Protection against clogging, overheating, and dry running is provided; in these cases, the pump shuts off automatically.

Specifications:
Nominal volumetric flow, m3/h 1.8
Total pressure at nominal volumetric flow, m 40
Maximum volumetric flow, m3/h 3.6
Maximum pressure, m 60
Voltage, V 220
Nominal power consumption, W 720
Network frequency, Hz 50
Current consumption, A 4.6
Rotation speed, rpm 2800
The operating mode is continuous
Capacitor capacity with voltage of 400 V, 24 μF
Weight, kg 13.8
Number of pump stages: 6
