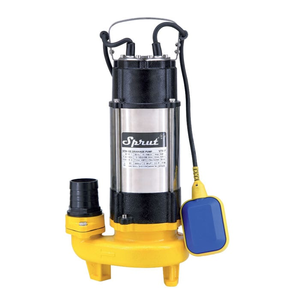

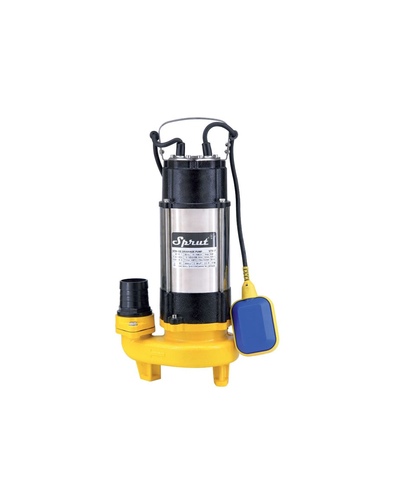

V750F Sprut V750F

electric pumps for drainage and feces

24 MONTH WARRANTY

Limitation

• river: water is obstructed or other rivers are similar to water in terms of thickness and chemical activity
• pH indicator 4 – 10
• instead of mechanical houses, no more than 5 kg/m³
• maximum size of parts, no more than 25 mm
• maximum temperature + 35°C
• minimum drainage level: 485 mm
• minimum well diameter: 450 mm

Design characteristics

• monoblock vertical enclosed
• Be sure to remove the pressure pipe
• Viconian electric pump housing made of chavun and stainless steel
• pumping chamber casing
• lower filter retreading for rewinding
• the wheel is working – centrally located, closed type, vikonan with chavunu
• shaft made of stainless steel AISI 304
• reinforced end - g
  Keywords: Drainage and fecal electric pumps, V750F
  Rotor type: dry
  Maximum tightness: 1100
  Maximum pressure: 11.2
  Maximum productivity: 21.1
  Minimum heating temperature: 1
  Maximum temperature when heated: 35
  Optimal pressure: 6.7
  Outlet diameter: G2-B
  Optimal productivity: 15
  Maximum size of patches: 25
  Placement type: walled
  Type of waste: fecal waste
  Principle of action: central
  Type of connection pipes: under hose
  Minimum drill diameter: 450
  Maximum water depth: 5
  Minimum drying rate: 485
