Transportable boiler platform

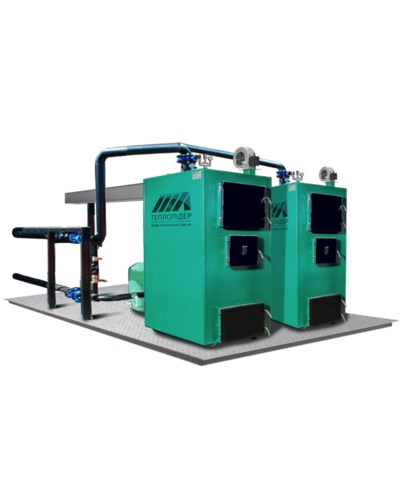

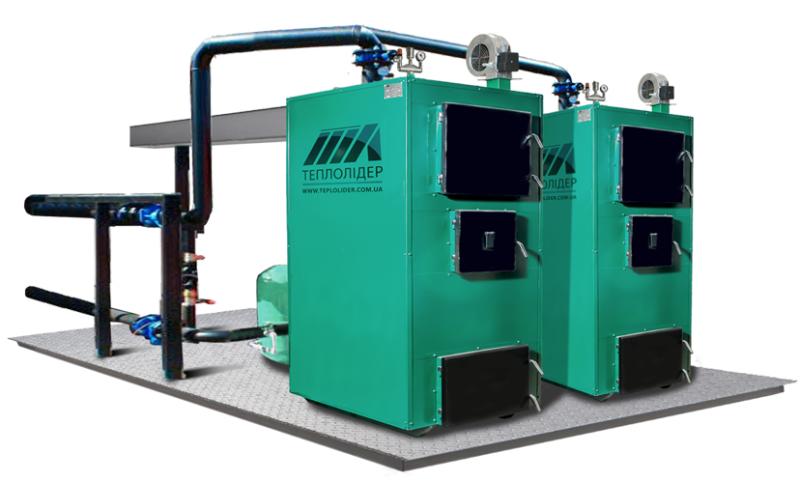

Transportable boiler platforms consist of a steel foundation supporting one, two, or three solid fuel long-burning boilers, a water treatment system, pumps, shutoff valves, an automation system, and instrumentation. Depending on the capacity and number of boilers installed, boiler platforms can have a capacity of 100 to 700 kW. The solid fuel boilers can be fueled by coal, wood, pellets, straw, and waste from wood processing and agricultural enterprises. The boilers also feature a large firebox and are equipped with air supply fans, which improve fuel combustion and increase heat transfer. The automation controls the water temperature in the boiler and the air supply to the firebox. Thus, maintenance of the transportable boiler platform is minimized.

The steel frame of the boiler platform allows for easy transport into the boiler room. Once connected to utilities, the boiler platform is fully operational.
Key words: Transportable boiler platform, transportable boiler house, boiler platform, boiler on a platform, solid fuel boiler platform, transportable platform, boilers on a platform, transport
Country of origin: Ukraine
Weight: 2
Height: 2.0 (mm)
Width: 3.0 (mm)
Warranty period: 24 (months)
Nominal power: 700
Efficiency: 91.0 (%)
Current frequency: 50 Hz
Length: 6.0 (mm)
Types of solid fuel: Sunflower husk, Husk, Straw, Buckwheat husk, Firewood, Wood chips, Sawdust, Pellets, Briquettes, Bark, Coal, Brown coal, Anthracite, Coke, Peat, Oil shale
Fuel types: Solid
Industrial boiler type by fuel type: Solid fuel
Type of industrial boiler by type of coolant: Hot water
Type of coolant: Water
Type of industrial boiler by design features: Water-tube
Steam boiler type: Industrial
Number of boilers to be installed: 1 (pcs.)
