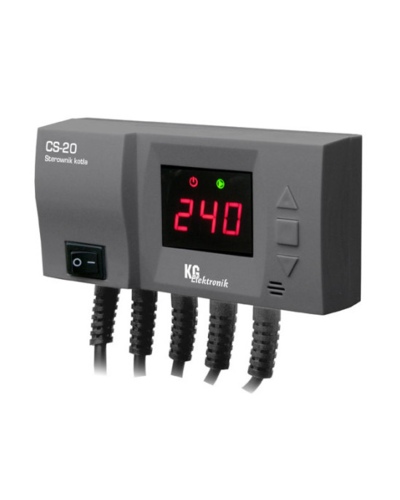

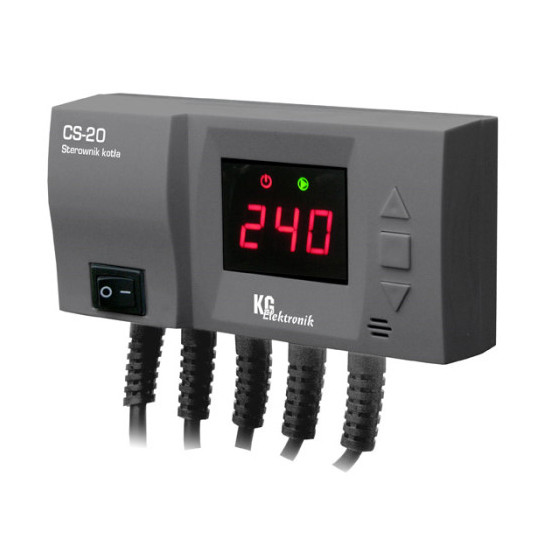

Thermostat KG-Elektronik CS-20 CO

Thermostat KG-Elektronik CS-20 CO

SvitTepla is the official distributor of the Polish company KG.Elektronik in Ukraine! Only in our online store you can buy the CS-20 automatic system with a guarantee!

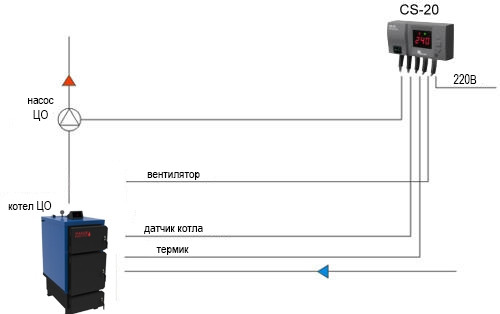

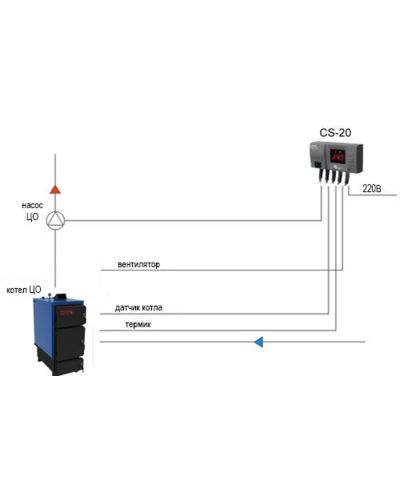

The CS-20 boiler automation system controls the central heating pump and fan. The thermostat is designed for solid fuel boilers: wood, coal, and fine coal. The controller has five operating functions, depending on the fuel and boiler type. The first step before using the CS-20 automation system is to set the boiler temperature, which should be maintained by the thermostat during boiler operation, and select the operating function in the controller menu.

• Function F1 wood and coal (smooth blowing power)
• Function F2 tree (blow power 2)
  Keywords: KG-Elektronik CS-20 CO thermostat, KG Elektronik boiler room automation, KG Elektronik boiler room automation, boiler room automation, boiler automation, solid fuel boilers, solid fuel boilers
  Brand: KG Elektronik
  Power: 230/50Hz +/- 10%
  Temperature measurement range: 0 to 99 °C
  Ambient temperature: -10 to 50 °C
  Temperature resistance of the sensor: -10 to 120 °C
  Temperature setting range: 20 to 80 °C
  Power consumption: 2 W
  Sensor cable length: 1.2 m
  Emergency thermostat: 90°C
  Pump and fan output load: 5A
  Power cable length: 1.5 m
