Solar kit Hewalex 50 HP Thermomax-Integra400

Solar kit Hewalex 50 HP Thermomax-Integra400

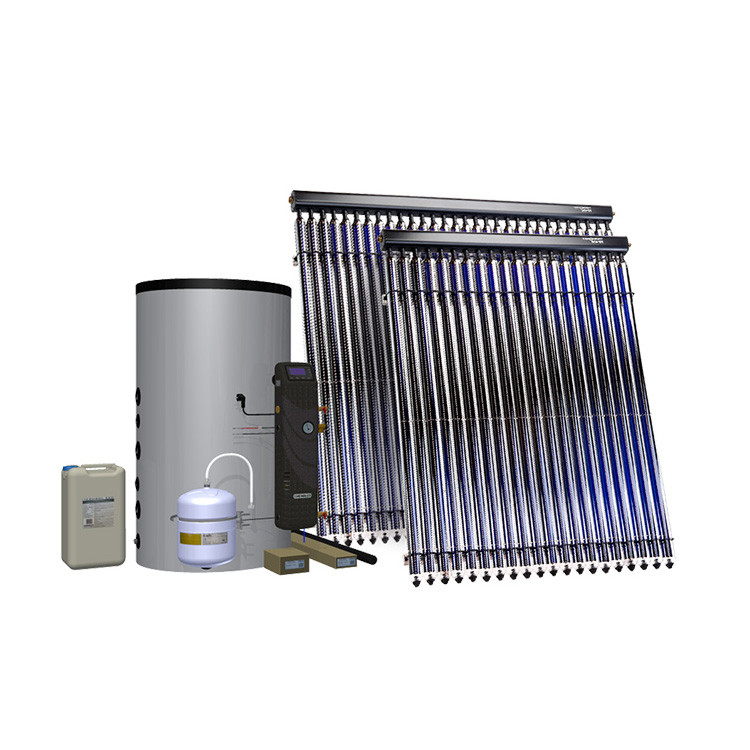

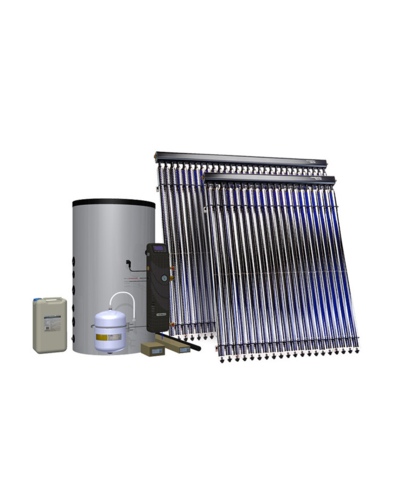

The Hewalex 50 HP THERMOMAX-INTEGRA400 solar kit is designed to heat domestic hot water and support the standard central heating needs of 3-8 people, with optimal installation of solar collectors. The main components of the kit include two THERMOMAX HP 400 20 and 400 30 vacuum collectors (50 vacuum tubes) with a total aperture area of 5.33 m² and a dual-function hot water boiler with a capacity of 400 liters.

Application possibilities

The Thermomax 50 HP solar kit can be used in residential, commercial, office, and other spaces where domestic water is needed. The solar collectors can be installed on pitched or flat roofs, on the building's facade, or on the ground, thanks to a wide range of mounting clamps. The recommended angle is
Keywords: Hewalex 50 HP THERMOMAX-INTEGRA400 solar kit, Hewalex solar collectors, Hewalex ready-made solar kits, Hewalex vacuum tube collector kits, For water heating and central heating support
Brand: Hewalex
Heat loss coefficient a1: 1.18 W/m²K
Heat loss coefficient a2: 0.010 W/m²K²
Energy efficiency class: D
Boiler capacity: 400 dm³
Panel area: 5.33 m²
Collector optical efficiency: 0.78
Pump power consumption: 23W
Standby power consumption: 1.5W
Collector efficiency: 68.70%
Annual energy consumption: 59 kWh
