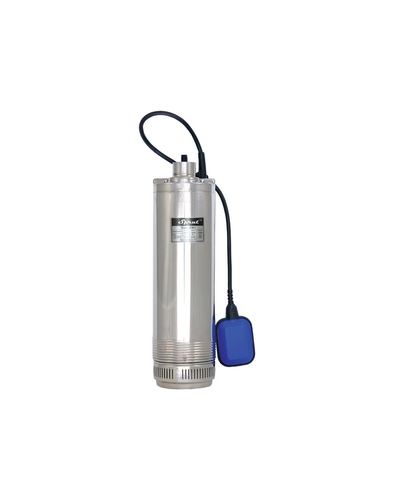

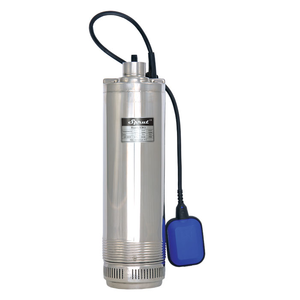

SCM Sprut SCM6

centrifugal electric pumps with a wide range of wired parts

18 MONTH WARRANTY

Limitation

• medium: water or other mediums similar to water in terms of thickness and chemical activity
• complete mineralization of water, no more than 1500 g/m³
• indicator pH 6.5 – 9.5
• instead of mechanical houses, no more than 50 g/m³
• maximum size of parts, no more than 0.2 mm
• maximum temperature + 35 °C
• minimum drainage level: 100 mm
• minimum well diameter: 300 mm
• minimum water intake level: 150 mm

Design characteristics

• monoblock vertical multi-step enclosed parts
• Viconian electric pump housing made of stainless steel
• lower filter retreading for rewinding
• rotating wheel - centrifugal, closed type, Viconan with acetate resin
• stainless steel shaft
  Key words: Well electric pumps, SCM
  Rotor type: dry
  Maximum tightness: 1500
  Maximum pressure: 63
  Maximum productivity: 8.3
  Minimum heating temperature: 1
  Maximum temperature when heated: 35
  Optimal pressure: 48
  Outlet diameter: G1-B
  Optimal productivity: 4.5
  Maximum size of patches: 0.2
  Placement type: walled
  Water type: pure water
  Principle of action: central
  Type of pipe connection: thread
  Minimum drill diameter: 300
  Maximum water depth: 5
  Minimum drying level: 100
