Pellet burner Pancerpol 75 kW TRIO

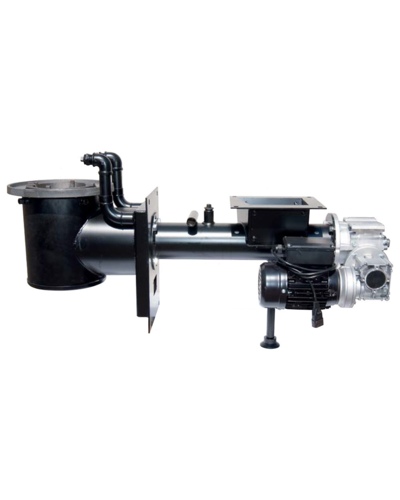

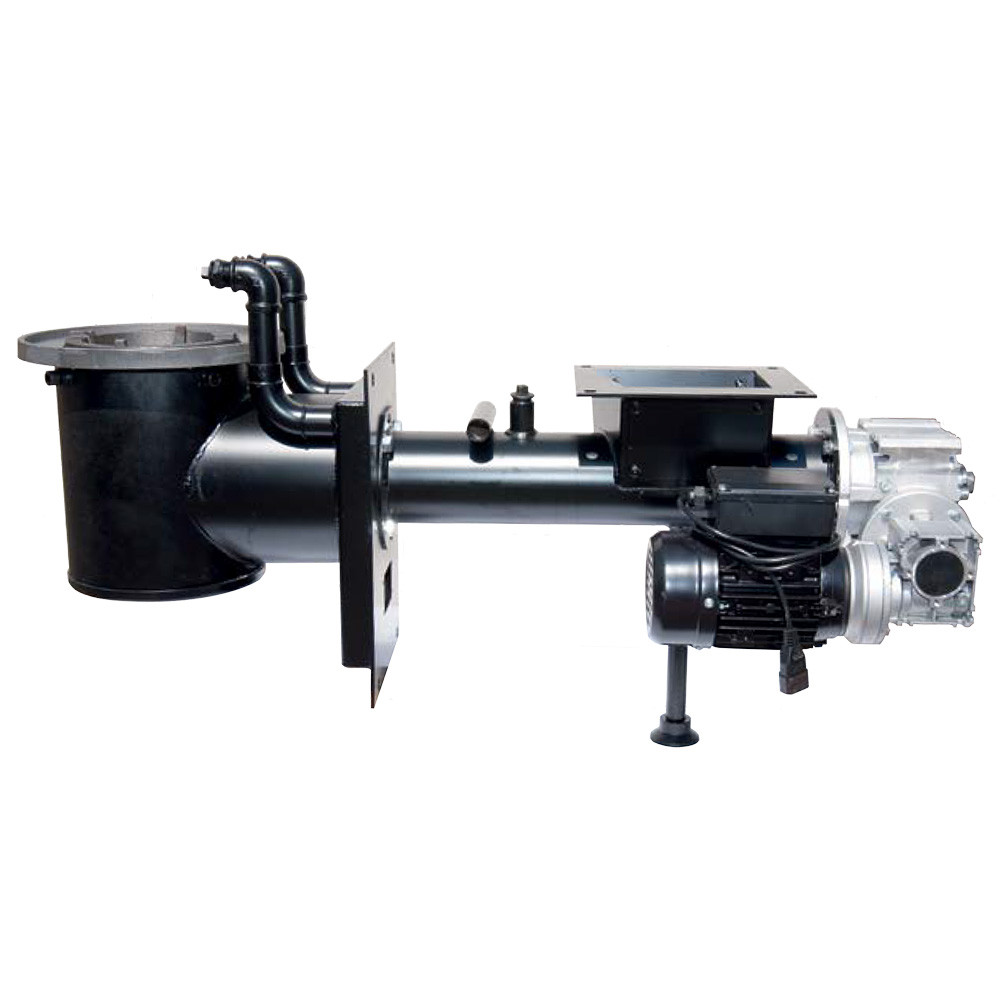

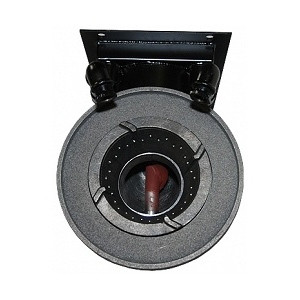

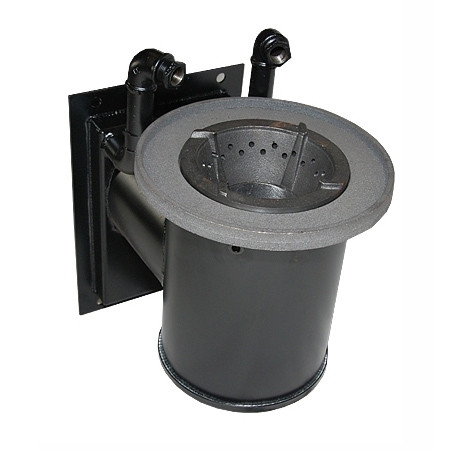

Automatic burner Pancerpol TRIO 75 kW

Automatic burner from the manufacturer "Pancerpol" model "TRIO" with a capacity of 75 kW, which is designed for burning and feeding solid fuel.

Coal with a particle size of 3 to 35 mm, coal dust, and pellets are the fuels that can be burned in this TRIO burner. The air chamber in this burner supplies primary air through openings, while secondary air is supplied only during pellet combustion.

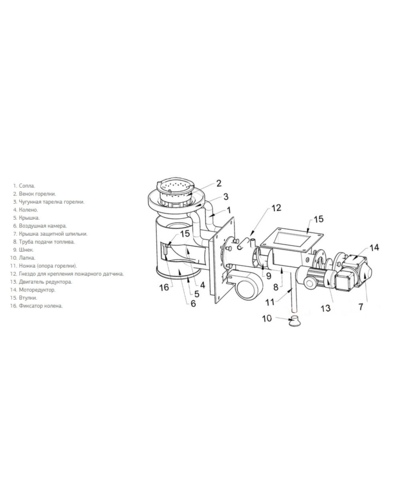

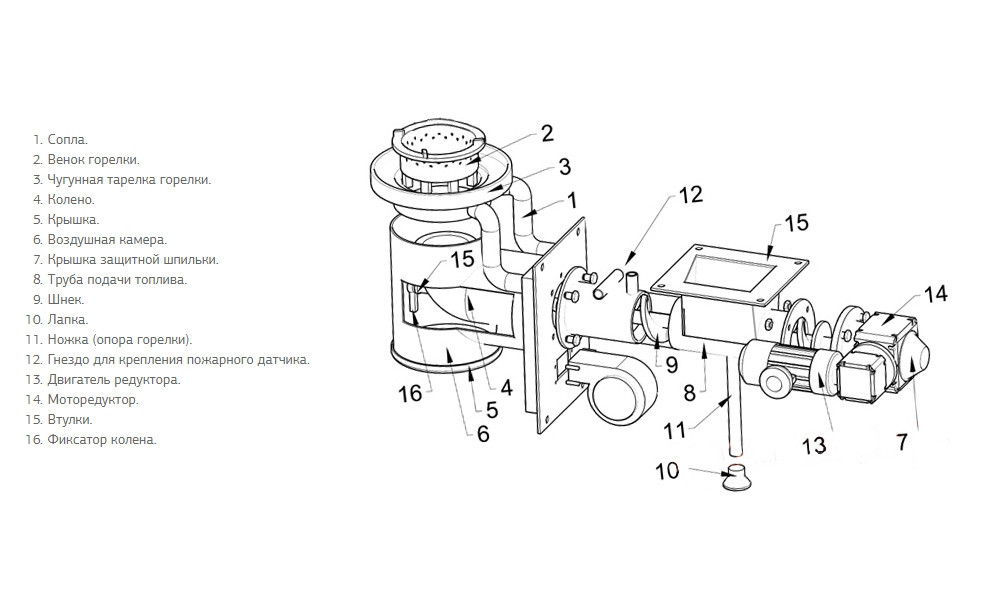

Design of the automatic burner type "TRIO"

1. Deflector

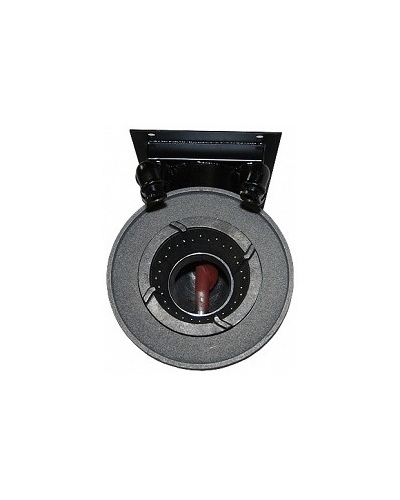

2. Firebox plate

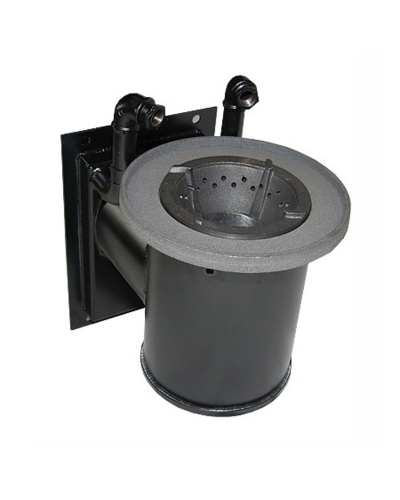

3. Firebox wreath
4. Knee
5. Lid
6. Air chamber
7. Pin shell
8. Feed pipe

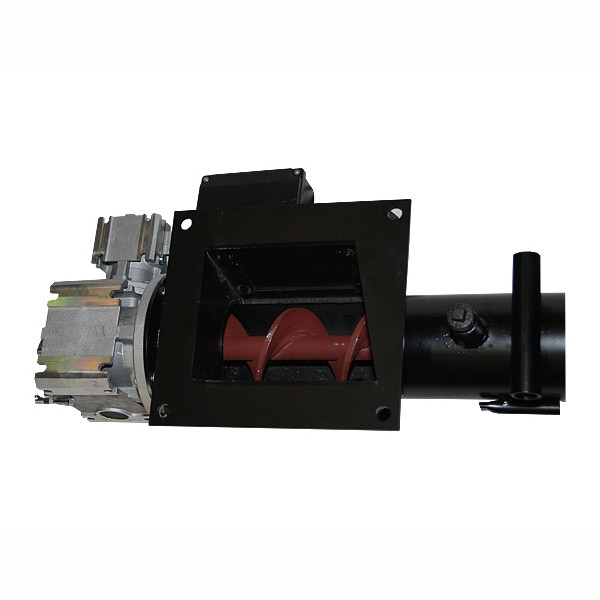

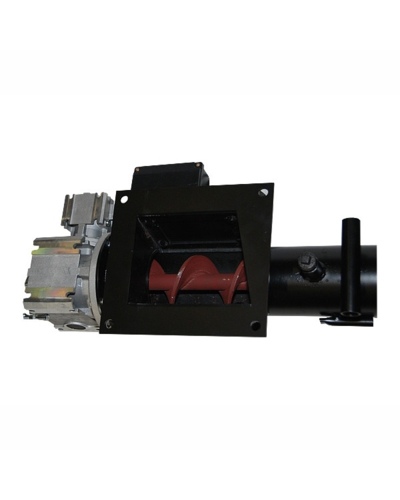

9. Screw Keywords: Pellet burner Pancerpol 75 kW TRIO, Pellet boilers Pancerpol, Pellet burners Pancerpol, Pellet boilers, Pellet burners, components for heating equipment, spare parts for heaters
   Weight: 105 kg
   Brand: Pancerpol
   Voltage: 230 V AC / 50 Hz
   Power: 75 kW
   Power range: 75 kW
   Main type of fuel: coal, pellets, fines
   Material of crowns, bowls and knees: cast iron
   Maximum coal fraction size: up to 30 mm
   Ash melting point (pour point): not less than 1250C
   Ash content: up to 15%
   Maximum fuel moisture: up to 10%
   Maximum amount of fines in coal: up to 20%
