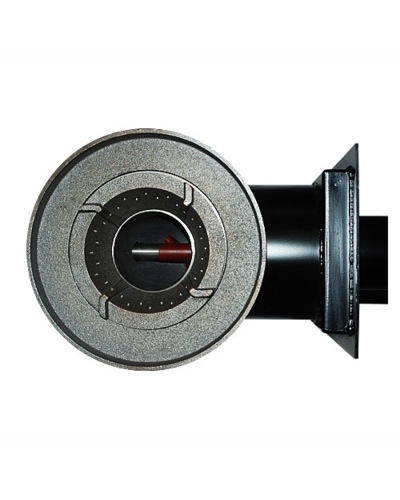

Pancerpol 17 kW DUO pellet burner

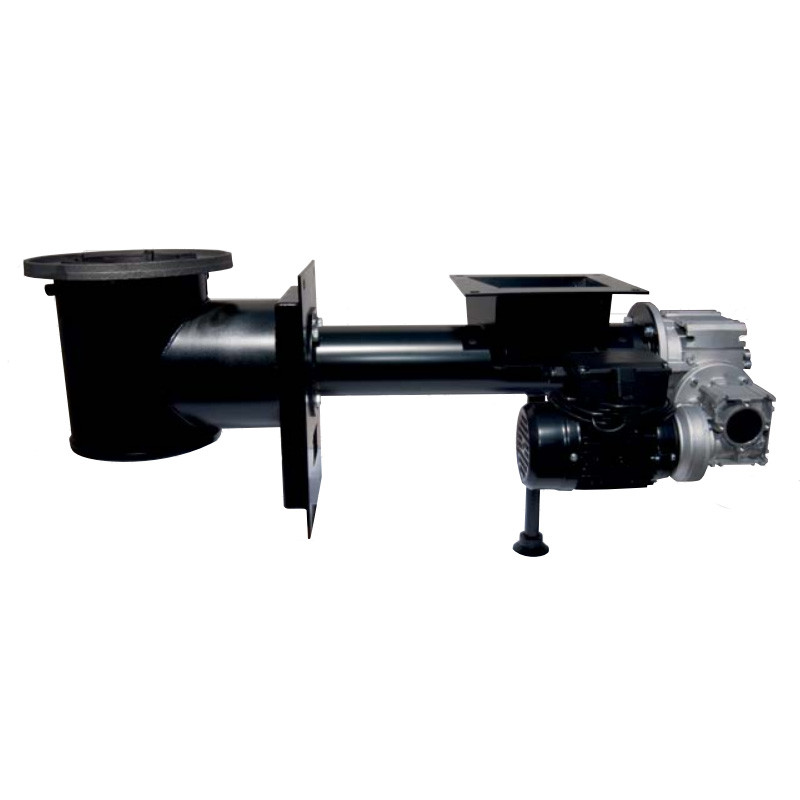

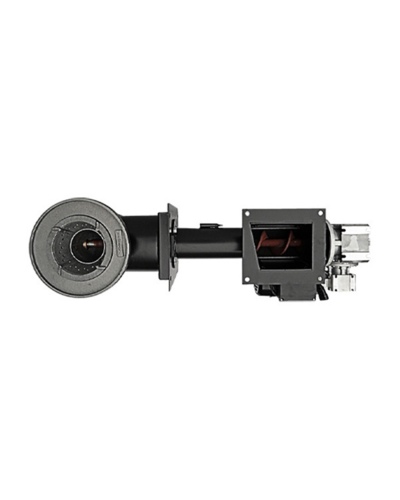

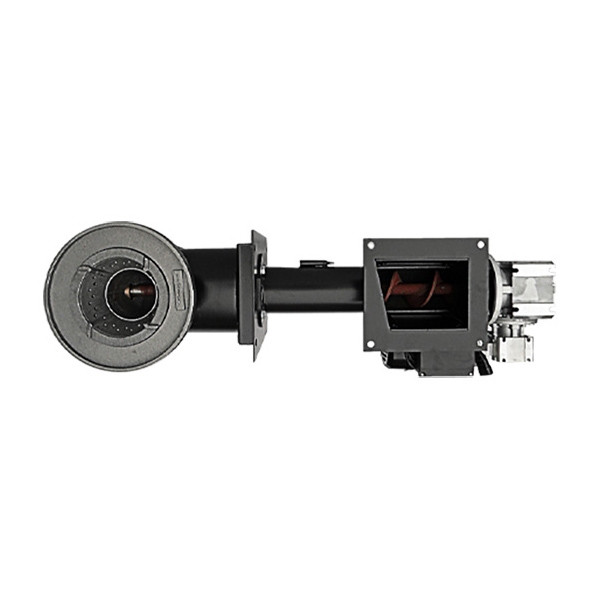

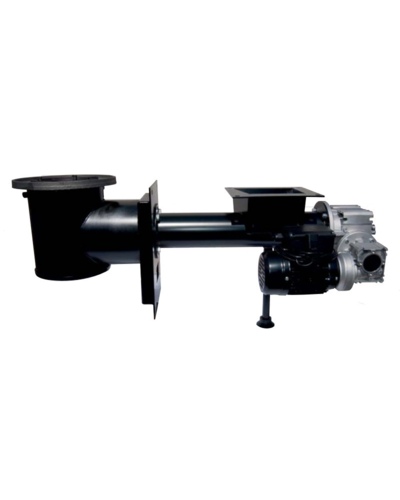

Automatic burner Pancerpol DUO 17 kW

A DUO burner with automatic solid fuel feed and a power of 17 kilowatts is designed for burning two types of fuel (fractional coal) and coal dust in heating boilers.

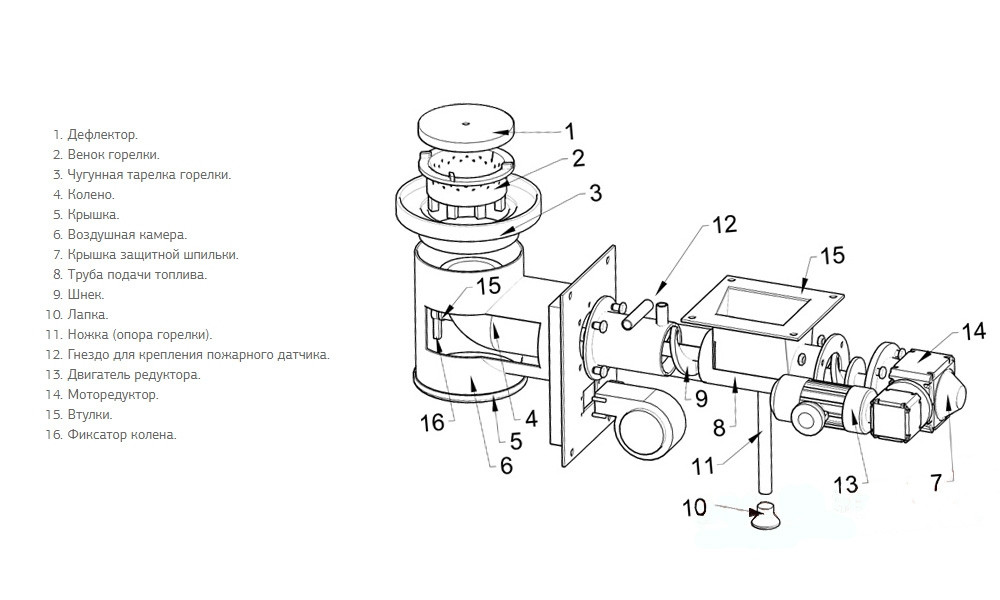

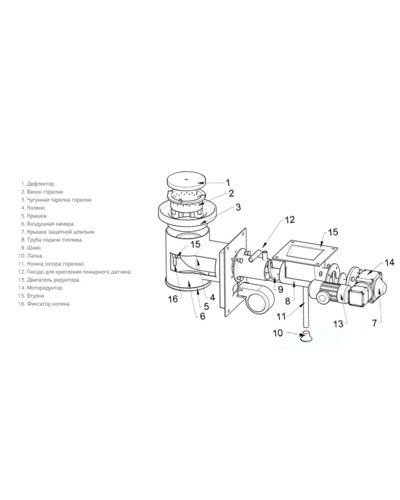

Design of the automatic burner type "DUO"

1. Deflector
2. Firebox plate

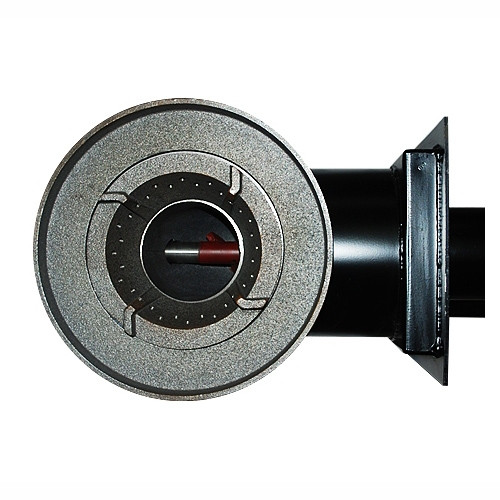

3. Firebox wreath
4. Knee
5. Lid
6. Air chamber
7. Pin shell
8. Feed pipe

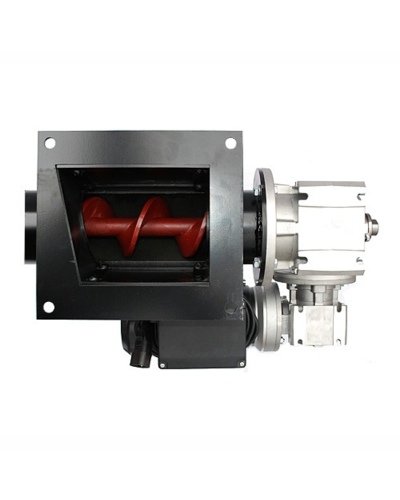

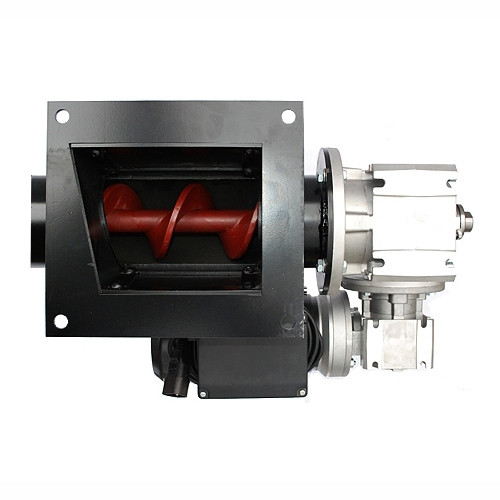

9. Screw
10. Feed plug
11. Serving leg
12. Fire hydrant coupling
13. Engine
14. Geared motor
15. Regeneration bushing
16. Leash

Features of the automatic burner "DUO"

• installation of the Pancerpol automatic burner in any
  Keywords: Pellet burner Pancerpol 17 kW DUO, Pellet boilers Pancerpol, Pellet burners Pancerpol, Pellet boilers, Pellet burners, components for heating equipment, spare parts for heaters
  Weight: 91 kg
  Brand: Pancerpol
  Voltage: 230 V AC / 50 Hz
  Power: 17 kW
  Power range: 17 kW
  Main type of fuel: coal, pellets, fines
  Material of crowns, bowls and knees: cast iron
  Maximum coal fraction size: up to 25 mm
  Ash melting point (pour point): not less than 1250C
  Ash content: up to 15%
  Maximum fuel moisture: up to 10%
  Maximum amount of fines in coal: up to 20%
  Deflector suspension height: 20 cm
