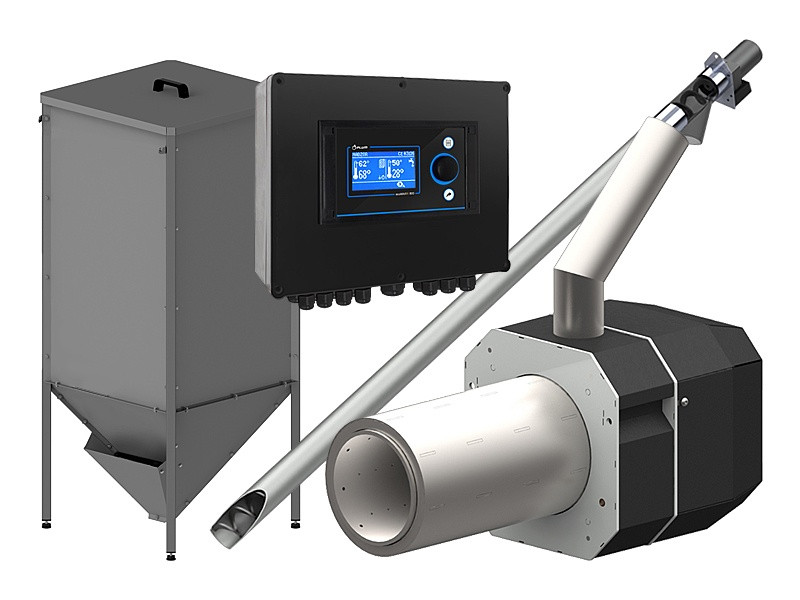

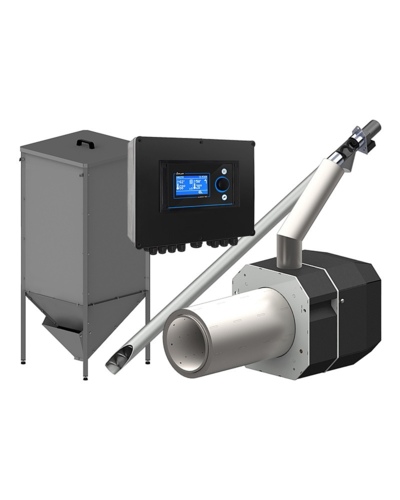

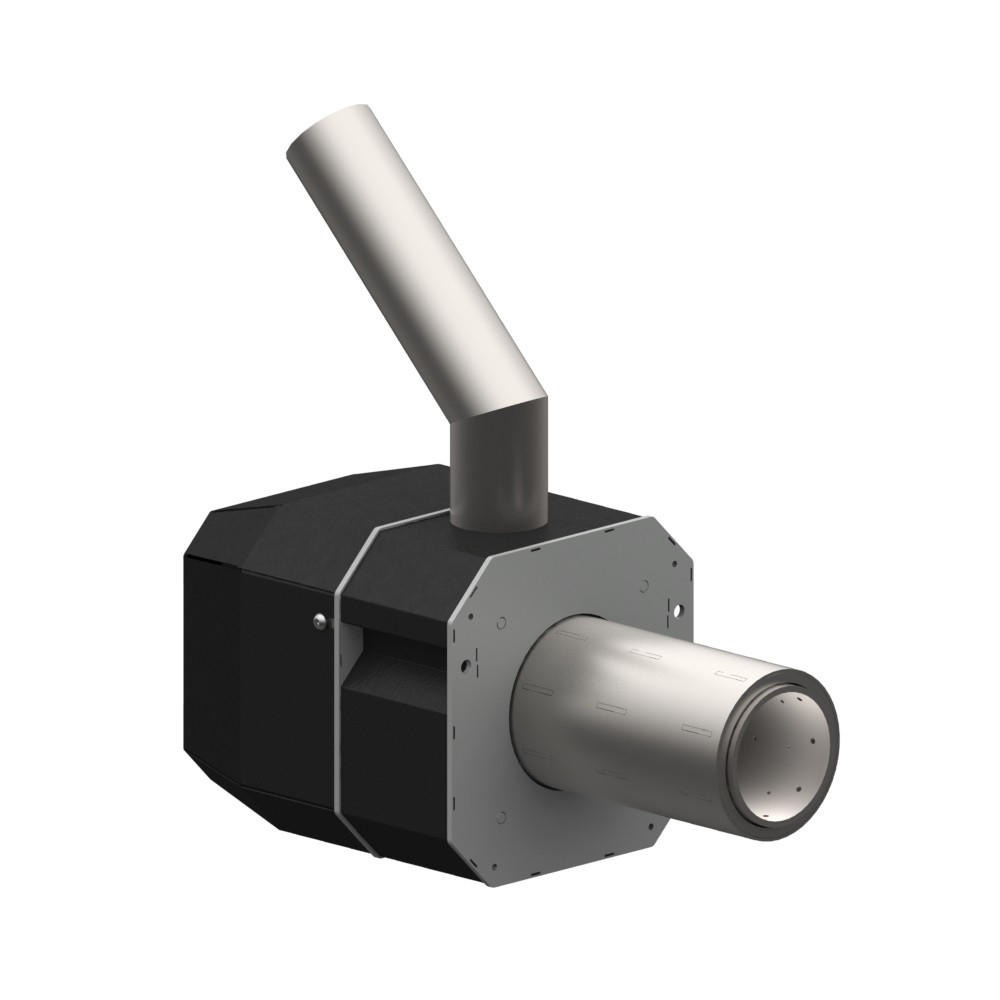

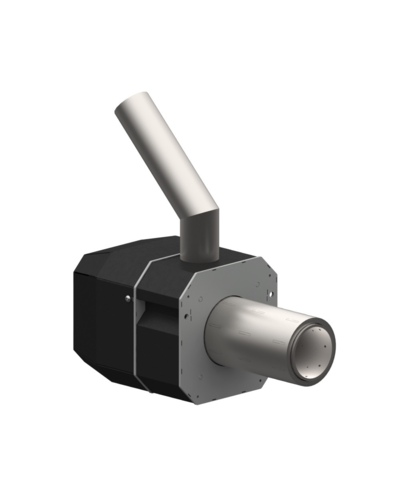

Pellet burner KIPI 150 kW

Automatic burner KIPI 150 kW

The KIPI pellet burner with a capacity of 150 kW is an automatic device designed for the correct and high-quality combustion of fuels such as pellets and agro-granules.

This heating equipment features innovative design solutions for the cleaning mechanism, the rotating combustion chamber, and the air chamber, allowing the burner to self-clean from ash and slag.

This solution, used in the device, guarantees trouble-free operation and extends its service life. Pellet heating is fully automated, requiring no cleaning, guaranteeing time savings and high user comfort.

Advantages of the KIPI automatic burner

• Maintenance-free operation
  Keywords: KIPI pellet burner 150 kW, KIPI pellet boilers, KIPI pellet burners, Pellet boilers, Pellet burners, components for heating equipment, spare parts for heating equipment,
  Brand: KIPI
  Voltage: 230 V AC / 50 Hz (6 A)
  Power: 100 kW
  DHW pump control: Yes
  Power range: 100 kW
  Main type of fuel: pellets 6-8 mm, granules 5-10 mm
  Average power consumption: 40 W
  Ignition power consumption: 150 W
  Burner power adjustment: (5 – 100%)
  Weather controller control: Yes (optional)
  Control: Yes, controller (PLUM)
  Pipe: Yes, Ø 60 x 750 mm
  Pellet feeder: Yes, Ø 60 x 1850 mm
  Control with room thermostat: Yes
  Central heating pump control: Yes

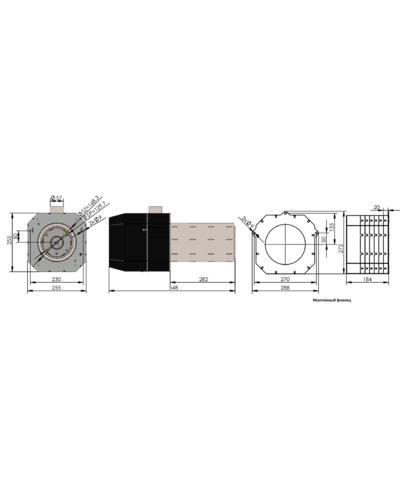

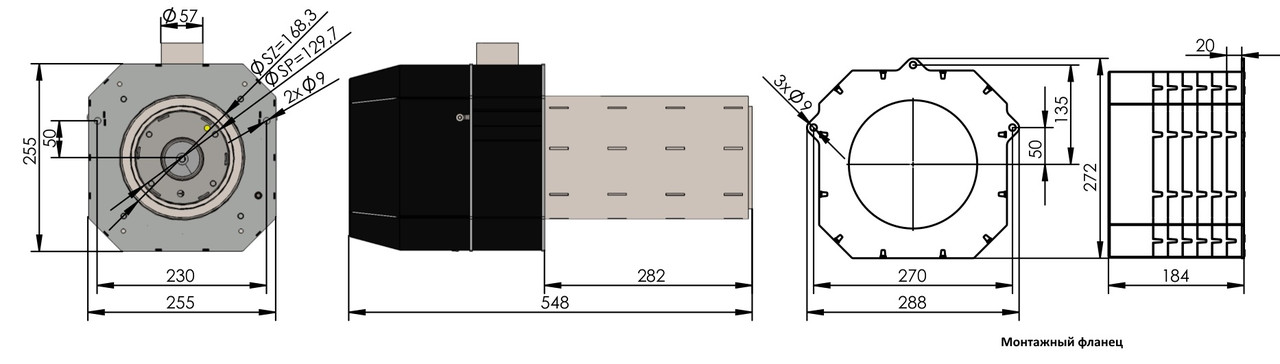

  Combustion chamber length: 282 mm
  Mounting diameter: 175 mm
  Outer chamber diameter: 168.3 mm
  Firebox diameter: 129.7 mm
