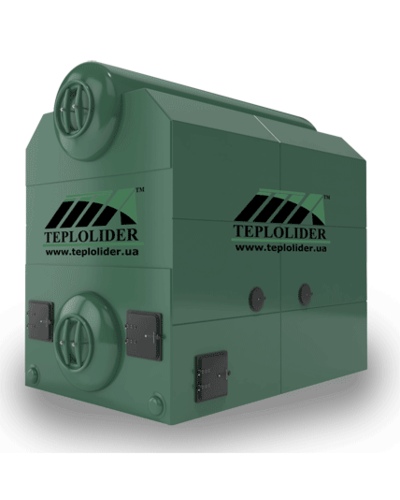

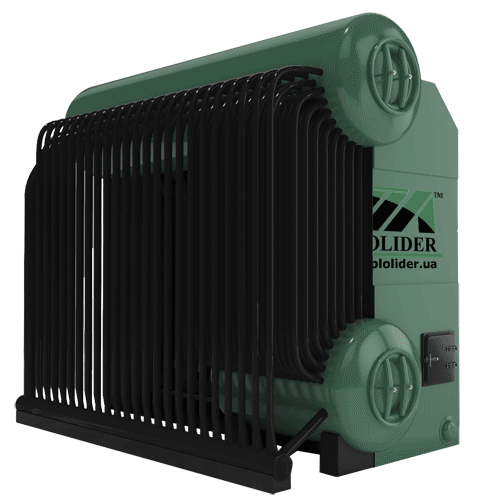

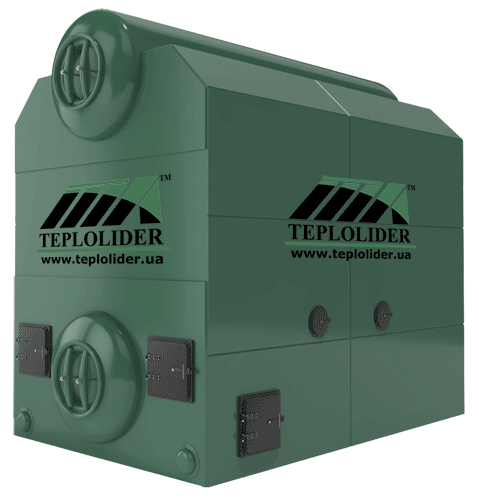

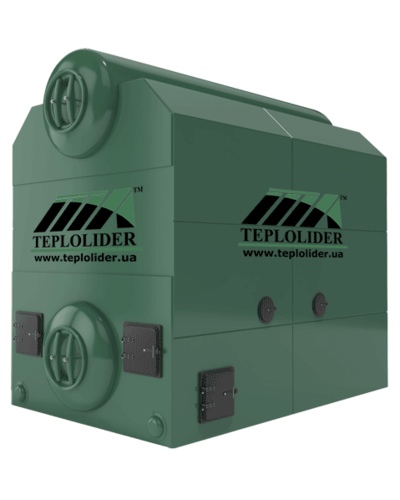

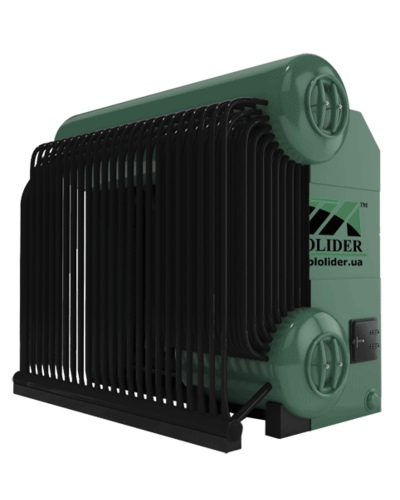

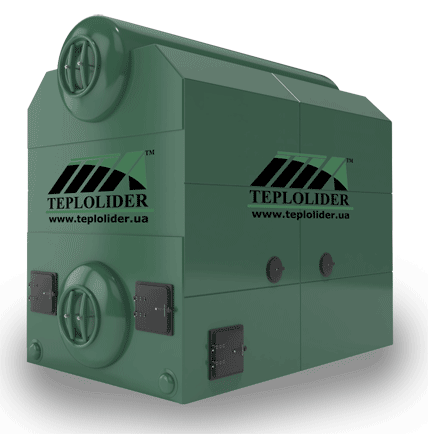

Steam solid fuel boiler KE-6.5-14

Similar Products:
Article: 000020802

225000грн

In Stock

Order
in one click

Type of steam boiler: Industrial Nominal power: 7.0 (MW) Country of manufacture: Ukraine Width: 4640.0 (mm) Height: 5190.0 (mm) Current frequency: 50 (Hz) Weight: 15.752 (t) Maximum temperature of the heat carrier: 194.0 (deg.) Steam output capacity: 7.0 (t/h) Length: 7940.0 (mm) Warranty period: 24 (months) Minimum operating pressure: 13.0 (bar) Maximum operating pressure: 13.0 (bar) Efficiency ratio: 81.0 (%) Type of industrial boiler by structural features: Water tube Types of solid fuel: Brown coal, pellets, bark, anthracite, oil shale, sawdust, hard coal, straw, husks, and husks Type of industrial boiler by fuel type: Solid fuel Type of heat carrier: Superheated steam Type of industrial boiler by type of heat carrier: Steam

Reviews: 0
Warranty:specify
Warranty Terms
Why Kotel-Prom?

  • All products are certified

  • Quality first

  • Return within 14 days

  • Warranty on all products

Delivery options:

  • Self-pickup(map)

  • Courier delivery in Kharkiv

  • Delivery across Ukraine

Payment methods

  • Cash on delivery

  • Non-cash payment

  • Bank transfer to card

  • Bank transfer to current account

The KE-6.5-14 solid fuel steam boiler is used in industrial settings to generate steam and hot water for residential and administrative buildings. The KE-6.5-14 solid fuel boiler has a capacity of 6.5 tons of steam per hour and an operating pressure of 1.3 MPa. In addition to the firebox, the KE-6.5-14 steam boiler also has an afterburner chamber, which combusts gases released from the fuel that were not burned in the firebox, increasing boiler efficiency to 85%.

Technical characteristics of the KE-6.5-14 solid fuel steam boiler

Boiler type KE-6.5-14
Working pressure, MPa (kgf/cm²) 1.3 (13)
Steam capacity, t/h (MW) 6.5 (4.37)
Steam temperature, °C 194
Efficiency,%, not less than 80.8 Key words: Steam solid fuel boiler KE-6, 5-14, boiler KE, steam boiler, steam boiler KE, solid fuel boiler, boiler of the KE series, Steam solid fuel boiler, steam solid fuel boiler KE, industrial
Country of origin: Ukraine
Weight: 15.752 (t)
Height: 5190.0 (mm)
Width: 4640.0 (mm)
Warranty period: 24 (months)
Nominal power: 7.0 (MW)
Efficiency: 81.0 (%)
Maximum working pressure: 13.0 (bar)
Current frequency: 50 (Hz)
Length: 7940.0 (mm)
Types of solid fuel: Brown coal, Pellets, Bark, Anthracite, Oil shale, Sawdust, Coal, Straw, Husks, Sunflower husks, Peat, Coke, Firewood, Briquettes, Wood chips, Buckwheat husks
Minimum working pressure: 13.0 (bar)
Industrial boiler type by fuel type: Solid fuel
Type of industrial boiler by type of coolant: Steam
Type of industrial boiler by design features: Water-tube
Type of coolant: Superheated steam
Steam boiler type: Industrial
Steam capacity: 7.0 (t/h)
Maximum coolant temperature: 194.0 (deg.)
