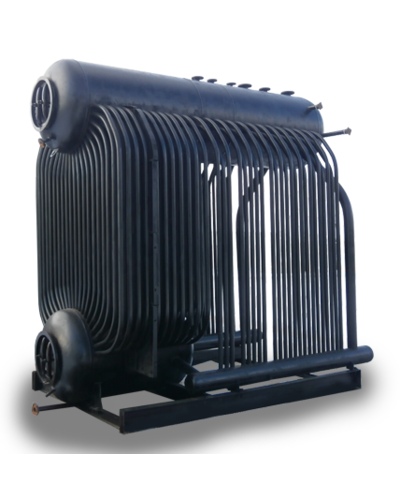

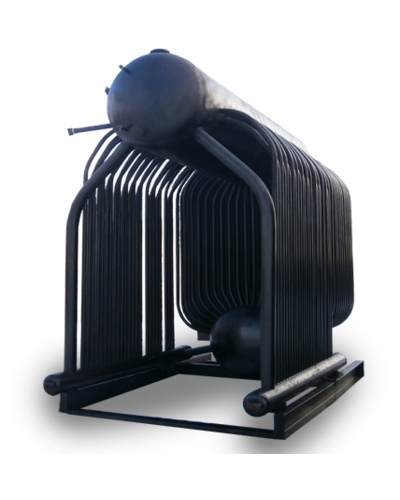

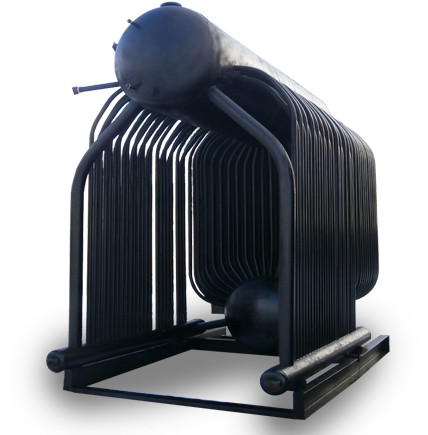

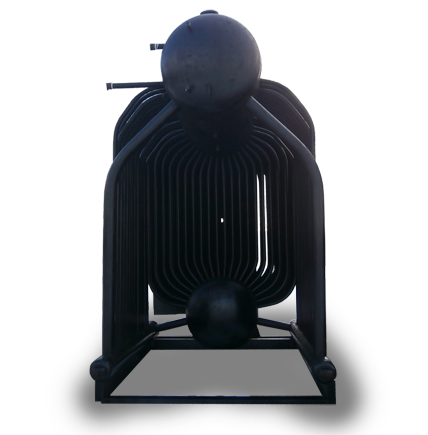

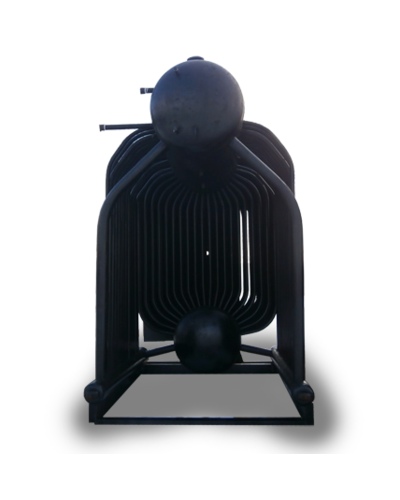

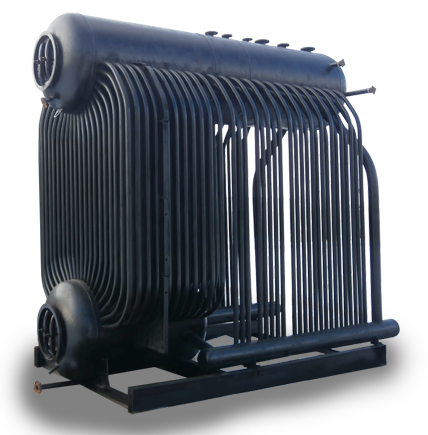

Steam boiler DKVR-6.5-13 GM on gas (gas)

The DKVR-6.5-13 GM boiler (DKVR stands for a reconstructed two-drum water-tube boiler, 6.5 stands for steam capacity, 13 stands for steam pressure, and GM stands for gas or fuel oil-fired) is used to generate superheated steam in industrial plants. The DKVR-6.5-13 boiler is a two-drum, vertical water-tube boiler with non-forced water circulation. Water circulation in the boiler is achieved by the pressure difference between the drums. Steam is generated in the upper drum. The DKVR-6.5-13 boiler has a firebox with a gas burner, where the fuel combustion process occurs, and an afterburner chamber, which serves to improve thermal energy transfer, increasing the efficiency of the DKVR-6.5-13 boiler to 92%.

After installation in the boiler room on a dedicated platform, DKVR boilers are encased in firebrick. As a result, these boilers are not exposed to external climatic conditions, extending their service life to 25 years with regular maintenance.

This steam boiler is characterized by its simplicity
Key words: Steam boiler DKVR-6, 5-13 GM on gas (gas), steam boiler, boiler, boilers DKVR, steam boilers DKVR, steam boiler for heating, steam boilers, steam boilers on solid fuel, industrial boilers
Country of origin: Ukraine
Weight: 11.206 (t)
Height: 5530.0 (mm)
Width: 8526.0 (mm)
Warranty period: 24 (months)
Efficiency: 91.0 (%)
Maximum working pressure: 13.0 (bar)
Current frequency: 50 (Hz)
Length: 8526.0 (mm)
Industrial boiler type by fuel type: Gas
Type of industrial boiler by type of coolant: Steam
Type of industrial boiler by design features: Water-tube
Type of coolant: Superheated steam
Steam boiler type: Industrial
Steam capacity: 6.5 (t/h)
Maximum coolant temperature: 194.0 (deg.)
Types of gas fuel: Petroleum, Liquefied, Natural, Other non-aggressive gases
