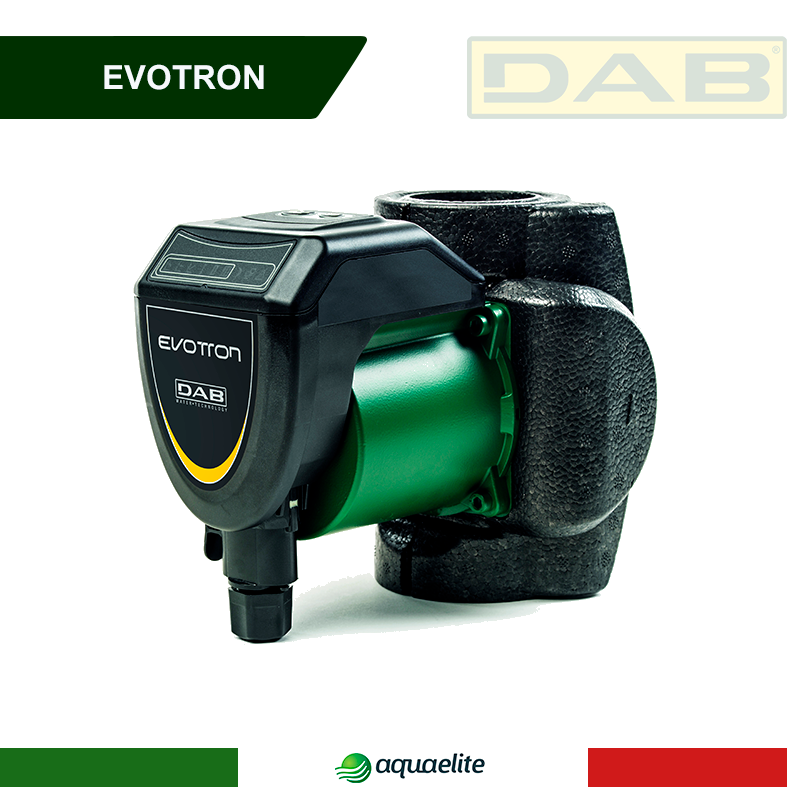

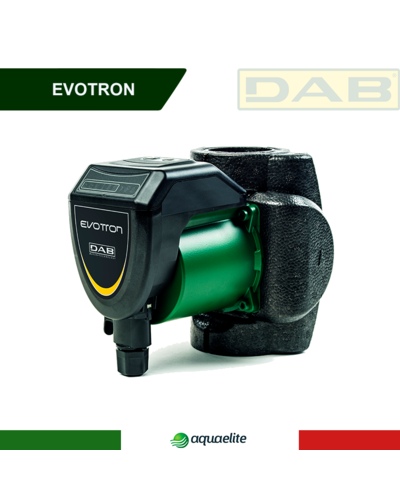

DAB Evotron 80/150 SAN DHW pumps, electronic control

Purpose: Designed specifically for individual heating, cooling and hot water supply systems (SAN models).
Operating range: Capacity - from 0.4 to 75.6 cubic meters/hour Pressure - up to 18 m of water column Maximum operating pressure: 16 bar
Pumped liquid: Composition - Clean, free of solids and mineral oils, non-viscous, chemically neutral, similar in characteristics to water. (max. glycol content 30%) Temperature - from -10 to +110 degrees C
Main materials: Hydraulic body - cast iron, Impeller - technopolymer, Rotor - stainless steel, Seal - EPDM, Motor casing - stainless steel.
Features: The pump is equipped with a highly efficient, synchronous electric motor with permanent magnets and electronic control. A "night mode" with low power consumption is supported.
Keywords: hot water supply pumps, hot water supply pump, hot water supply pumps, hot water circulation pump, DAB pump, DAB VS, hot water supply pumps, DAB Evotron
Country of origin: Italy
7.8 months
24: cubic meters/hour
4.2: kW
