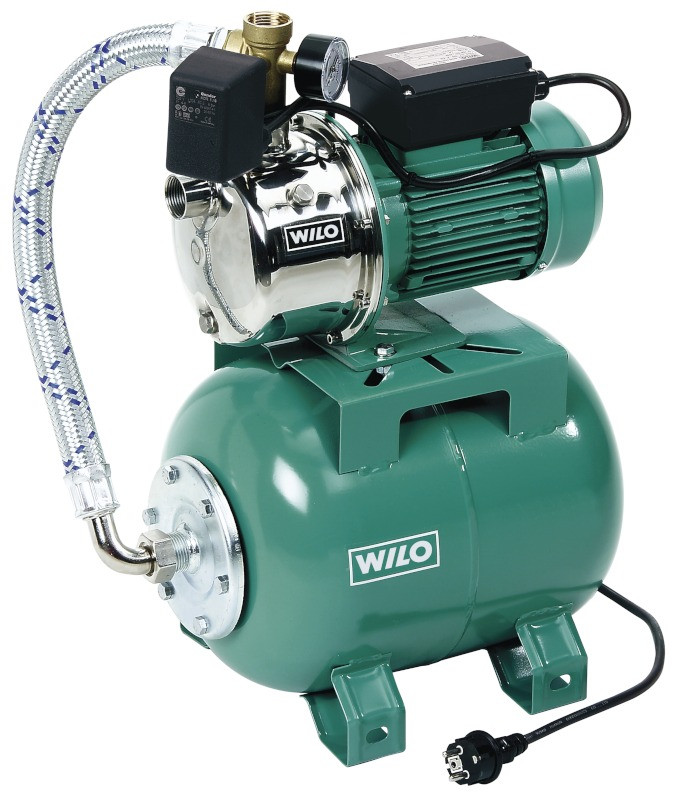

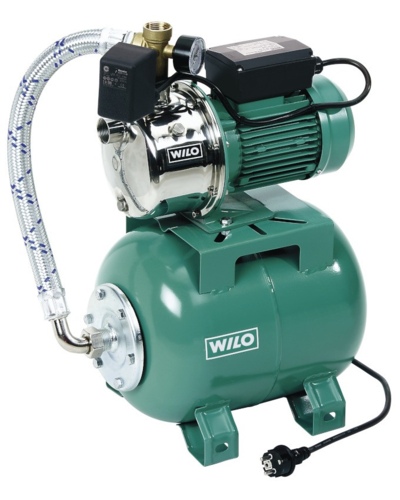

Pumping station WILO HWJ 201 EM

Pumping station WILO HWJ 201 EM

A stationary water supply system for pumping water in suction mode (e.g., from a well) or pressurized mode (e.g., from an open reservoir). Once the pressure switch is set, further operation of the system for water supply or pressure maintenance occurs automatically. Ideal for use in garden plots.

Technical data
Acceptable pumped media - Clean water without sediment
Pump body - Stainless steel 1.4301
Impeller - Stainless steel 1.4301
Pump/motor shaft - Stainless steel 1.4005
Seal (STU) - Graphite / Ceramics
Tank 25/60 l. - Painted steel
Membrane - Rubber

Functions
The Wilo-HWJ unit is used to supply water in suction mode from wells, cisterns or in pressurized mode (inlet pressure max. 1 bar) from open storage tanks, as well as to maintain the required pressure in the
Keywords: WILO HWJ 201 EM pumping station, booster pumps, pumping station, hydrophore, pumps for water supply, Wilo pumps, Wilo HWJ, Wilo pumping station, HWJ 201, booster pumps, pumps, Wilo,
Country of origin: Germany
Brand: Wilo
Pump type: Pumping station
Pump installation method: Surface
Maximum head: 40.0 m
Capacity: 2.6 cubic meters/hour
Power consumption: 800.0 W
Mains voltage: 220~240 V
Frequency: 50.0 Hz
Pressure increase: Yes
Depth to water surface: 7.0 m
Water quality: Clean
Weight: 16.9 kg
Hydraulic tank capacity: 25.0 l
Pump installation: Horizontal
Case material: Stainless steel
