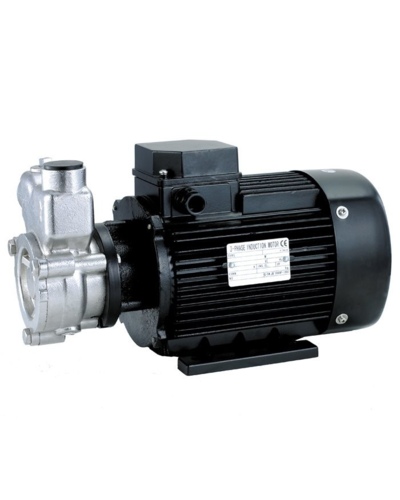

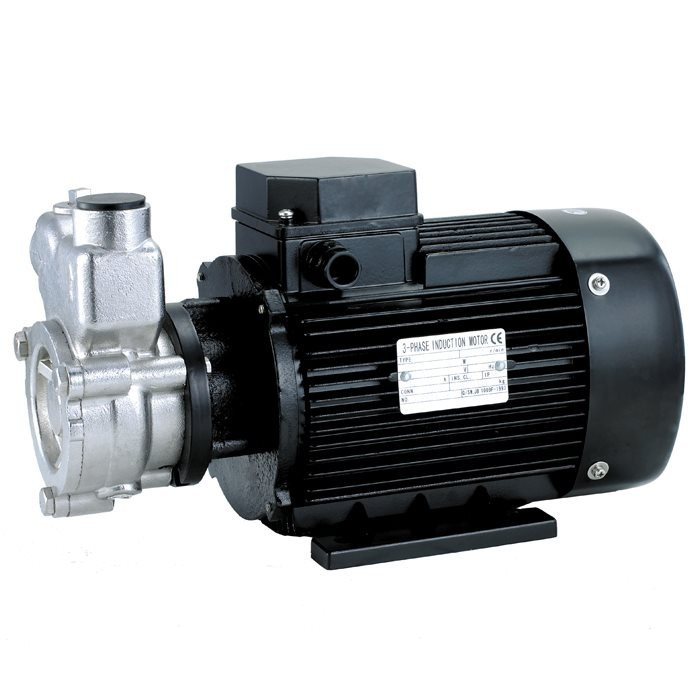

Self-priming vortex electric pumps VARNA series QY / QYB made of stainless steel ( gas-liquid electric pumps - mixers )

Description

QY/QYB series pumps:

• They can suck in water simultaneously with gas and under high pressure, mixing them inside themselves, forming ultra-fine bubbles of 20-30 microns;
• They have stable performance, high efficiency and low noise levels;
• The efficiency of formation of gas-liquid mixture is significantly higher than obtaining it by traditional methods;
• When used in systems for preparing and pumping gas-liquid mixtures and suspensions, they can significantly reduce equipment costs. Air compressors, various mixers, and high-pressure air tanks can be eliminated, and problems associated with unstable and inconsistent flow are eliminated.
  Keywords: VARNA 25QYB-2 SS Self-priming gas-liquid pump, Surface electric pumps, Industrial electric pumps, VARNA 25QYB-2 SS Self-priming gas-liquid pump, gas-liquid, n
  Weight: 48 kg
  Height: 327 mm
  Width: 165 mm
  Warranty period: 24 months
  Mains voltage: 380~400 V
  Case material: Stainless steel
  Maximum pressure: 60 m
  Capacity: 3.5 cubic meters/hour
  Maximum ambient temperature: 40 degrees.
  Current frequency: 50 Hz
  Pump installation: Horizontal
  Maximum working fluid temperature: 120 degrees.
  Rotor type: "Dry"
  Overheat protection: yes
  Power consumption W: 1.1 kW
  Length: 340 mm
  Protection class: IP55
  Minimum working fluid temperature: -15 degrees.
  Impeller Material: Stainless Steel
