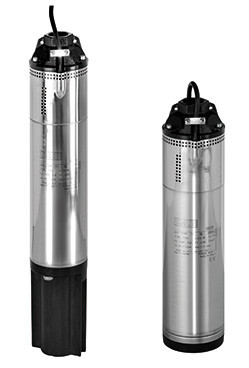

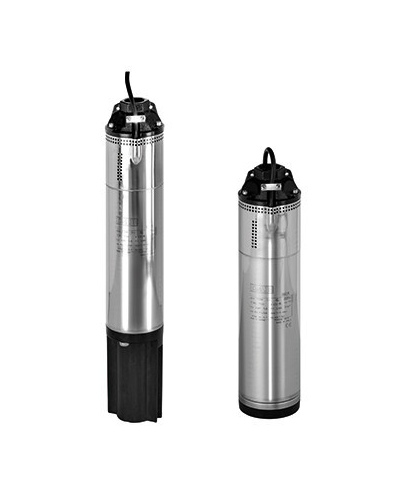

DAB IDEA 100M submersible deep well pump (Italy)

DAB IDEA borehole pumps are the successors to the once-famous TURBINEL pump series. These pumps feature a single vortex impeller, which provides significant head pressure at medium flow rates. Single-phase versions have a starting capacitor located inside the pump, eliminating the need for additional start-up protection devices. Three-phase models require external protection. The IDEA pump is supplied complete with a nylon rope and 15-meter cable. The small model range, however, allows for the selection of a pump for water supplying a small area (with a nominal flow rate of approximately 1.2-1.5 m³/h). The main purpose of this series of pumps is to irrigate the area and fill tanks. However, the IDEA can also be used to create an automatic water supply system with
Keywords: Deep well pump, deep well pump, Grundfos SP 8A-18, deep well pumps Grundfos, Grundfos pumps, GRUNDFOSS pumps, deep well pumps Grundfoss, industrial pumps, stainless steel pumps, stainless steel pumps
Country of origin: Italy
52 months
24: cubic meters/hour
380~400V: kW
0.75: Hz
