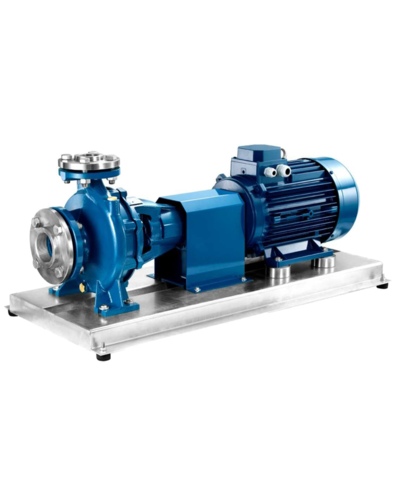

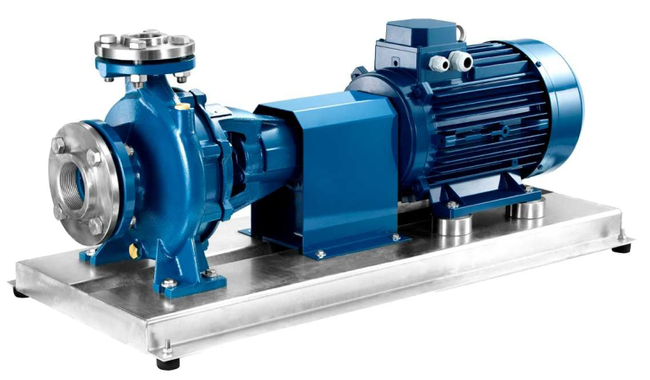

Centrifugal cantilever pump "Foras" MA80-160D 50Hz + MOT. 11 kW 400/690-50 2P

Description:
It is designed for supplying, under stationary conditions, clean or slightly turbid water with a pH of 6...9 and other liquids similar to water in density, viscosity and chemical activity, containing solid inclusions up to 0.2 mm in size, the volume concentration of which does not exceed 0.1%, non-aggressive to the material of the pump's flow part - cast iron.

Application:
Electric pumps of the MA and 4MA series from FORAS are designed for:

Water supply and water treatment systems;
Fire fighting equipment;
Air conditioning and heating systems;
Sprinkler and irrigation systems;
Technological processes;
Pumping in water cooling systems and pumping of industrial and domestic water
Design features:
Due to the technological design, dismantling of the bearing unit with the impeller and sealing unit can be performed without disconnecting the electric pump body from the pipelines;
The design uses 4 standard sizes of bearing housings and shafts, which makes the parts interchangeable;
The impeller has an optimal design, the inlet pipe is enlarged, which eliminates turbulence, reduces NPSH, makes the operation of the electric pump stable and low-noise;
The housing and flange are equipped with wear-resistant rings that can be replaced during repairs, simplifying maintenance and extending the service life of the components. The replaceable mechanical seal and O-ring also extend the pump's service life.
