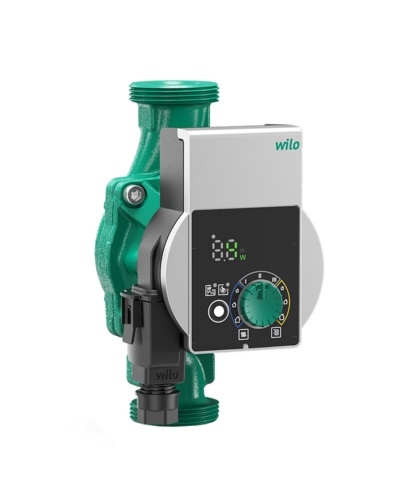

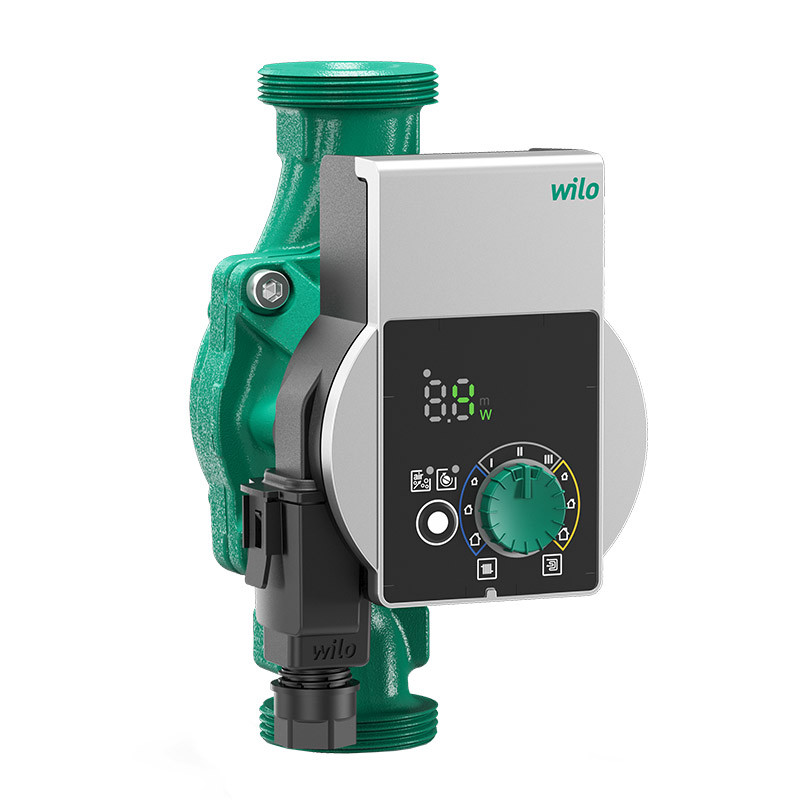

Energy-saving pump Wilo Yonos PICO 25/1-8-180

Energy-saving pump Wilo Yonos PICO 25/1-8-180

The energy-saving Wilo Yonos PICO pump is a maintenance-free, electronically controlled, wet-rotor circulation pump with a threaded connection. It features a blocking-current-resistant, synchronous motor with ECM technology and a built-in electronic power control system for smooth adjustment of pressure fluctuations.

Technical characteristics of the energy-saving pump Wilo Yonos PICO 25/1-8-180

Materials Keywords: Wilo Yonos PICO 25/1-8-180 energy-saving pump, Wilo pumping equipment, Wilo energy-saving pumps, Pumping equipment, Energy-saving pumps, household pumps, submersible borehole pumps
Brand: Wilo
Maximum pressure: 8 m
Connection type: 1”
Maximum working pressure: 10 bar
Water quality: Clean
Material: Cast iron
Voltage: 230V/50Hz
Purpose: Heating
Protection class: IP X4D
Pump location: Surface
Minimum water temperature: 2 °C
Maximum water temperature: 110°C
Current consumption: 0.19 A
Installation type: Vertical

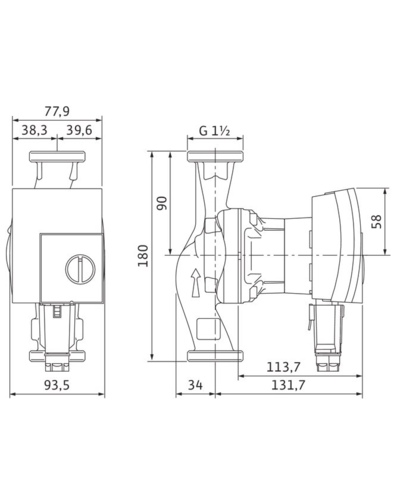

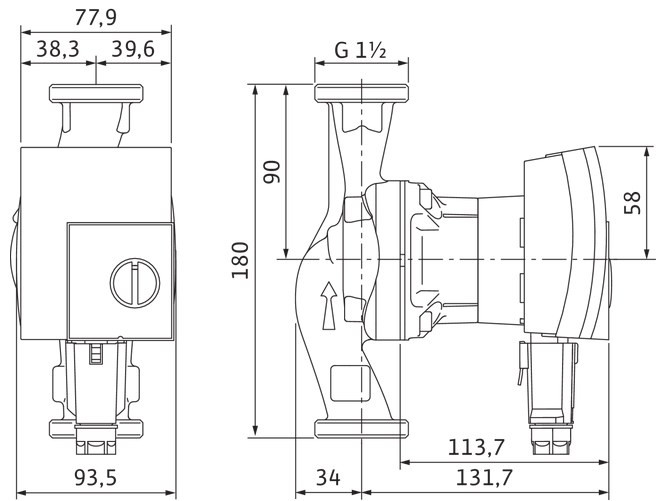

Installation length: 180 mm
Maximum flow: 5 m3/h
Energy efficiency index: ≤ 0.16
