Blower fan MplusM G2E 180-EH-03-01 (KZW, U, 2.0 m)

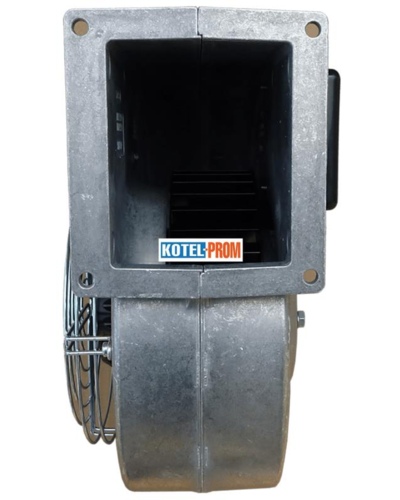

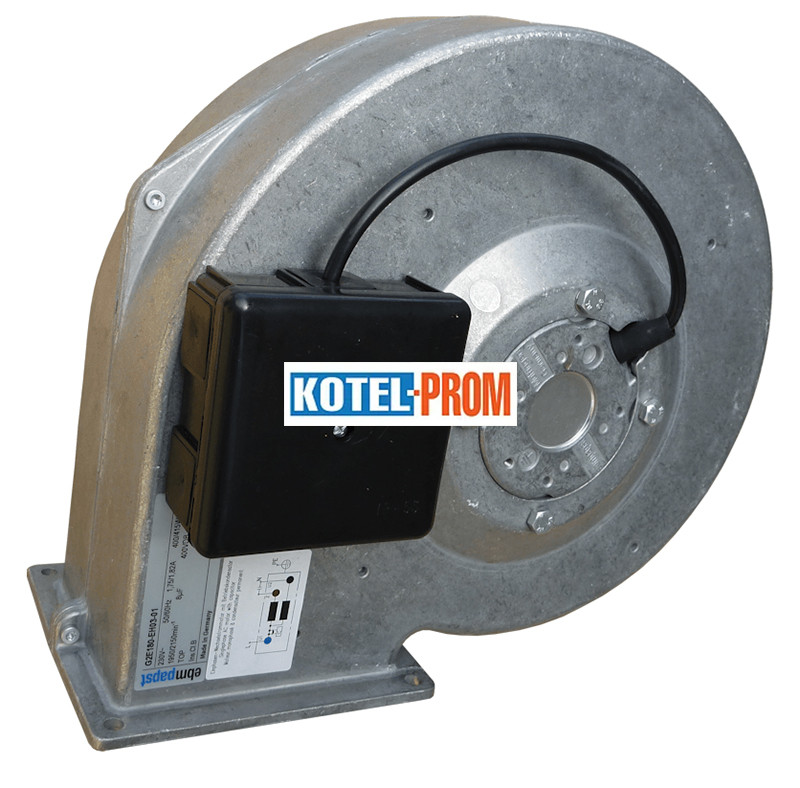

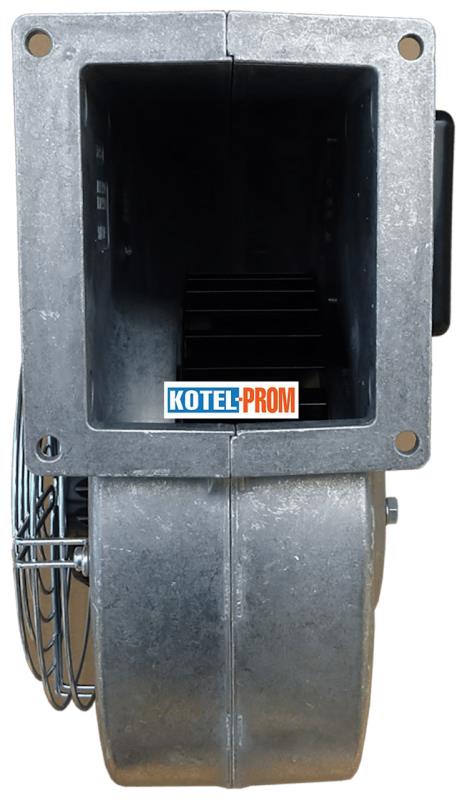

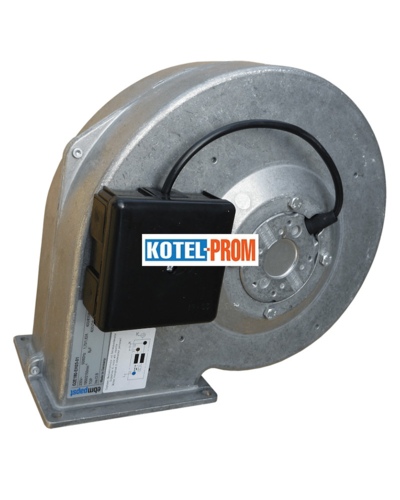

The Polish-made MplusM G2E 180 blower is a specialized device designed to move air into the heat exchanger's combustion chamber. The centrifugal turbine consists of two main components: an aluminum casing and a rotary motor housed within. The latter is manufactured in Germany and designed for a maximum airflow of 760 m³/h. A protective mesh is installed at the turbine inlet to prevent small particles from entering the fan. Openings on the outlet flange ensure easy mounting of the device.

Features of work

The centrifugal turbine is connected to the control unit, so its operation is controlled automatically. By precisely
Keywords: Blower fan MplusM G2E 180-EH-03-01 (KZW, U, 2.0 m), Heating, Accessories for heating equipment, Fans, accessories for heating equipment, spare parts for heating
Condition: New
Purpose of the component: For solid fuel boilers
Component type: Fan
Body material: Aluminum
Connection type: Flanged
Nominal voltage: 220 V
Power consumption (W): 400
Warranty period (months): 24
Maximum ambient temperature (deg.): 40
Operating principle of the fan: Blower
Impeller material: Steel
Productivity (cubic meters/hour): 760
Maximum working pressure (Pa): 0.007
Country of engine manufacture: Germany
Rotation speed (rpm): 1950
Minimum ambient temperature (deg.): -25
Engine manufacturer: EbmPapst
Engine type: R2E 180-CH03-01
Capacitor capacity (μF): 8
Industrial fan design type: Radial (Centrifugal)
