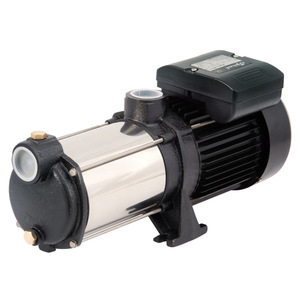

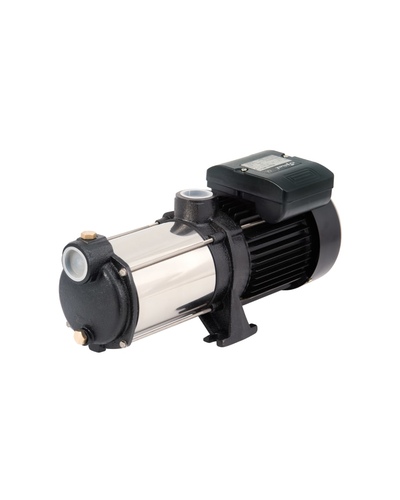

MRS-H Sprut MRS-H3

self-actuating centrifugal electric pumps with a wide range of accessory parts

24 MONTH WARRANTY

Limitation

• medium: water or other mediums similar to water in terms of thickness and chemical activity
• complete mineralization of water, no more than 1500 g/m³
• indicator pH 6.5 – 9.5
• instead of mechanical houses, no more than 0.01%
• maximum size of parts, no more than 0.2 mm
• maximum temperature: + 40 °C
• maximum core temperature: +40 °C
• maximum working vice: 0.7 MPa (7 bar)

Design characteristics

• monoblock horizontal ample steps are important
• pump chamber housing made of cast iron and stainless steel
• rotating wheel - centrifugal, closed type, made from high-quality technopolymer NORYL
• shaft made of stainless steel AISI 304
• reinforced end - graphite / ke
  Key words: Surface electric pumps, MRS-H
  Rotor type: dry
  Maximum tightness: 950
  Maximum pressure: 38
  Maximum productivity: 8.1
  Minimum heating temperature: 1
  Maximum temperature when heated: 40
  Optimal pressure: 25.1
  Outlet pipe diameter: G1Вј-B
  Optimal productivity: 4.8
  Maximum size of patches: 0.2
  Inlet pipe diameter: G1Вј-B
  Placement type: surface
  Water type: pure water
  Principle of action: central
  Type of pipe connection: thread
  Installation height: 8
