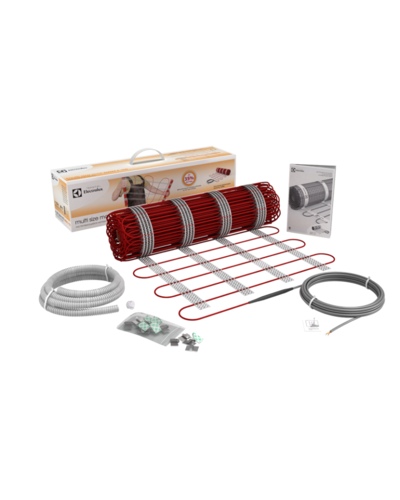

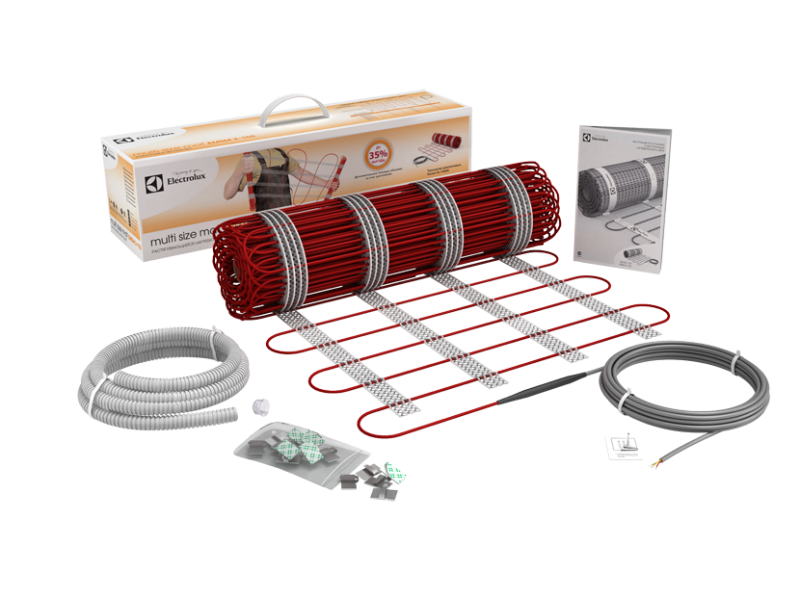

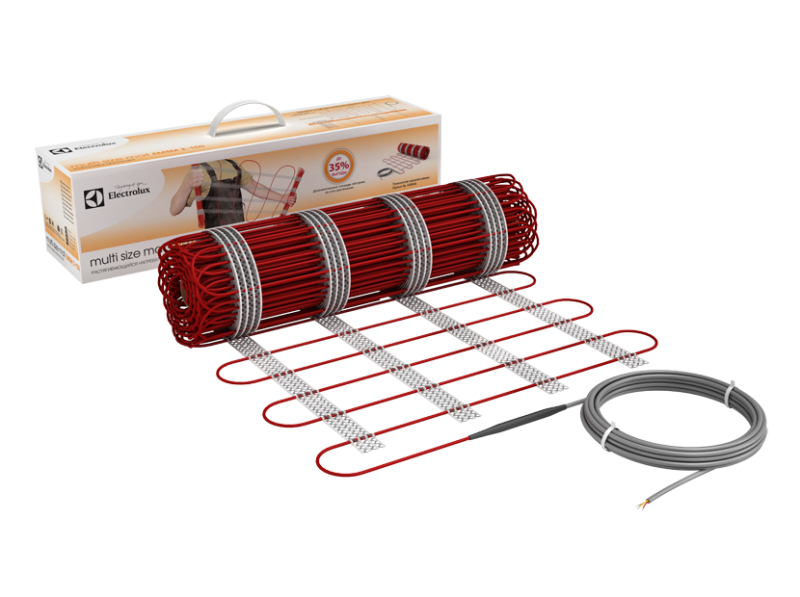

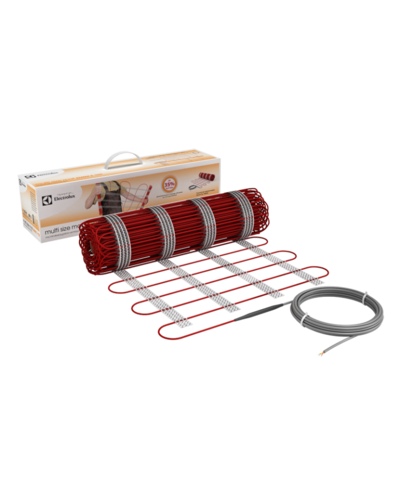

Electrolux Multi Size EMSM 2-150-0.5 Heating Mat

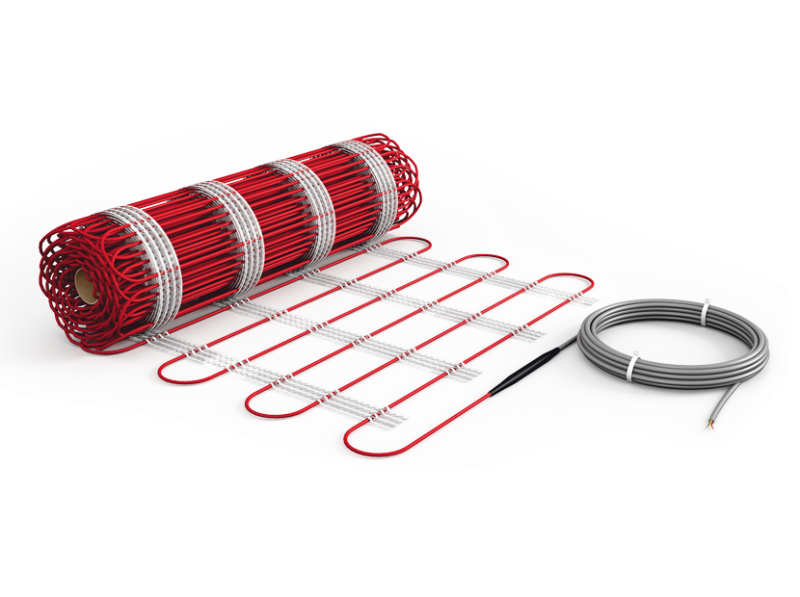

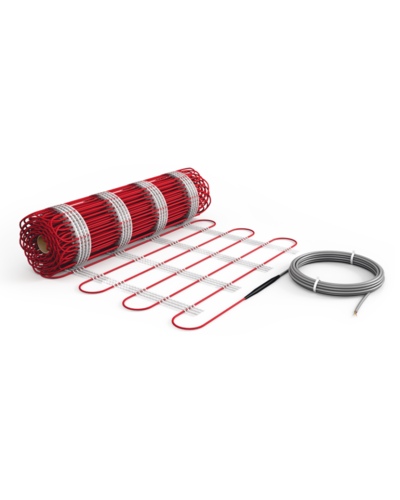

The MULTI SIZE MAT series is an ultra-thin heating mat with an elastic base. Its unique stretchable design allows the mat's length to be adjusted from 10% to 35% of its original length, thereby varying the heating area and power output from 150 W/m² to 111 W/m². Suitable for installation under any flooring, including wood.

Unique stretch base up to 35%.

Unlike mesh mats, elastic-backed mats allow for a variety of installation patterns: from a traditional rectangular shape to a diamond or trapezoidal pattern. This allows for easy installation of underfloor heating systems with complex geometries. This is particularly convenient for installing underfloor heating in rooms with irregular dimensions, such as bathrooms, hallways, or kitchens with large appliances. The mat's woven backing
Keywords: Electrolux Multi Size EMSM 2-150-0.5 heating mat, Heating mats and sections, Warm floor, Electrolux, Electrolux heating mats and sections, Electrolux warm floor, heating cables and m
Brand: Electrolux
Country of origin: Israel
Series: Multi Size
Heating area, sq.m.: 0.5
Resistance, Ohm: 645.3
Cable type: two-core shielded
Mat thickness, mm: 3.5
Length of power connection cable: 2
Power voltage (V/Hz): 220-240/50
Power, W: 75
Protection level: IPX7
Specific power, W/sq.m.: 150 - 111 (depending on stretching)
Laying step, cm: 7.4 - 10
Length, mm: 1000
Width, mm: 500
Weight, kg: 0.475
Condition: New
