 →  →  → Altek ACM6048 Solar Panel Battery Charge Controller, 130x188x62mm

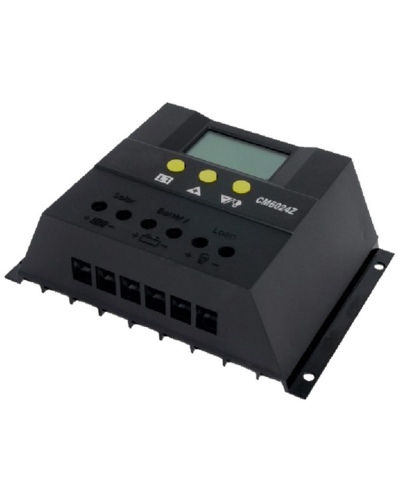

Altek ACM6048 Solar Panel Battery Charge Controller, 130x188x62mm

Similar Products:
Article: 000024210

3288.9грн

In Stock

Order
in one click

Losses in idle mode: <30 mA Low voltage connection: 50.4 V Nominal voltage: 48 V Size: 130x188x62 mm Distance between mounting holes: 98x178 mm — F5 Rated current: 60 A Operating temperature: -20~50°С Storage temperature: -30~70°С Country of manufacture: China Humidity: ?90% Voltage drop in the circuit: ?200 mV Open-circuit voltage: 54.8 V V Maximum voltage of the solar panel: ?100 V Low voltage shutdown: 42.8 V

Reviews: 0
Warranty:specify
Warranty Terms
Why Kotel-Prom?

  • All products are certified

  • Quality first

  • Return within 14 days

  • Warranty on all products

Delivery options:

  • Self-pickup(map)

  • Courier delivery in Kharkiv

  • Delivery across Ukraine

Payment methods

  • Cash on delivery

  • Non-cash payment

  • Bank transfer to card

  • Bank transfer to current account

The CM series controller is an intelligent, multifunctional device for regulating the charge and discharge of solar chargers. The family features a built-in LCD display with a user-friendly interface, allowing flexible configuration of various control parameters to perfectly meet your operational requirements. The CM series controller offers the following features:

Displaying graphic symbols on the LCD

Simple push-button control

Automatic identification system voltage level

Intelligent PWM charging mode

Automatic temperature compensation

Adjustable charge-discharge control parameters

Specified operating load mode


Keywords: Altek ACM6048 Solar Panel Battery Charge Controller, Solar Panel Controllers, Solar Panels and Accessories, Alternative Energy Sources, Charge Controller
Country of origin: China
Nominal voltage: 48 V
Operating temperature: -20~50°C
Size: 130x188x62 mm
Rated current: 60 A
Open circuit voltage: 54.8 V
Storage temperature: -30~70°C
Humidity: ?90%
Low Voltage Connection: 50.4V
Low Voltage Shutdown: 42.8V
Idle losses: <30 mA
Voltage drop in the circuit: ?200 mV
Maximum solar panel voltage: ?100V
Distance between mounting holes: 98x178 mm - Ф5
