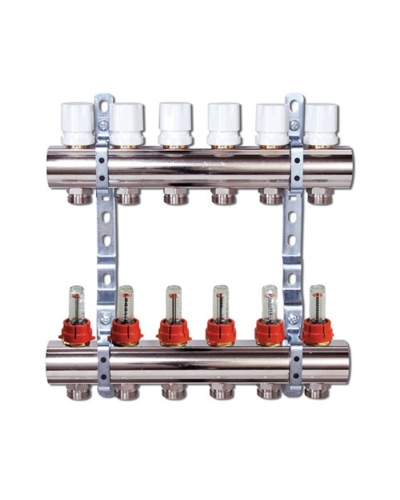

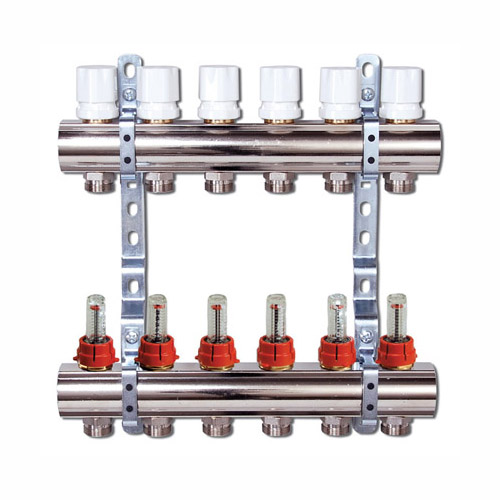

Luxor 9-way manifold with flow meters, 2 pcs.

Luxor 9-way manifold with flow meters, 2 pcs.

Luxor (Italy) underfloor heating manifolds are used to distribute and regulate heat transfer fluid in radiator heating systems (radiant heating) and underfloor heating systems. They offer a complete line of equipment for plumbing and heating systems.

A variety of configuration options provide maximum selection flexibility and reduce installation time. The compact size of the manifold assemblies allows for space savings without compromising the system's efficiency and reliability.

Luxor underfloor heating manifolds with integrated flow meters

Collectors for underfloor heating with built-in flow meters have the ability to adjust each individual circuit with
Keywords: Luxor 9-output manifold with flow meters, 2 pcs., Luxor underfloor heating system, Luxor manifold groups, Underfloor heating system, Manifold groups, manifolds, manifold with tap, distribution combs
Brand: Luxor
Number of contours: 9
Maximum working pressure: 10 bar
Maximum operating temperature: 110°C
Body material: brass
Connection: 1”
Distance between holes: 55 mm
Output size: 3/4”
