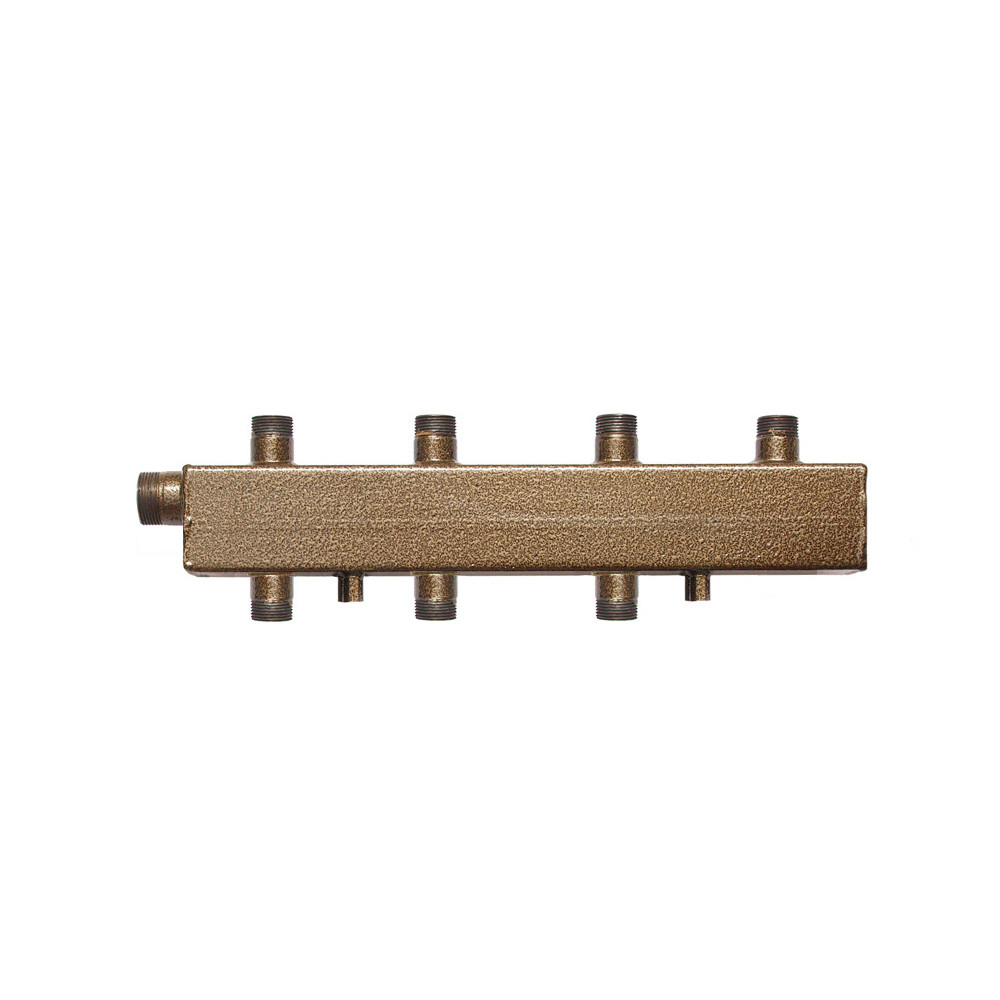

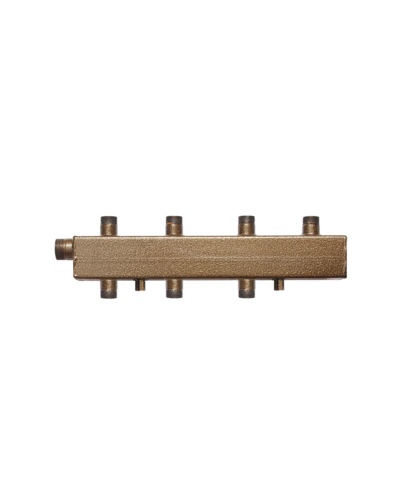

Heating manifold SK-292.150

Heating manifold SK-292.150

Manifold systems are used to distribute heat transfer fluid in any type of heating system. The heat transfer fluid can be any liquid, but water is most commonly used. Manifolds are made of steel, hydraulically tested to 10 bar, and powder-coated, with an antique copper finish and lacquer finish.

Heating manifold equipment SK-292.150

• upper exits - 2
• lower outputs - 1
• boiler outlet - 1

Distribution manifold

Once the boiler manifold for heating has been correctly selected, then to start the entire combined heating system, it is only necessary to provide a correctly selected manifold cabinet, as well as a valve that shuts off the circuit to allow for further repair work.
Keywords: Heating manifold SK-292.150, Termojet quick installation groups, Termojet heating manifolds, quick installation groups, heating manifolds, manifolds, manifold with valve, distribution groups
Brand: Termojet
Material: steel
Temperature range: up to 95ºC

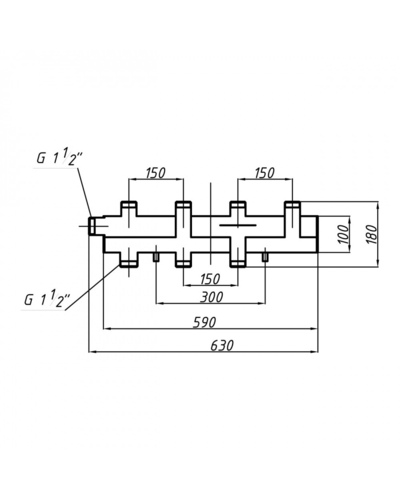

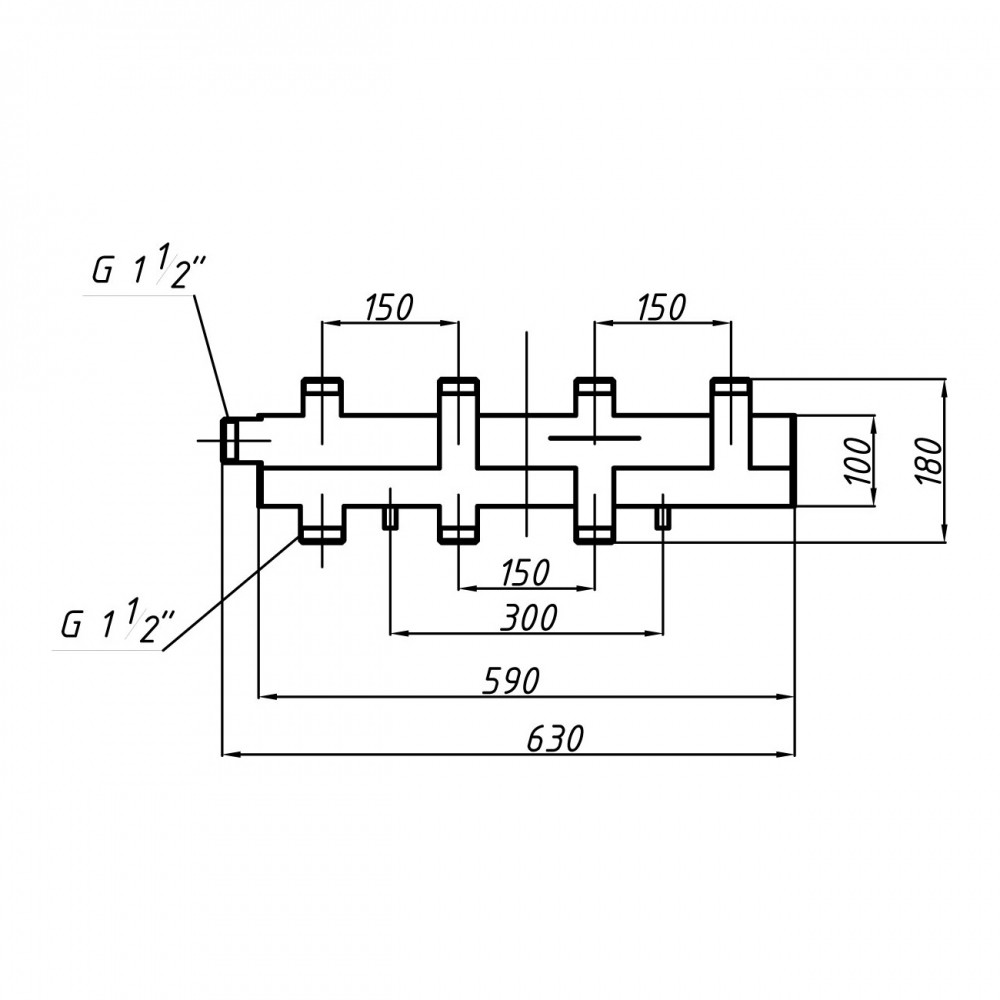

Boiler inlet: 2"
Drain and air vent outlets: 1/2"
Top outlet: 1 ¼"
Side outlet: 2"
Max pressure: 12 bar
Number of contours: 2+1
