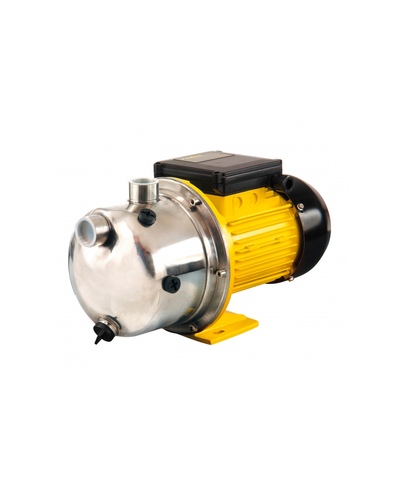

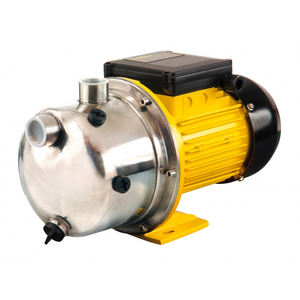

JS rudes JS110

self-actuating electric pumps

12 MONTH WARRANTY

Limitation

• total mineralization of water: no more than 1500 g/m³
• pH value: 6.5 ... 9.5
• instead of mechanical houses: no more than 0.01%
• maximum particle size: no more than 0.2 mm
• maximum core temperature that can be pumped: +40°С

Design characteristics

• monoblock horizontal with one impeller
• pump chamber housing made of stainless steel AISI 304
• working wheel - centered, closed type, made of stainless steel AISI 304
• insertion of a high-grade technopolymer NORYL into the pumping chamber of a vuzol ejector (diffuser with a Venturi tube)
• combination shaft
• reinforced end - graphite / ceramics / NBR / AISI 304

Dvigun

• asynchronous double-pole with squirrel-cage rotor, with
  Key words: Surface electric pumps, JS
  Maximum tightness: 1050
  Maximum pressure: 50
  Maximum productivity: 3.4
  Minimum heating temperature: 1
  Maximum temperature when heated: 40
  Optimal pressure: 35.1
  Outlet diameter: G1-B
  Optimal productivity: 1.8
  Maximum size of patches: 0.2
  Inlet pipe diameter: G1-B
  Installation height: 8
