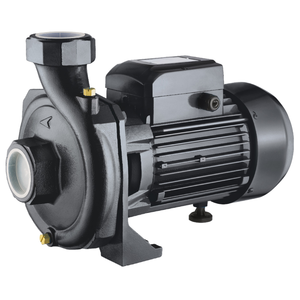

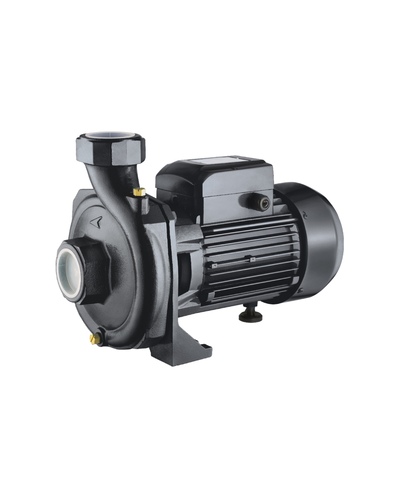

HPF Sprut HPF550

centrifugal electric pumps

24 MONTH WARRANTY

Limitation

• medium: water or other mediums similar to water in terms of thickness and chemical activity
• complete mineralization of water, no more than 1500 g/m³;
• indicator pH 6.5 – 9.5
• instead of mechanical houses, no more than 0.1%
• maximum size of parts, no more than 0.2 mm
• maximum ambient temperature +60 °C
• maximum core temperature +40 °C
• maximum working vice: 0.6 MPa (6 bar)

Design characteristics

• monoblock horizontal with one impeller
• pump chamber housing with chavun
• rotating wheel - centrifugal, closed type, made of brass
• shaft made of stainless steel AISI 304
• reinforced end – graphite / ceramics / NBR / AISI 304
• cable kits

Key words: Surface electric pumps, HPF
Rotor type: dry
Maximum tightness: 2100
Maximum pressure: 30
Maximum productivity: 33.1
Minimum heating temperature: 1
Maximum temperature when heated: 60
Optimal pressure: 21.1
Outlet diameter: G2-B
Optimal productivity: 18.1
Maximum size of patches: 0.2
Inlet pipe diameter: G2-B
Placement type: surface
Water type: pure water
Principle of action: central
Type of pipe connection: thread
Installation height: 7
