All-season solar system: SC-LH2-10 vacuum solar collector

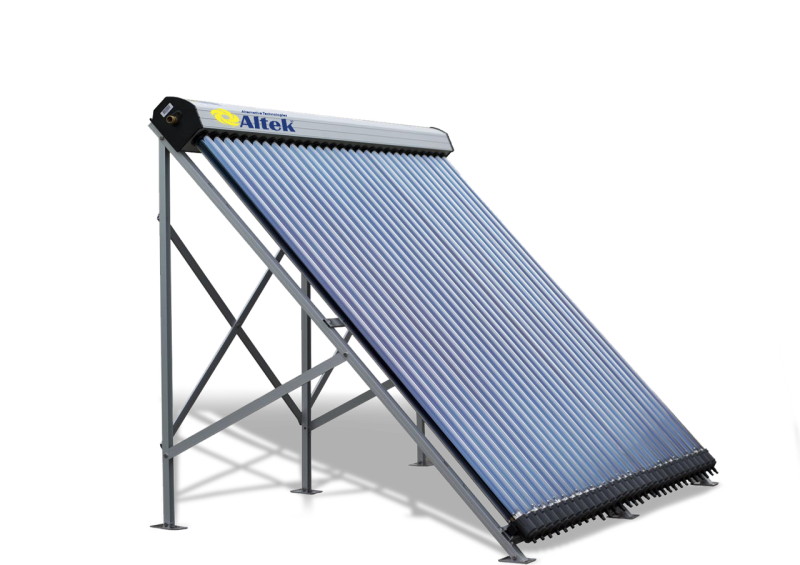

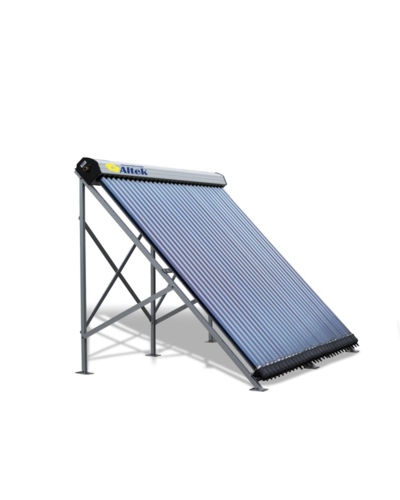

SC-LH2-10 solar vacuum collector with a frame for a flat roof, a 14mm Heat Pipe condenser tube

A selective coating on the inner surface of the evacuated tubes facilitates the conversion of solar energy into thermal energy, followed by heat transfer to the heat-conducting rods through aluminum fins. The liquid inside the heat-conducting rods is converted into vapor, which rises to the condenser. The heat is then passed through a heat exchanger, where the vapor is converted into liquid, returning to the bottom (base) of the heat-conducting rod.

Heat is transferred to the coolant (antifreeze) through a copper heat-conducting rod. This heat transfer to the fluid ensures continuous circulation as the solar collector is heated by the sun's rays.

The Altek vacuum collector shows excellent results on cloudy days because the tubes are capable of
Keywords: All-season heliosystem: Solar vacuum collector SC-LH2-10, Solar systems, Alternative energy sources, All-season heliosystem: Solar vacuum collector SC-LH2-10, solar collector
Country of origin: China
Collector type: Vacuum
Number of tubes: 10
Recommended tank capacity, l: 95-110
