 →  →  → Polycrystalline solar module ALM-150P

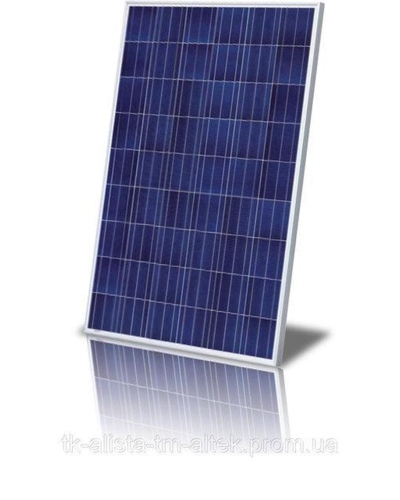

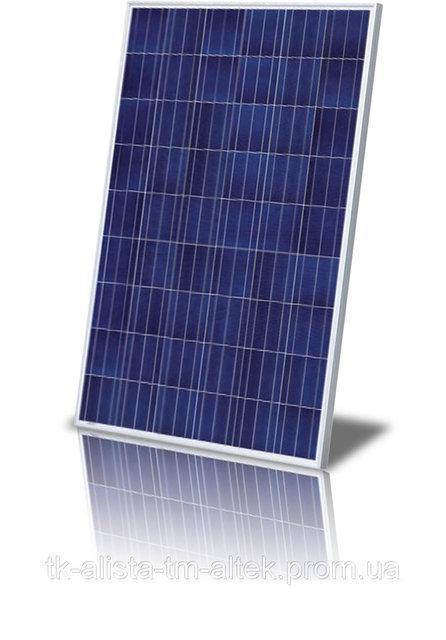

Polycrystalline solar module ALM-150P

Similar Products:
Article: 000024260

2991.55грн

In Stock

Order
in one click

Current at maximum power, A: 8.24 Short-circuit current, A: 8.73 Short-circuit current: 8.73 A Sealant: EVA Frame: Anodized aluminum alloy Windshield: Low iron tempered glass Operating temperature, °C: from -40° to +80°C Element type: Polycrystal Maximum voltage in the network, V: 600 Panel type: Polycrystalline Dimensions, mm: 1482x676x35 Weight, kg: 11.5 Weight: 11.5 kg Maximum power, W: 150 Number of elements: 36 4x9 Power: 150 No-load voltage, V: 22.6 Country of manufacture: China Voltage: 18.21 B Voltage at maximum power, V: 18.21 Open-circuit voltage: 22.6 V

Reviews: 0
Warranty:specify
Warranty Terms
Why Kotel-Prom?

  • All products are certified

  • Quality first

  • Return within 14 days

  • Warranty on all products

Delivery options:

  • Self-pickup(map)

  • Courier delivery in Kharkiv

  • Delivery across Ukraine

Payment methods

  • Cash on delivery

  • Non-cash payment

  • Bank transfer to card

  • Bank transfer to current account

The ALM-150P polycrystalline solar module offers 150 watts of power and operates at 12 volts. Manufactured using modern equipment and high-quality materials, the modules comply with IEC 61215:1993, guaranteeing excellent electrical performance and a 25-year service life. They feature IP 65 moisture resistance, easy connection, and a modern design.


Keywords: Polycrystalline photomodule ALM-150P, Solar photomodules (batteries), Solar photomodules and components, Alternative energy sources, Polycrystalline photomodule ALM-150P, solar photos
Country of origin: China
Weight: 11.5 kg
Voltage: 18.21 V
Power: 150
Weight, kg: 11.5
Dimensions, mm: 1482x676x35
Open circuit voltage: 22.6 V
Panel type: Polycrystalline
Short circuit current: 8.73 A
Frame: Anodized aluminum alloy
Element Type: Polycrystalline
Operating temperature, °C: from -40° to +80°C
Permissible power deviation,%: ±3
Short-circuit current, A: 8.73
Front glass: Low iron tempered glass
Maximum power, W: 150
Open circuit voltage, V: 22.6
Current at maximum power, A: 8.24
Maximum network voltage, V: 600
Sealant: EVA
Voltage at maximum power, V: 18.21
Number of elements: 36 4x9
