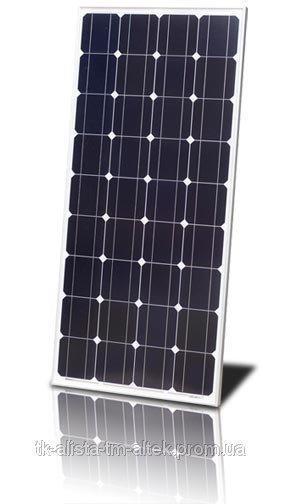

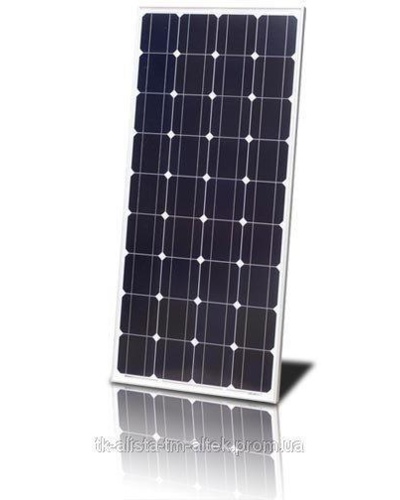

Monocrystalline solar module ALM-250 MV

The ALM-250 MV monocrystalline solar module (monocrystalline solar module) is black and can generate energy with a nominal power of 250 W and is designed for use in 24 V DC systems. The solar panel is a photovoltaic generator that converts light into electrical energy. The monocrystalline solar panel consists of textured tempered glass with hermetically laminated monocrystalline silicon photovoltaic cells, enclosed in an aluminum frame with an anti-corrosion coating. The panel is completely black. The ALM-250 MV monocrystalline solar panels can be connected in either series or parallel.

Keywords: Monocrystalline photomodule ALM-250 MV, Solar photomodules (batteries), Solar photomodules and components, Alternative energy sources, Monocrystalline photomodule ALM-250 MV, solar
Country of origin: China
Weight: 18.5 kg
Voltage: 30.49 V
Power: 250
Weight, kg: 18.5
Dimensions, mm: 1640x992x40
Open circuit voltage: 38 V
Panel type: Monocrystalline
Short circuit current: 8.78 A
Frame: Anodized aluminum alloy
Element type: Single crystal
Operating temperature, °C: from -40° to +80°C
Permissible power deviation,%: ±3
Short-circuit current, A: 8.78
Front glass: Low iron tempered glass
Maximum power, W: 250
Open circuit voltage, V: 38
Current at maximum power, A: 8.2
Maximum network voltage, V: 1000
Sealant: EVA
Voltage at maximum power, V: 30.49
Number of elements: 60 6x12
